Offer sheet
Nº 379356

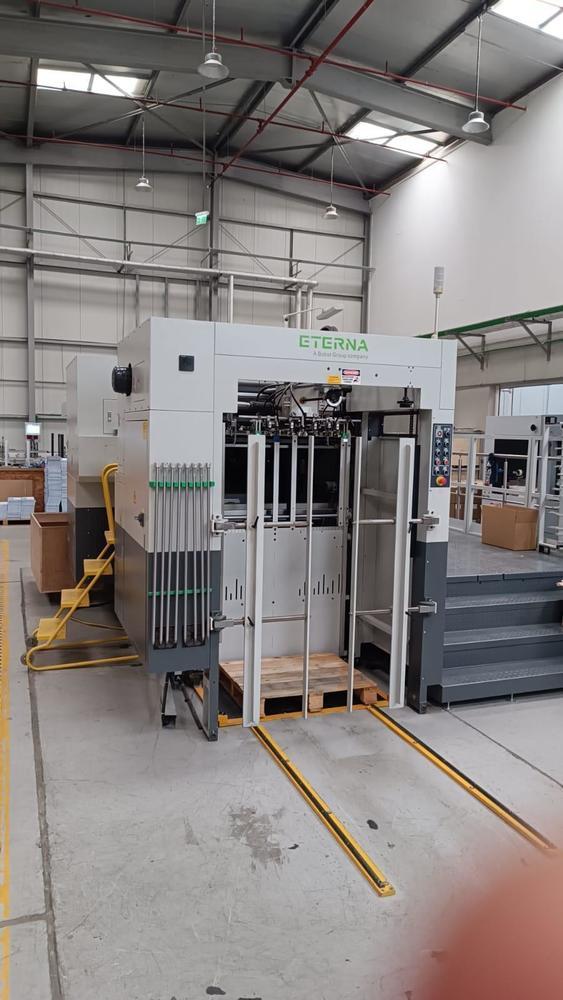

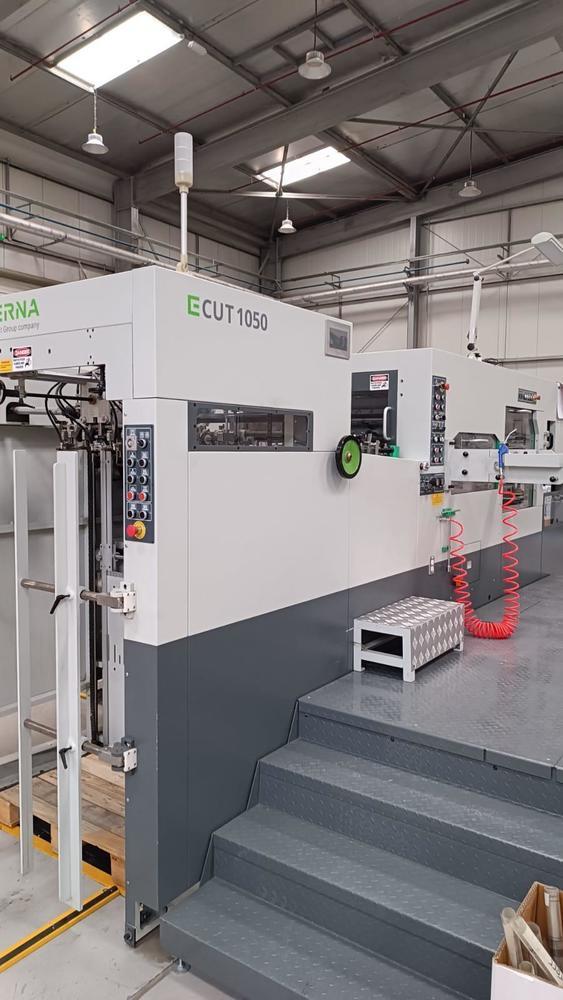

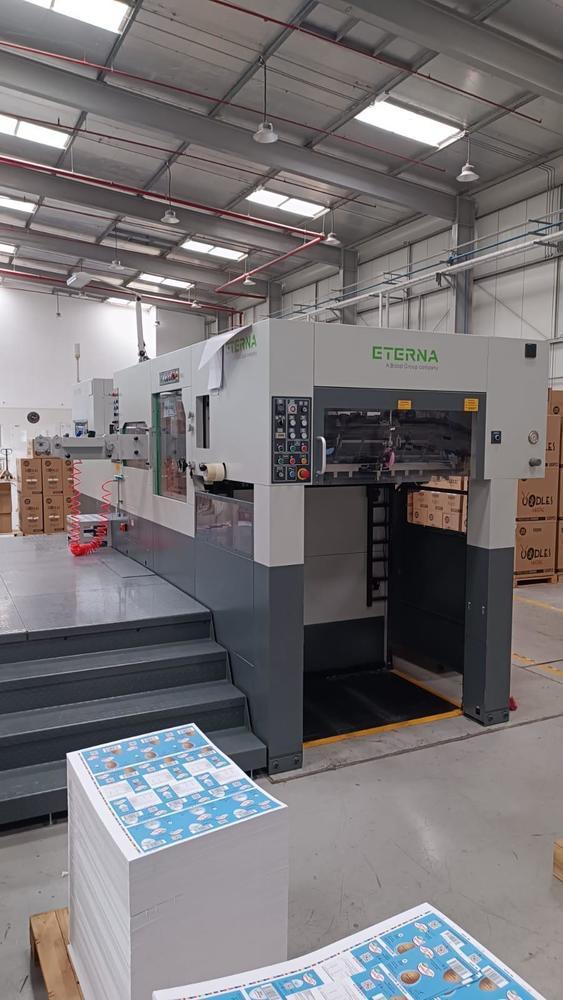

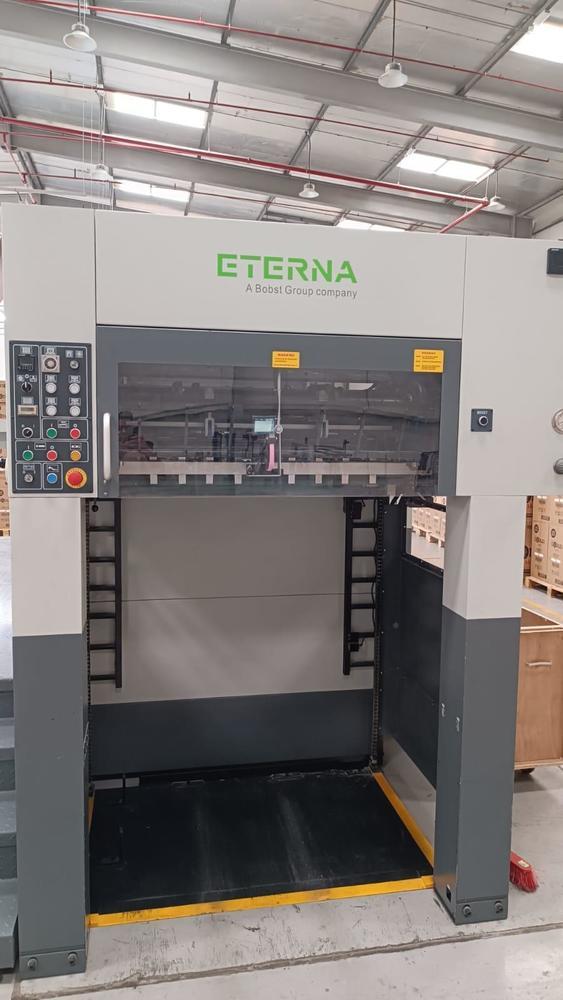

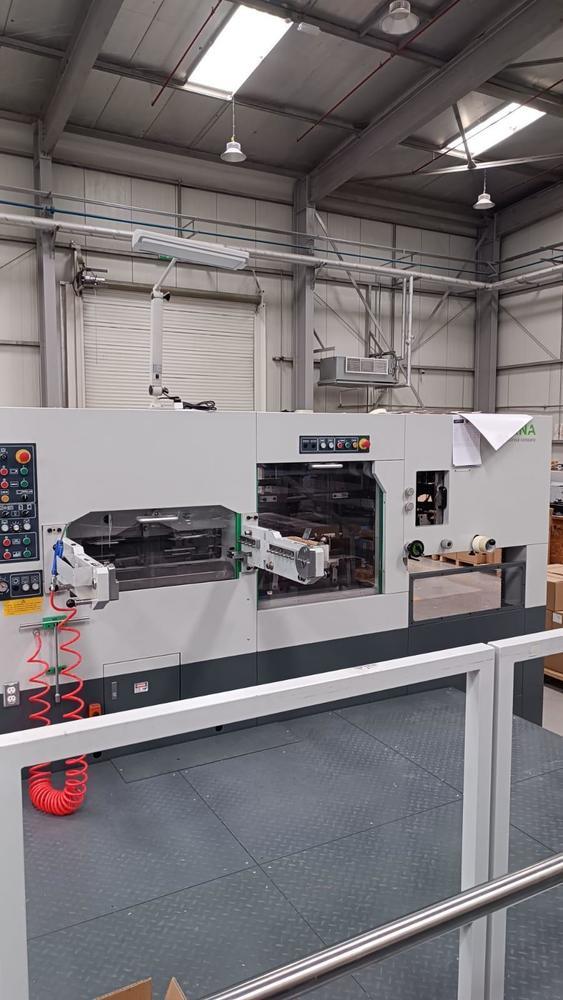

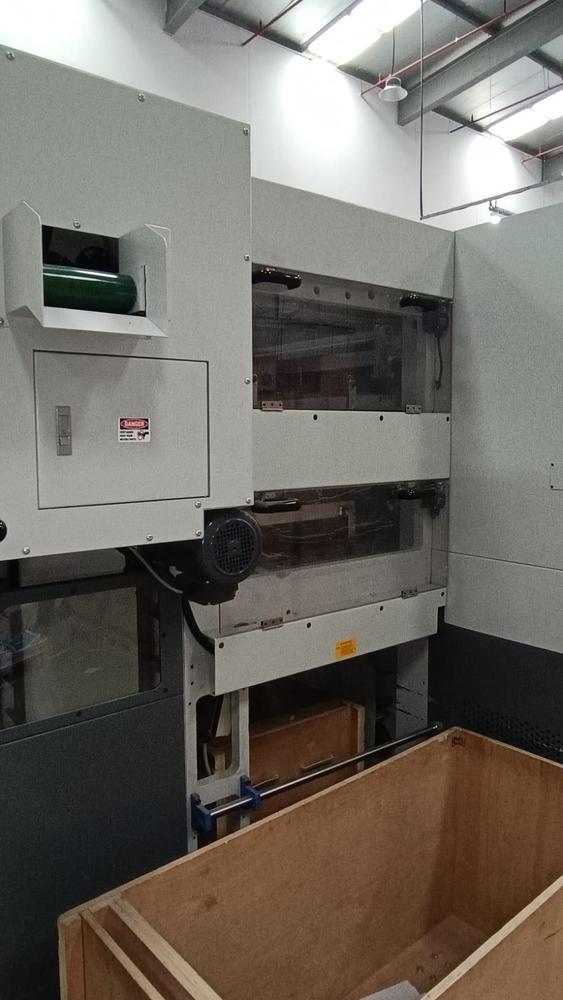

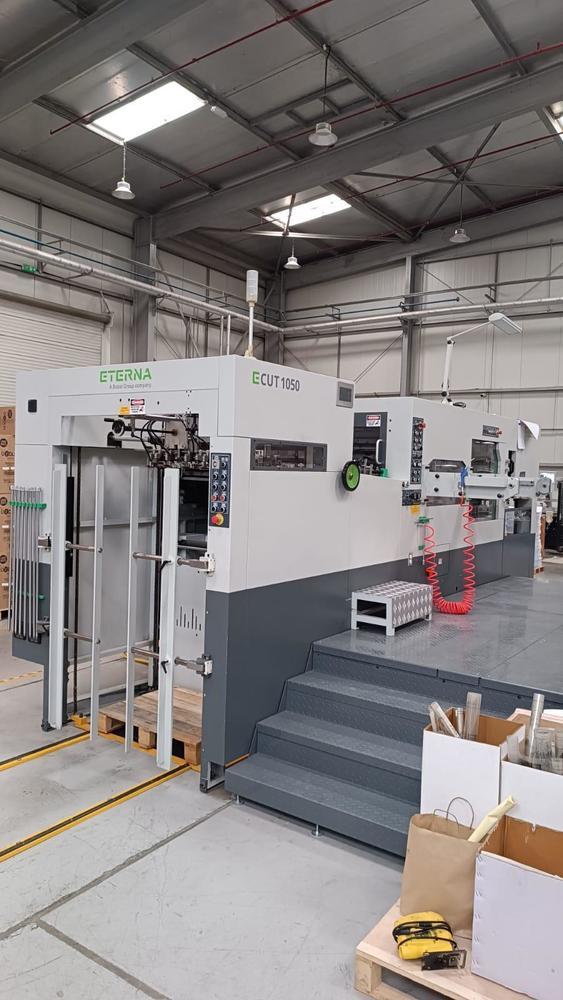

Die-cutter (flatbed)
BRAUSSE ETERNA ECUT 1050 E from 2022
Key data
Offer
379356
Year
2022
Manufacturer
BRAUSSE ETERNA
Model
ECUT 1050 E
Condition
Very good
Availability
Immediately
Condition
01Under power
02In production
03Complete and working
04Inspection possible
Description
Speed & Performance: Up to 7,500 sheets/hour with non-stop feeder and delivery.
Precision Engineering: Up to 300 tons of cutting pressure with digital pressure display.

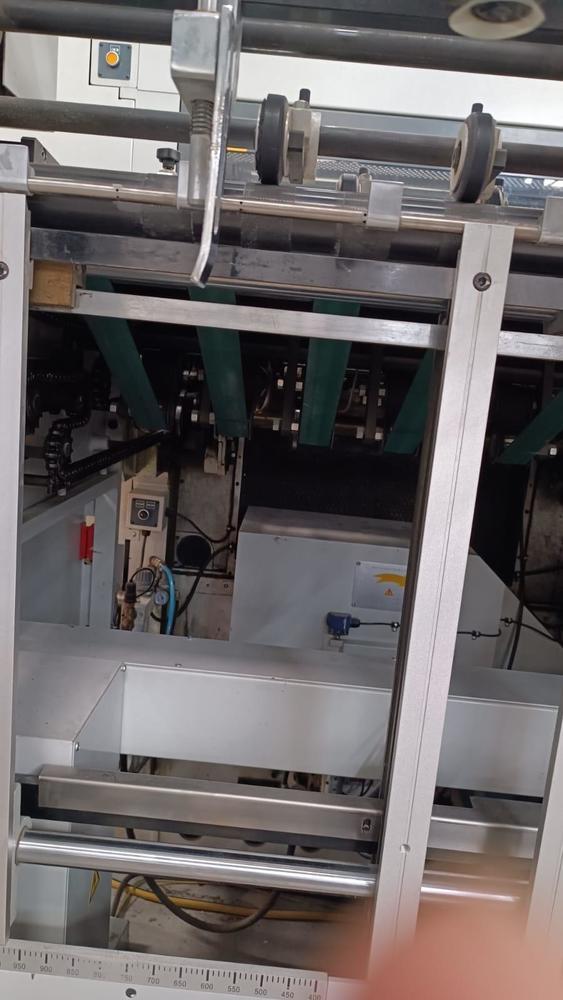

Advanced Stripping Section: Triple-action movement and easy tool mounting for quick job changes.

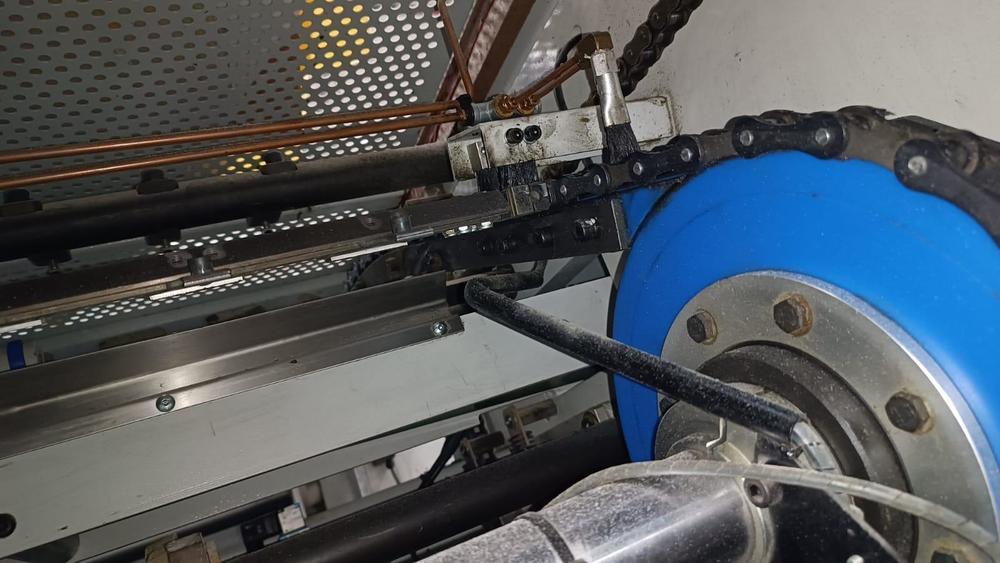

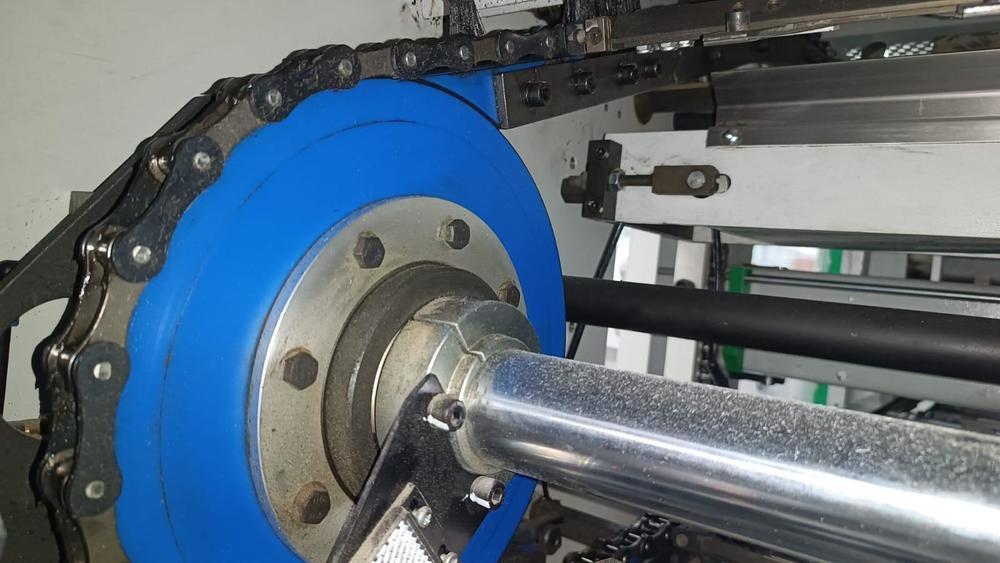

Durability & Reliability: Built with high-grade alloy steel and a 3-cam index gripper system.

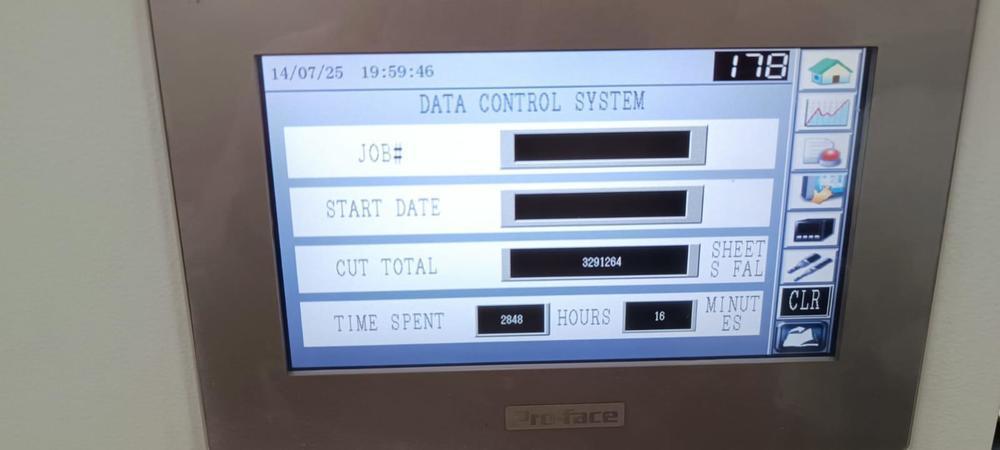

User-Friendly & Safe: Intuitive interface, safety sensors, emergency stop buttons, and sample inspection system.
Maximum paper size: 1050 x 750 mm
Minimum paper size: 400 x 360 mm
Maximum die-cutting range: 1040 x 720 mm (can cut to 730mm when the quick clamp of the plate frame is removed)
Frame inner diameter: 1080 x 745 mm
Die cut steel plate size: 1080 x 736 mm
Applicable paper range: 80~600g/m² cardboard, corrugated cardboard thickness <4mm
Minimum scrap width: 8 mm (depending on the arrangement of die-cut products, paper factors and operating factors)
Maximum mechanical speed: 7500 times/hour (depending on the arrangement of die-cut products, paper factors and operating factors)
Maximum cutting force: 300 tons
Total electricity consumption: 19kw
Net weight: 14.5 tons
Overall dimensions of the machine: 6064 x 4049 x 2030 mm (length x width x height)
Precision Engineering: Up to 300 tons of cutting pressure with digital pressure display.
Advanced Stripping Section: Triple-action movement and easy tool mounting for quick job changes.
Durability & Reliability: Built with high-grade alloy steel and a 3-cam index gripper system.
User-Friendly & Safe: Intuitive interface, safety sensors, emergency stop buttons, and sample inspection system.
Maximum paper size: 1050 x 750 mm
Minimum paper size: 400 x 360 mm
Maximum die-cutting range: 1040 x 720 mm (can cut to 730mm when the quick clamp of the plate frame is removed)
Frame inner diameter: 1080 x 745 mm
Die cut steel plate size: 1080 x 736 mm
Applicable paper range: 80~600g/m² cardboard, corrugated cardboard thickness <4mm
Minimum scrap width: 8 mm (depending on the arrangement of die-cut products, paper factors and operating factors)
Maximum mechanical speed: 7500 times/hour (depending on the arrangement of die-cut products, paper factors and operating factors)
Maximum cutting force: 300 tons
Total electricity consumption: 19kw
Net weight: 14.5 tons
Overall dimensions of the machine: 6064 x 4049 x 2030 mm (length x width x height)
Price
Upon request
EXW · Incoterms · bank transfer or L/C
