Offer sheet
Nº 374278

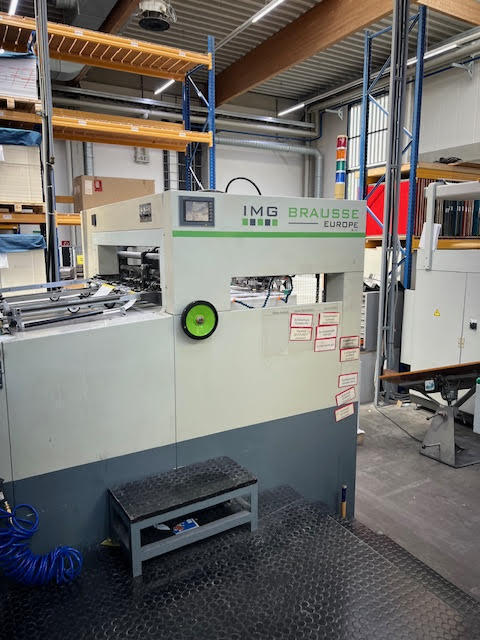

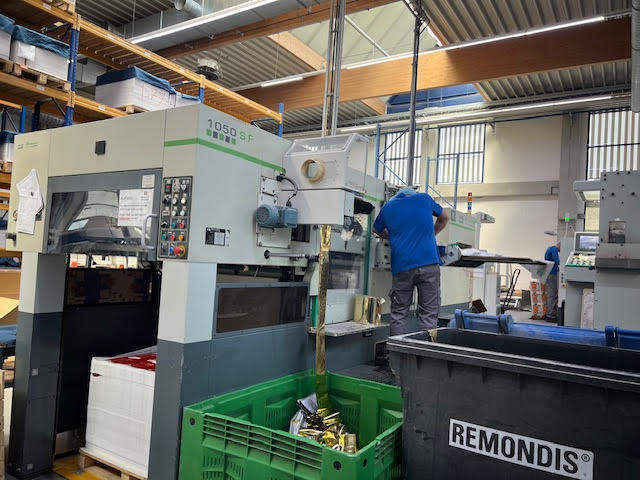

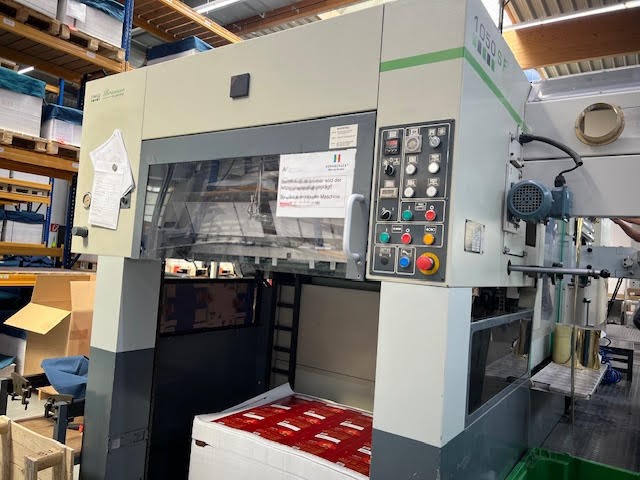

Die-cutter (flatbed)
BRAUSSE 1050SF from 2008
Key data
Offer
374278
Year
2008
Manufacturer
BRAUSSE
Model
1050SF
Condition
Very good
Availability
Immediately
Condition
01Under power
02In production
03Complete and working
04Inspection possible
Description
Foil Stamping / Cutting & Creasing Autoplaten
Feeder
Manual non-stop
Pull guide OS and OOS – push and pull
Electronic side lays
4 Electronic adjustable front lays
Electronic double sheet
Safety gates
Platen
12 zones, heated upper beam
1 Honeycomb chase and plate
Foil break detection (12 foils)
Seven high precision alloy grippers
High quality gripper chain
Torque limiter safety clutch to protect
the index driving system
Foiling
2 pull system
Maximum capacity foil diameter 200mm
Maximum rewinding foil diameter 400mm
Foil core diameter 1” or 3”
External foil brush system
Max stamping area 730 x 1020mm

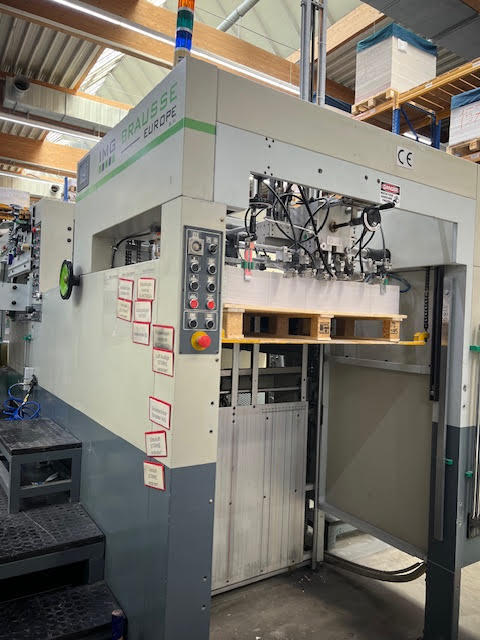

Machine Delivery
non-stop with curtain
Feeder
Manual non-stop
Pull guide OS and OOS – push and pull
Electronic side lays
4 Electronic adjustable front lays
Electronic double sheet
Safety gates
Platen
12 zones, heated upper beam
1 Honeycomb chase and plate
Foil break detection (12 foils)
Seven high precision alloy grippers
High quality gripper chain
Torque limiter safety clutch to protect
the index driving system
Foiling
2 pull system
Maximum capacity foil diameter 200mm
Maximum rewinding foil diameter 400mm
Foil core diameter 1” or 3”
External foil brush system
Max stamping area 730 x 1020mm
Machine Delivery
non-stop with curtain
Price
Upon request
EXW · Incoterms · bank transfer or L/C
Enquiries
WhatsApp +49 172 371 8407
https://www.roepa.com/offers/brausse-nikko-1050sf-from-2008-374278
Inspection under power welcome — dismantling, transport and commissioning arranged.
