Offer 369680
COMARME F2000 from 2018
Folding Box Gluing + Erecting Machines
Offer Details
| Offer Number: | 369680 |
|---|---|
| Brand: | COMARME |
| Model: | F2000 |
| Manufacturer | COMARME |
| Condition: | Like new |
| Year: | 2018 |
| Incoterm: | EX Works |
| Cylinders Condition: | damage_free |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | Immediately |
| Counter: | |
| Machine number: | |

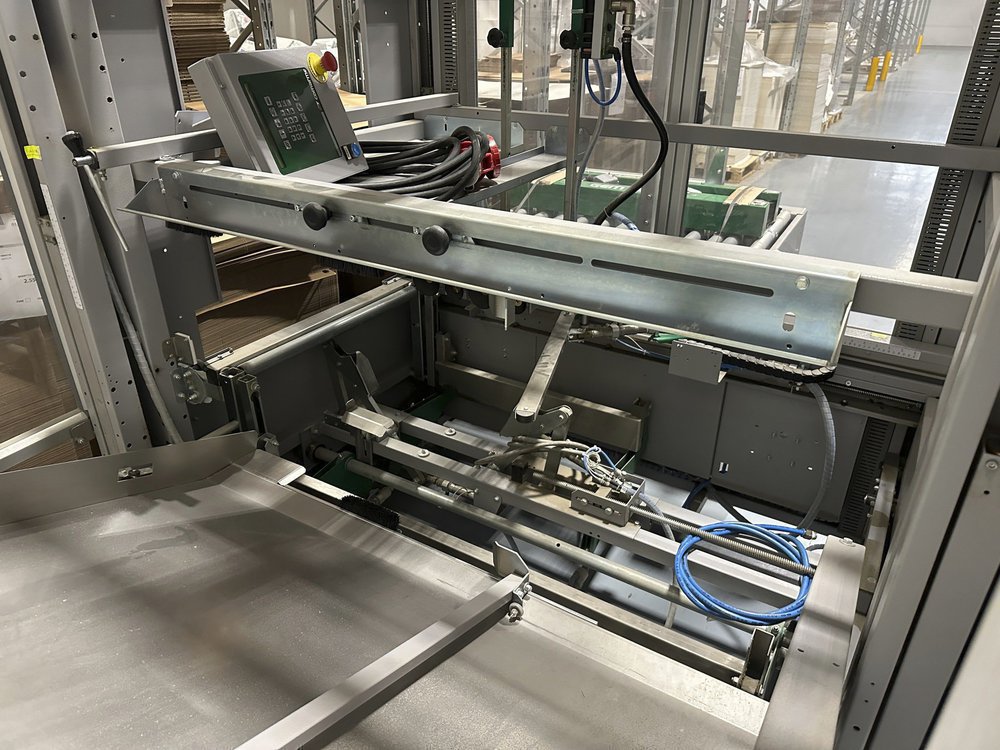

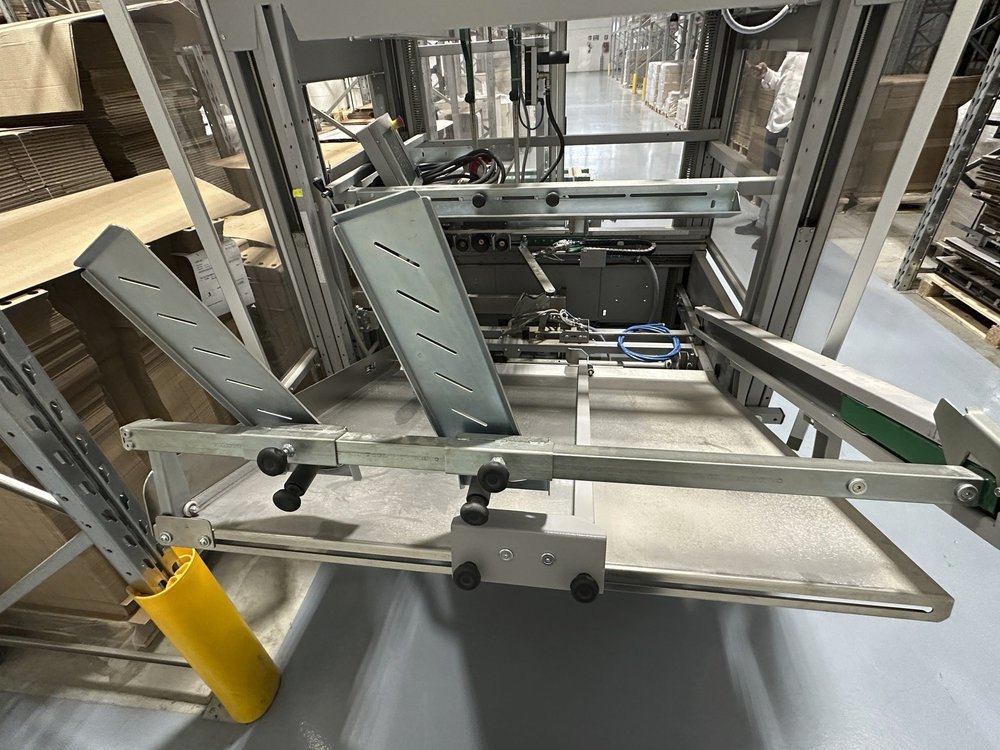

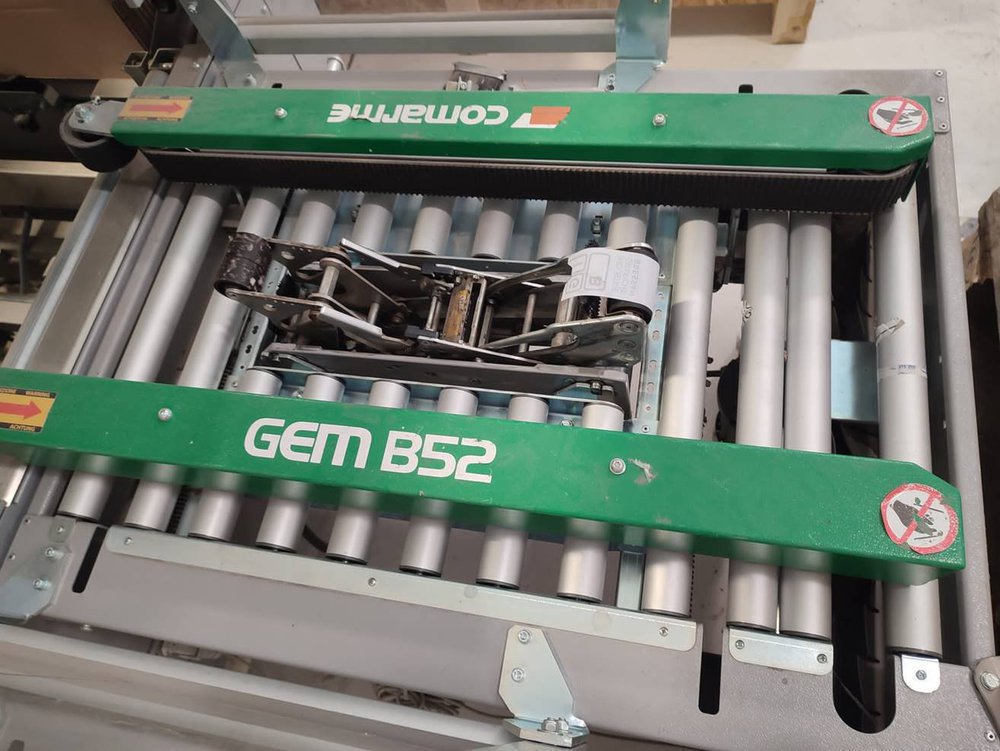

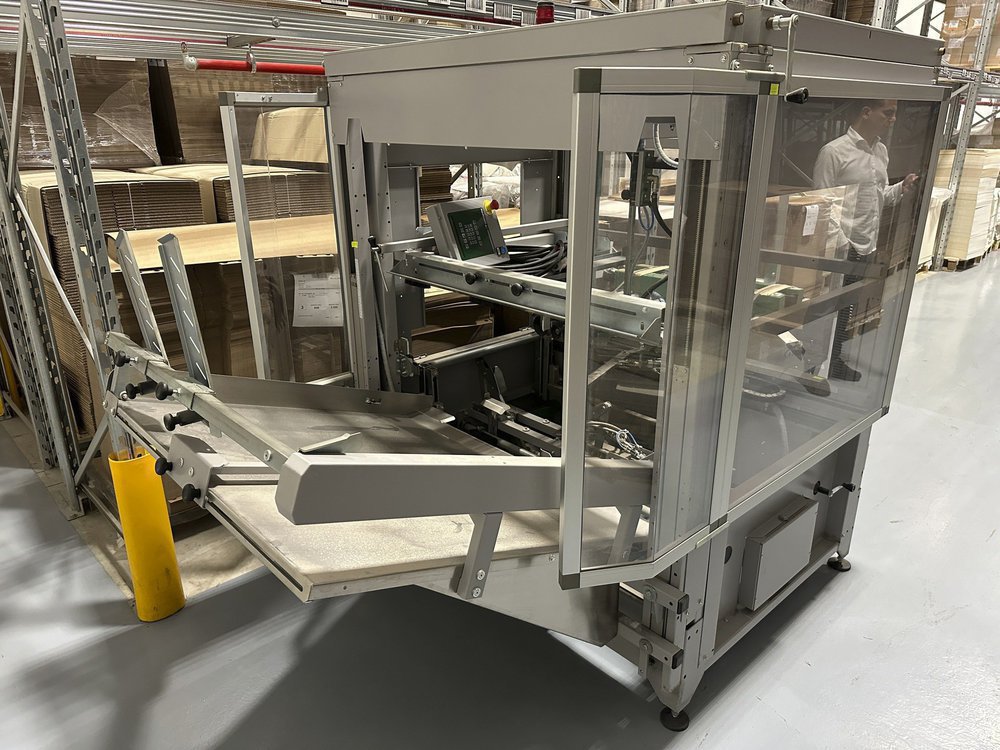

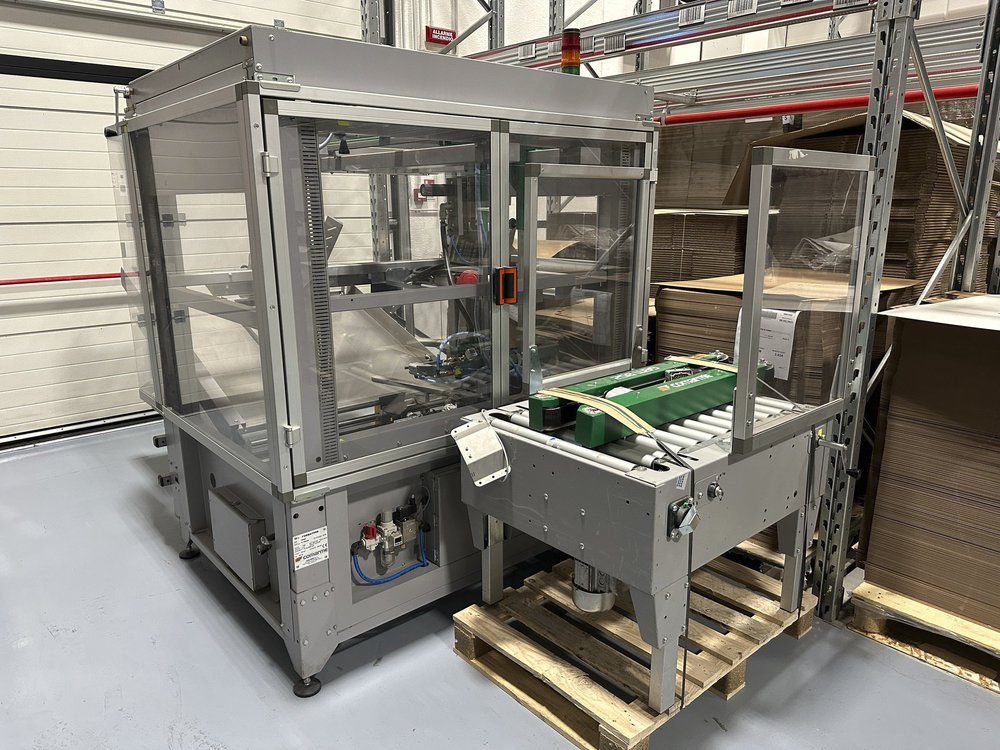

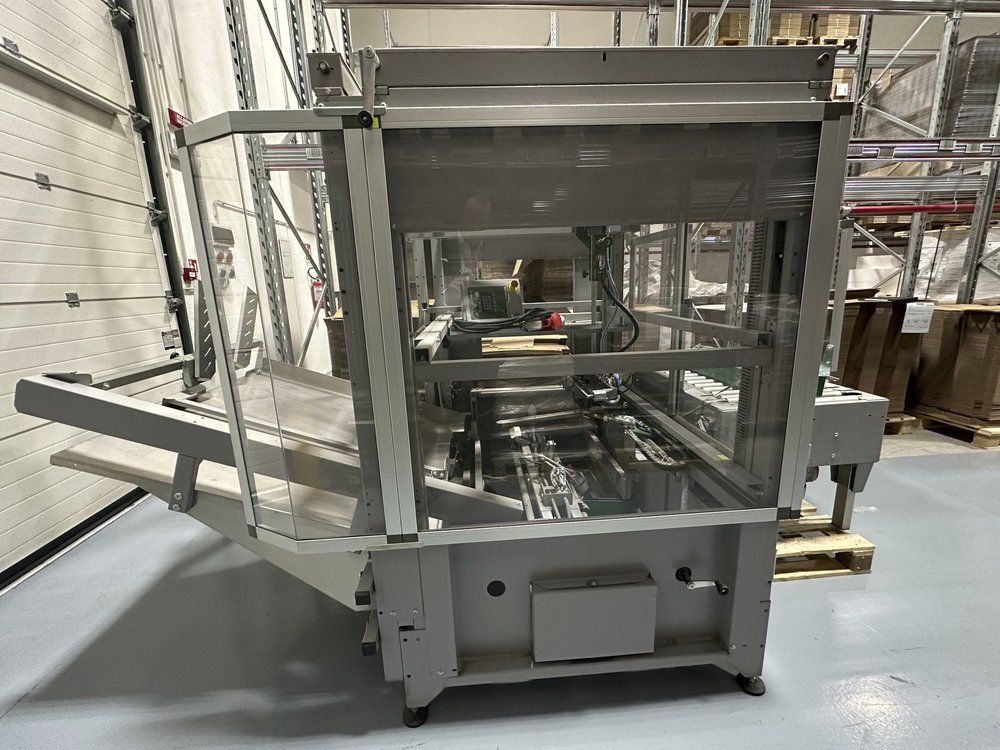

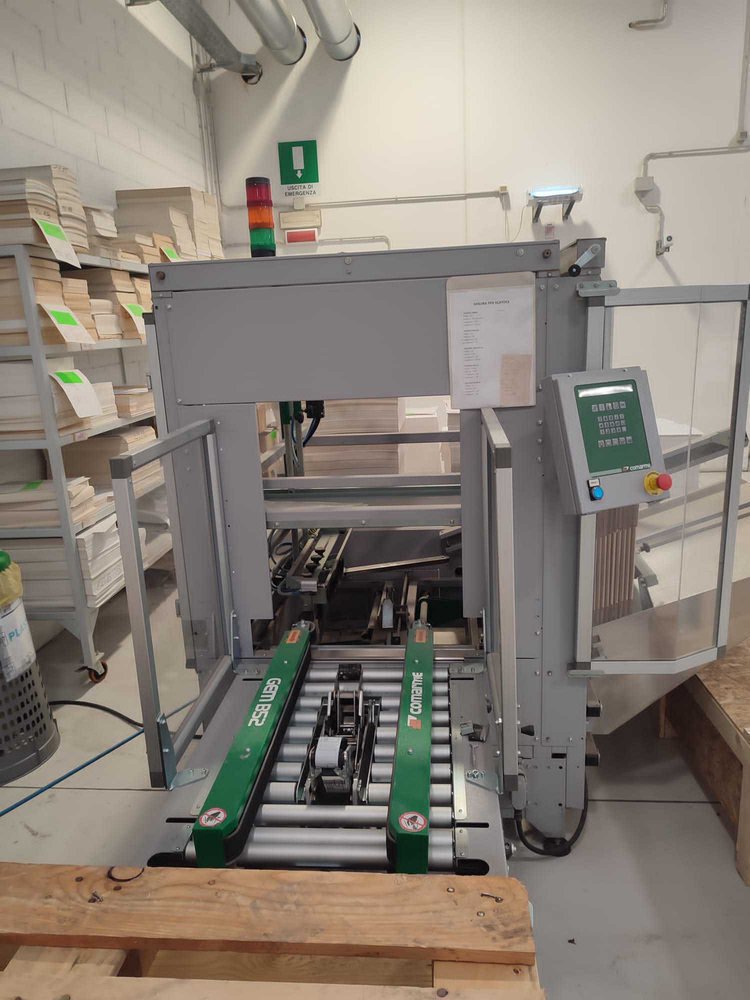

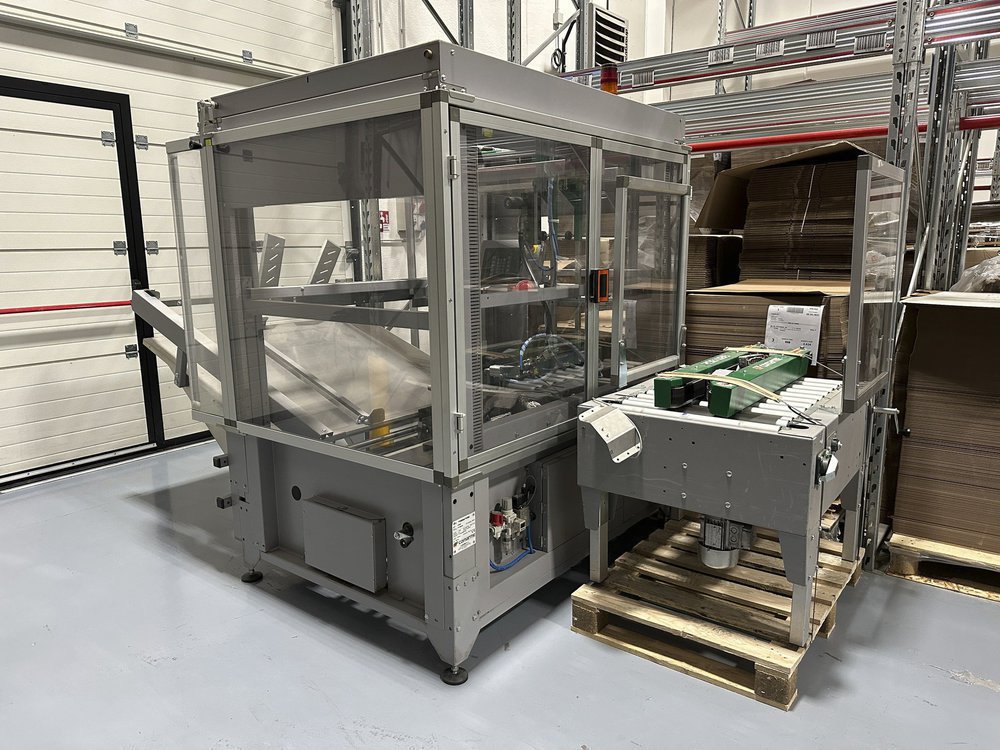

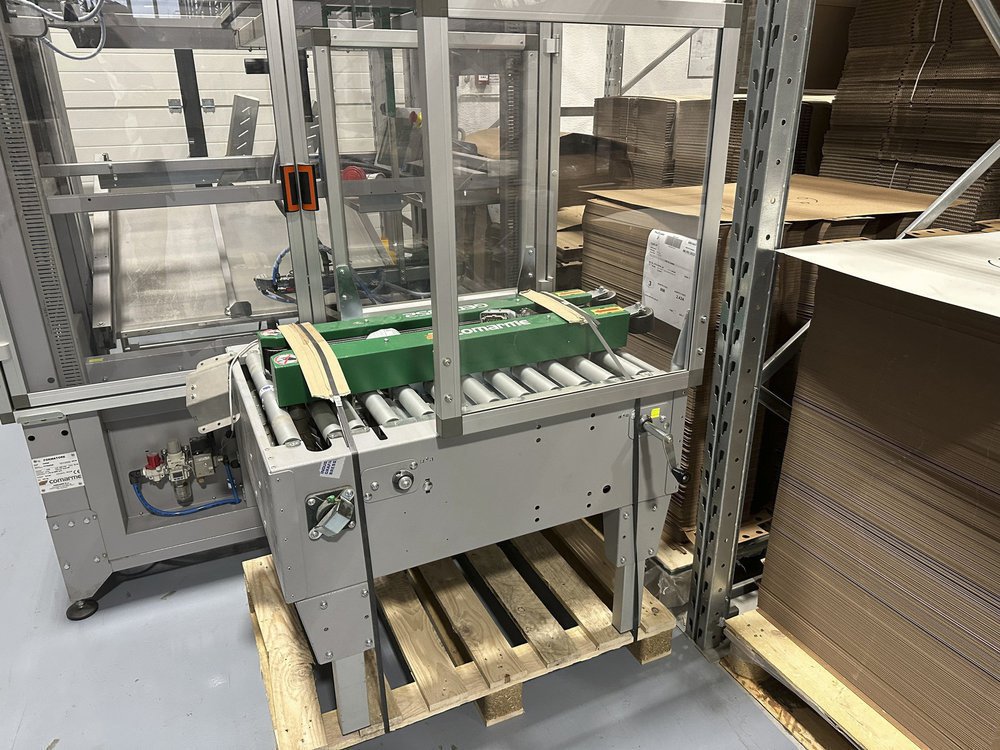

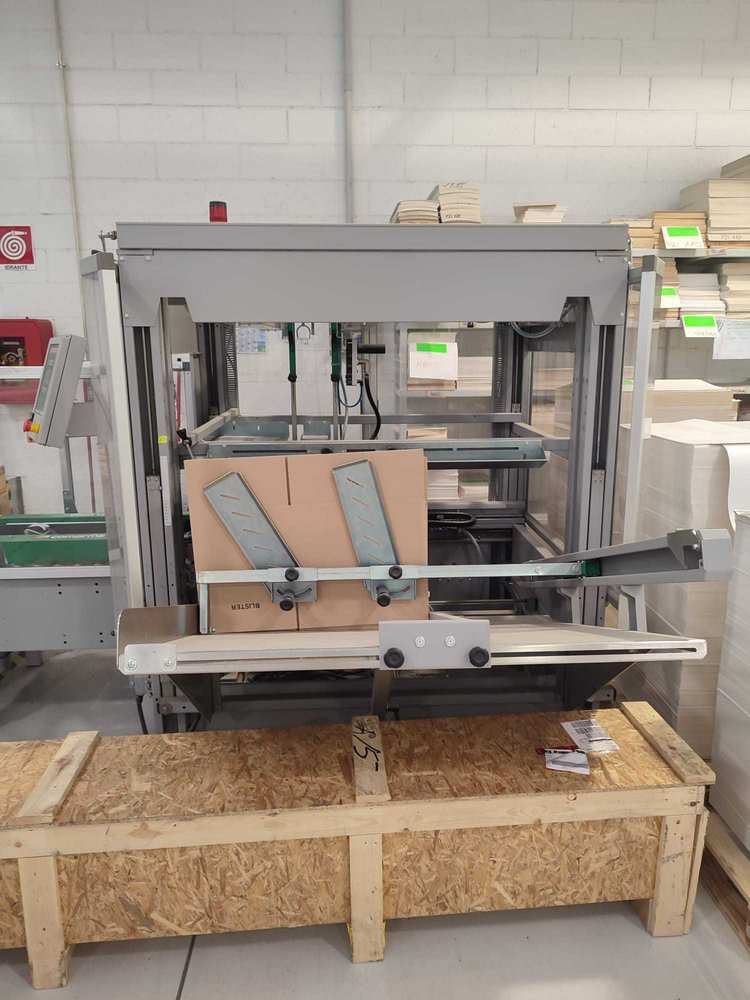

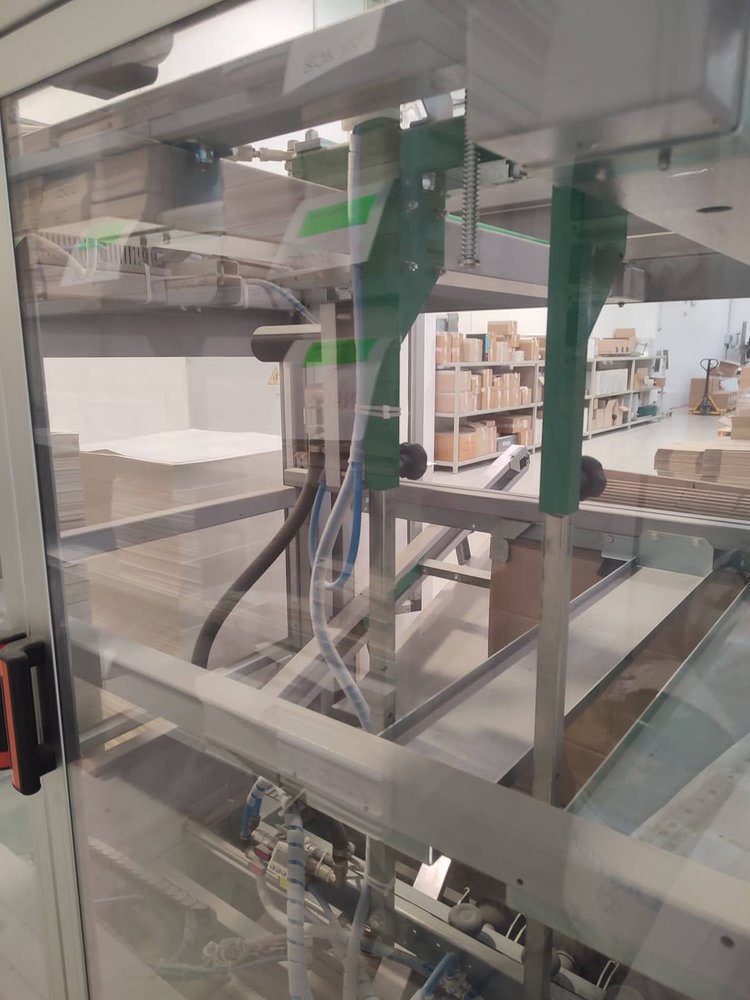

| Description: | Automatic carton erecting machine Mod. F2000 + GEM B52<>The case erector prepares the boxes with the 4 bottom flaps folded, taking them from the side magazine (STD - OPP)<>Bottom flaps are sealed by adhesive tape (GEM B52), by Hot Melt (HM B520+HM B52P) either by gummed paper tape (GEM B520-GP) and sent to the filling point<>Venturi system suction device for boxes withdrawal<>Suction device of double suction feed for strong boxes, on request <>Boxes dimensions regulation manual knob<>Pneumatic system for boxes Evacuation<>Digital Kite Touch Screen panel 7”<>Photocell kit to control the machine cycle<>CE safety protections: top & bottom covers, curtain cover on box loader side |
Technical details
| Box dimensions (max) | 600x500x500 mm (LxWxH) |
|---|---|
| Box dimensions (min) | 220x100x100 mm (LxWxH) |
| Average production | 840 boxes/hour |
| Box loader unit capacity | 110 boxes |
| Max air pressure allowed | 6 bar |
| Air consumption cycle box | 22,0 NI |
| Venturi vacuum unit | 25m3/h 700mm HG |
| Installed power | 0,40 kW |
PRICE: Upon request
