DEV-TENSOR

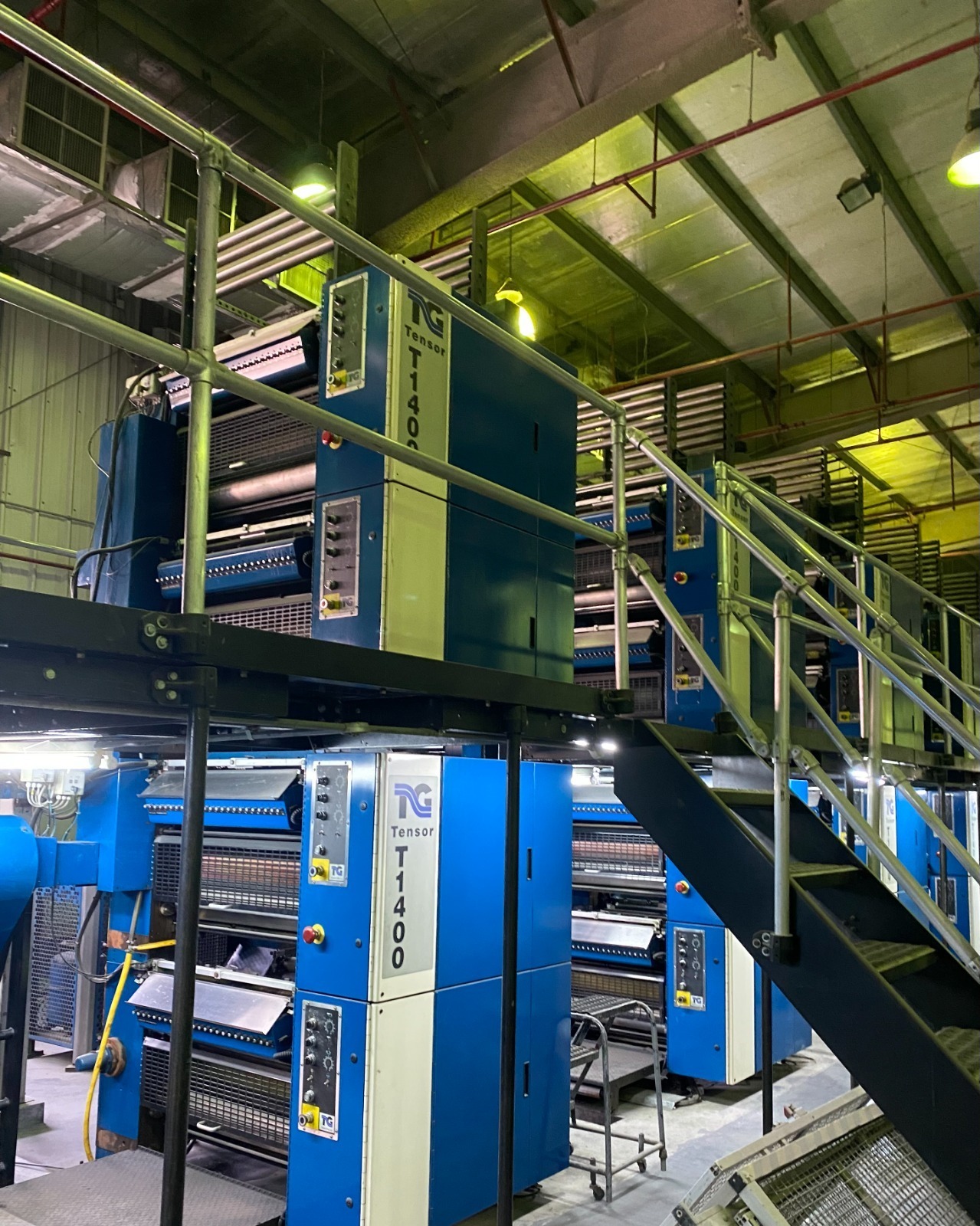

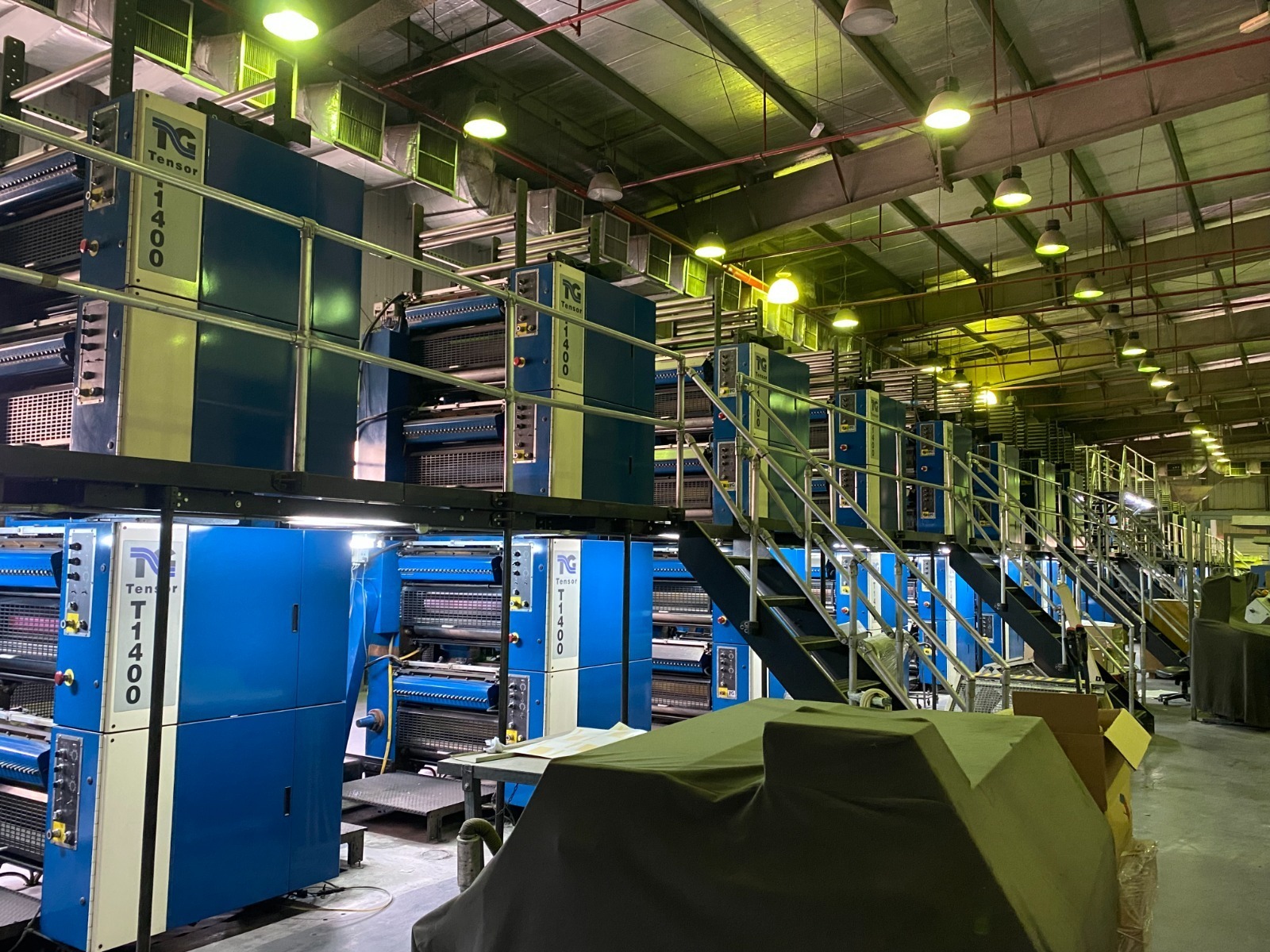

Offer 380005, a DEV-TENSOR T 1400 (578) from 2006

Available

Combination Web (heat+cold set) · from 2006 · Offer 380005

Specification

Offer number
380005
Manufacturer
DEV-TENSOR
Model
T 1400 (578)
Year
2006
Counter
In production
Yes
Description
Remote Inking<>Brush Dampening<>Motorized Register, 1 Web of Heatset<>2 x Tensor H-50 Heavy-Duty Jaw Folder<>Quarter-folder<>16 Web capacity<>1:2:2 Folder geometry<>Reelstands<>18 x MEGTEC 134050SE Zero Speed Automatic Splicers<>Maximum Web Width: 40 inches<>Operating Speed: 1300 fpm<>Roll Diameter Capacity: 45 inches<>Maximum Roll Weight Capacity: 2,500 lbs<>SE Series Zero Speed Splicers<>17 x Tensor compact infeeds<>Twelve of the Towers are driven by a mechanical shaft<>Three of the Towers are driven by a unit shaftless drive system.<>3 x operating consoles<>Baldwin dampening systems<>4 x Baldwin Basic Liner 10.0<>4 x Baldwin model 226D<>EPG computer ink key control system<>Bay Window<>Coanda Plus 195 (5.0m) Web Drying System with 4-12” roll chill stands<>Chill Roll Stands<>WPC silicone applicator and E & L web guide mounted on the chill<>Betz Ink Supply System<>20 million impressions
Technical details
Cut-off
578 mm
Max. web width
960 mm
Printing unit(s)
15 x Tensor T-1400 Series 4-High Towers
Infeed
Megtec infeed with web guide
Offer details
Condition
Good
Country
Far East
Incoterm
EX Works
Under power
Yes
Still in production
Yes
Test possible
Yes
Complete and in working condition
Yes
