Offer sheet
Nº 382577
Folder gluer

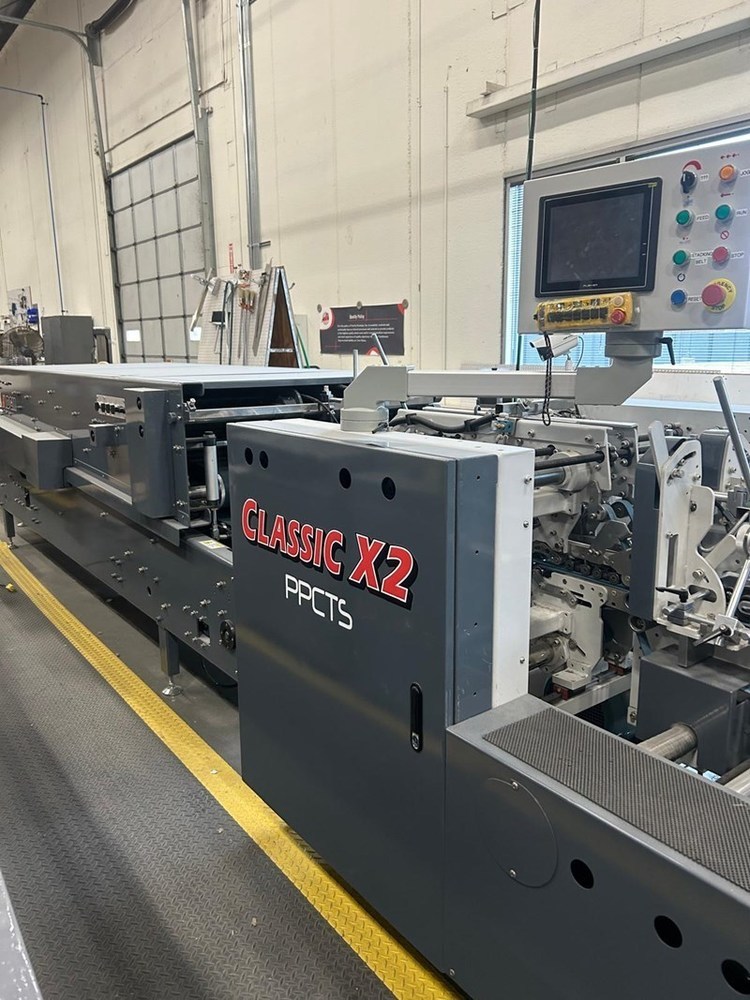

DGM SMARTFOLD 800SL CLASSIC X2-1715 from 2022
Key data
Offer
382577
Year
2022
Manufacturer
DGM
Model
SMARTFOLD 800SL CLASSIC X2-1715
Condition
Good
Condition
01Under power
02In production
03Complete and working
04Inspection possible
Description
with Leary System Automatic High-Speed folder Gluer
automatic folder gluer with standard configuration
for straight-line boxes with carton aligner,
pre-folding o f 1" and 3d creases,
including options listed on next page.
Suitable for solid board up t o 800 gsm and E, F & N flute
corrugated.
Independent servo driven feeder section, Side register section, Pre-folding section (2300mm),
First Crash lock bottom section (1700mm), Second Crash lock bottom section (1500),
Bump & Turn tooling for crash lock section, Lower gluing unit left side, Lower gluing unit right side,

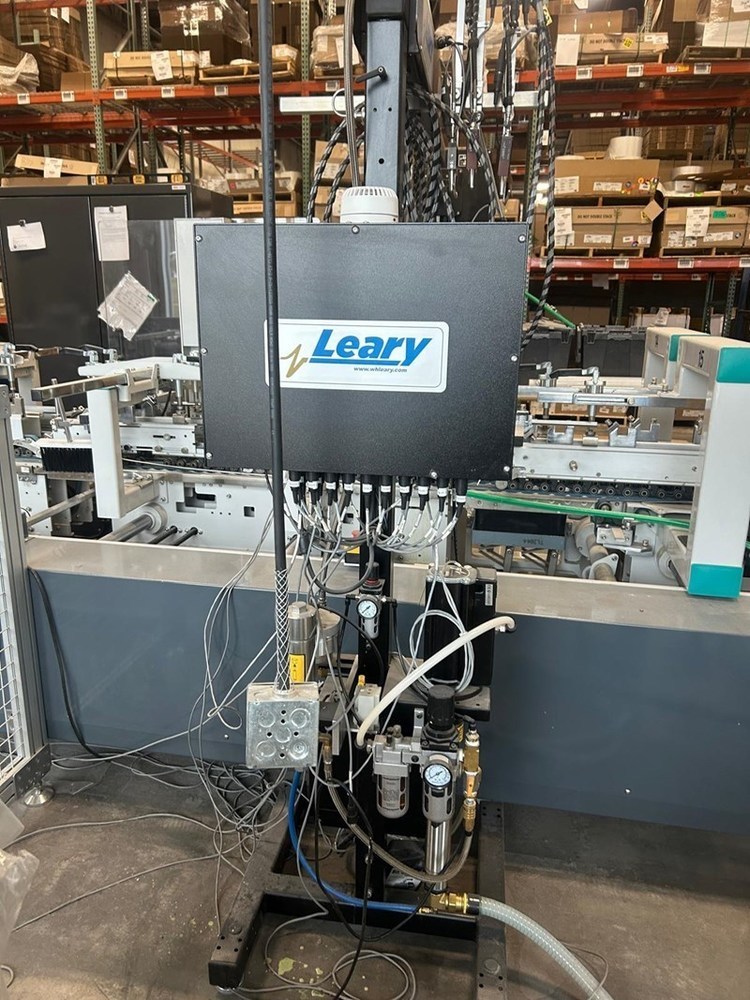

Uper glueing system, cold glue (Leary cold glue and quality control included), Plasm treatment system,
Folding and closing section (3000mm), Motorized Trombone section, Ejection system in trombone,
Pressure/Crushing rollers device, Motorized lower trombone arms, Pneumatic compression section (4000mm)
2.0 m Conveyor after Compression section, 4&6 corner device with 2 backfield axis , Extra 3rd backfield axis.
Loack bottom squaring device at conveyor, Intelligent version with Job recall, CD’s device, Pocket folder device,
Mini-box device, Z-fold attachment, compound fold attachment, LED display production. Power Transformer for
480VAC or 240VAC 3PH
Crash lock and straight line
4 + 6 point glue system
Double wall
automatic folder gluer with standard configuration
for straight-line boxes with carton aligner,
pre-folding o f 1" and 3d creases,
including options listed on next page.
Suitable for solid board up t o 800 gsm and E, F & N flute
corrugated.
Independent servo driven feeder section, Side register section, Pre-folding section (2300mm),
First Crash lock bottom section (1700mm), Second Crash lock bottom section (1500),
Bump & Turn tooling for crash lock section, Lower gluing unit left side, Lower gluing unit right side,
Uper glueing system, cold glue (Leary cold glue and quality control included), Plasm treatment system,
Folding and closing section (3000mm), Motorized Trombone section, Ejection system in trombone,
Pressure/Crushing rollers device, Motorized lower trombone arms, Pneumatic compression section (4000mm)
2.0 m Conveyor after Compression section, 4&6 corner device with 2 backfield axis , Extra 3rd backfield axis.
Loack bottom squaring device at conveyor, Intelligent version with Job recall, CD’s device, Pocket folder device,
Mini-box device, Z-fold attachment, compound fold attachment, LED display production. Power Transformer for
480VAC or 240VAC 3PH
Crash lock and straight line
4 + 6 point glue system
Double wall
Price
Upon request
Incoterms · bank transfer or L/C
