Offer sheet
Nº 381466
Dust extractors
HÖCKER POLYTECHNIK VAKUMOBIL JP250-L from 2014
Key data
Offer
381466
Year
2014
Manufacturer
HÖCKER POLYTECHNIK
Model
Vakumobil JP250-L
Condition
Good
Availability
S O L D
Condition
01Complete and working
Description

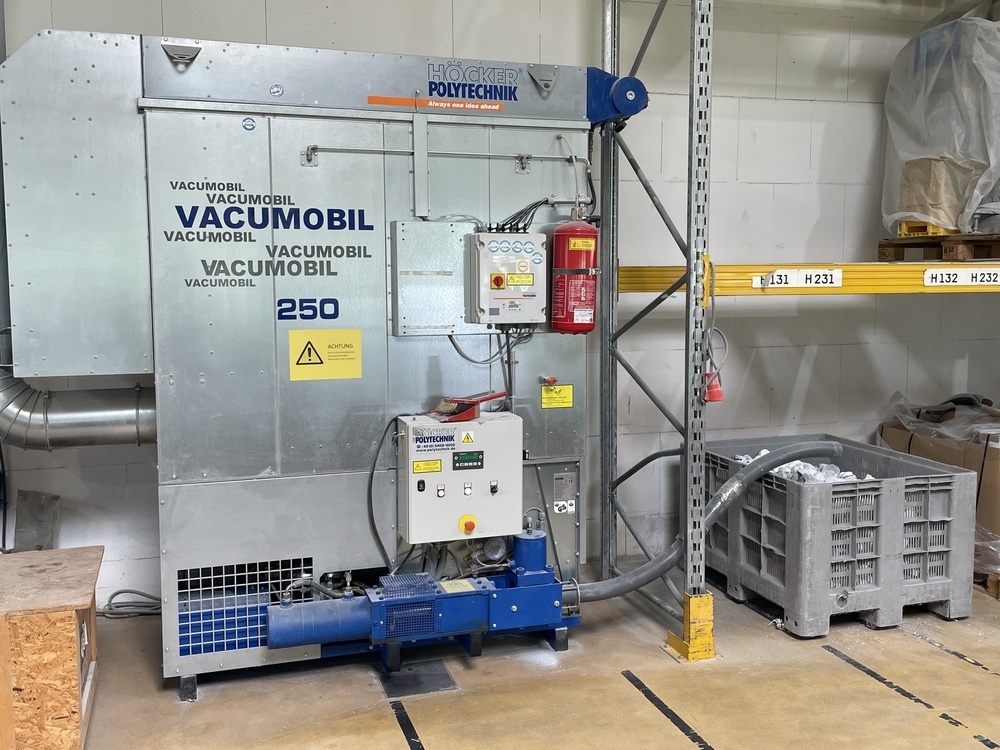

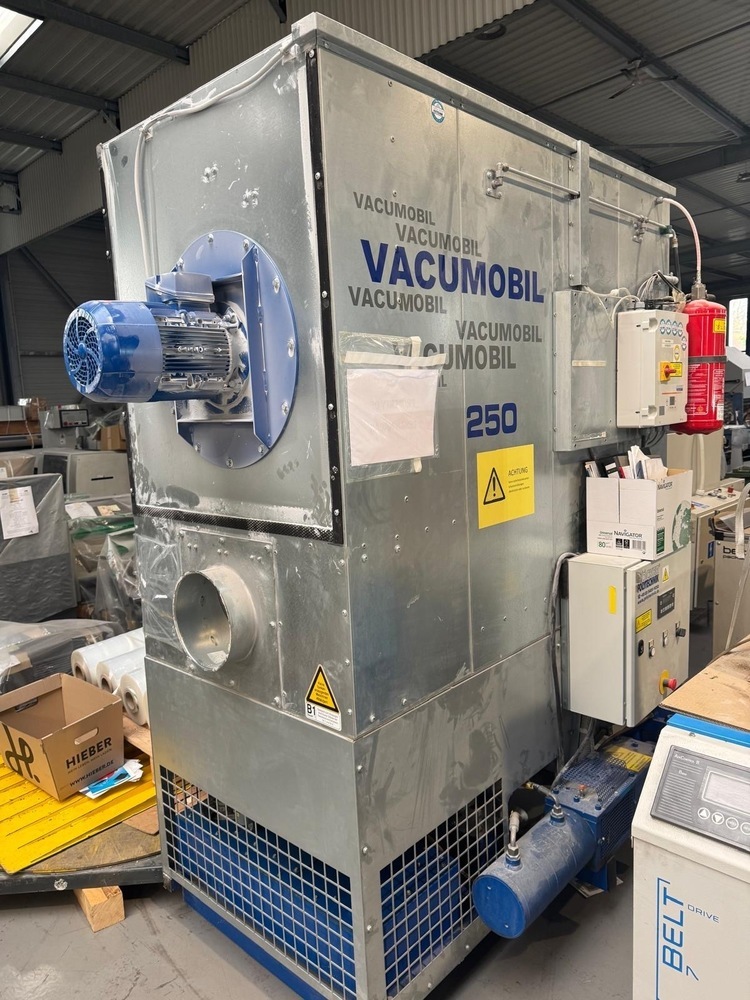

Höcker Polytechnik dust extraction
Vacumobil JP250-L
Vacumobil dust extractors serie 250
Deliver air volumes ranging 5,500 m³/h.
Certified Vacumobil systems from Höcker Polytechnik are ideal for the extraction of dust from one or multiple sources. Designed for airflow capacities to 5,500 m³/h, they are particularly well suited for small to medium-sized enterprises. Their compact design allows for flexible integration into a wide variety of working environments.
- pressure surge tested
-integragted fire protection
-vibration-based filter cleaning
- jet pulse (compressed air) filter cleaning
- full detector for dust collection bins
POWER
Efficiency class IE4 – Super Premium Efficiency
Rated motor power 5.5 kW / 400 V / 50 Hz (IE4)
Nom. Volume Flow (VNom) 3,535 m³/h at 20 m/s
Max. Volume Flow (VMax) 5,500 m /h
Vacuum generated at VNom 2) ≈ 3,100 Pa
Vacuum generated at VMax 2) ≈ 3,000 Pa
Vacuum generated at VNom 3) ≈ 2,800 Pa 7) ≈ 2,950 Pa 8)
Vacuum generated at VMax 3) ≈ 1,500 Pa 7) ≈ 2,200 Pa 8)
Maximum sound pressure level 1) ≤ 73 dB(A)
Suction connection diameter 250 mm
Discharge option: BrikStar CSD 4-0909
Vacumobil JP250-L
Vacumobil dust extractors serie 250
Deliver air volumes ranging 5,500 m³/h.
Certified Vacumobil systems from Höcker Polytechnik are ideal for the extraction of dust from one or multiple sources. Designed for airflow capacities to 5,500 m³/h, they are particularly well suited for small to medium-sized enterprises. Their compact design allows for flexible integration into a wide variety of working environments.
- pressure surge tested
-integragted fire protection
-vibration-based filter cleaning
- jet pulse (compressed air) filter cleaning
- full detector for dust collection bins
POWER
Efficiency class IE4 – Super Premium Efficiency
Rated motor power 5.5 kW / 400 V / 50 Hz (IE4)
Nom. Volume Flow (VNom) 3,535 m³/h at 20 m/s
Max. Volume Flow (VMax) 5,500 m /h
Vacuum generated at VNom 2) ≈ 3,100 Pa
Vacuum generated at VMax 2) ≈ 3,000 Pa
Vacuum generated at VNom 3) ≈ 2,800 Pa 7) ≈ 2,950 Pa 8)
Vacuum generated at VMax 3) ≈ 1,500 Pa 7) ≈ 2,200 Pa 8)
Maximum sound pressure level 1) ≤ 73 dB(A)
Suction connection diameter 250 mm
Discharge option: BrikStar CSD 4-0909
Price
Upon request
Incoterms · bank transfer or L/C
Enquiries
WhatsApp +49 172 371 8407
https://www.roepa.com/offers/hocker-polytechnik-vakumobil-jp250-l-from-2014-381466
Inspection under power welcome — dismantling, transport and commissioning arranged.
