Offer 381403
IDEAL 5221 from 2017
Paper Guillotine
Offer Details
| Offer Number: | 381403 |
|---|---|
| Brand: | IDEAL |
| Model: | 5221 |
| Manufacturer | IDEAL |
| Condition: | Good |
| Year: | 2017 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |

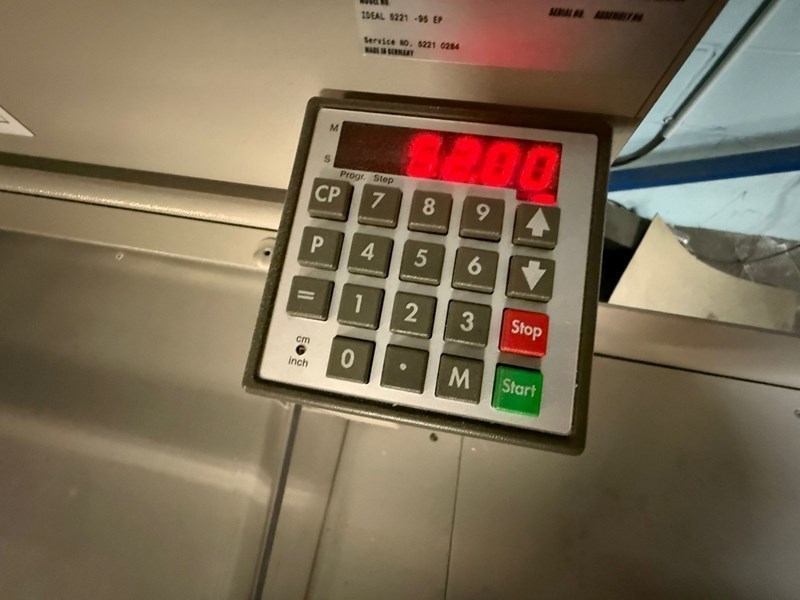

| Description: | Mod. 5221 95 EP<>Electro-mechanical blade and clamp drive<>Power ‘EP’ back gauge<>Control module<>Electronic hand wheel for manual back gauge positioning<>Infinitely variable speed control (from very slow to very fast)<>Optical cutting line<>Adjustable back gauge with narrow separations and plastic gliders<>Two side lays each on front and rear tables<>High-quality blade made from “Solingen steel”<>Solid steel blade carrier and adjustable blade guides<>Automatic clamping system, guided on both sides for evenly distributed clamping pressure<>Clamp can be lowered or raised independently from blade<>Machine and stand can be separated for transportation through narrow doors (70 cm)<>Side tables (left and right)<>SCS (Safety Cutting System): hinged, electronically controlled safety guard on the front table<>Transparent safety cover on the rear table<>Main switch and safety lock with key<>Electronically controlled true two-hand operation<>24V controls (low voltage)<>Disk brake for instant blade stop<>Blade changing device with covered cutting edge<>Blade depth adjustment from the outside of the machine<>Easy blade change from the front of the machine without removing covers.<>Digital display for measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch)<>10-button keypad for presetting of measurement<>Memory key for repeat cuts | 9 programs with 9 steps in each program (up to 9 repeat cuts can be integrated into a program as one single program step)<>Setting of program steps via “Start” button<>‘SET’ function key for reference measurement<>Programmable eject function – for pushing out the paper<>Two programmable keys for quick setting of frequently needed measurements<>Self-diagnosis system with error indication on display |
Technical details
| Max. cut width | 520 mm (20.47") |
|---|---|
| Pile hight | 80 mm |
| Narrow cut | 35 mm |
| Width of machine | 855 mm |
| Deep of machine | 1067 mm |
| Height of machine | 1260 mm |
| Weight of machine | 282 kg (without additionals) |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request

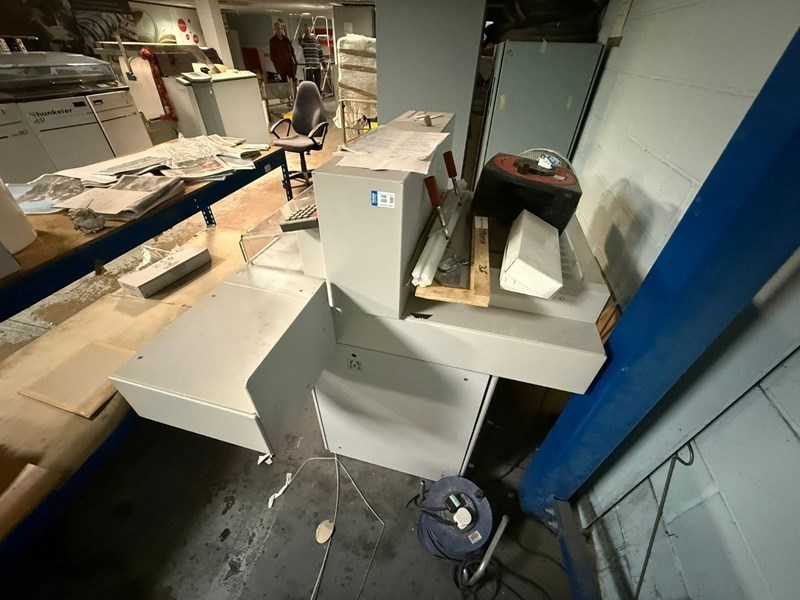

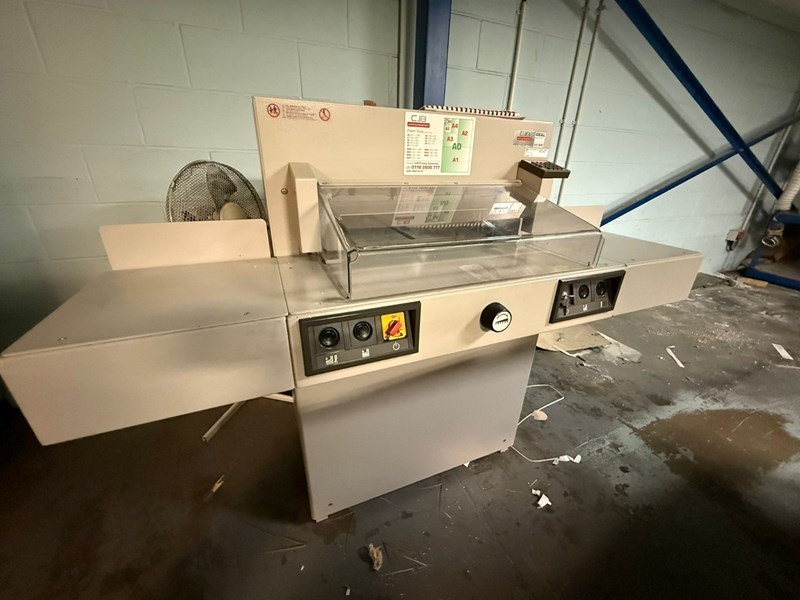

Images
