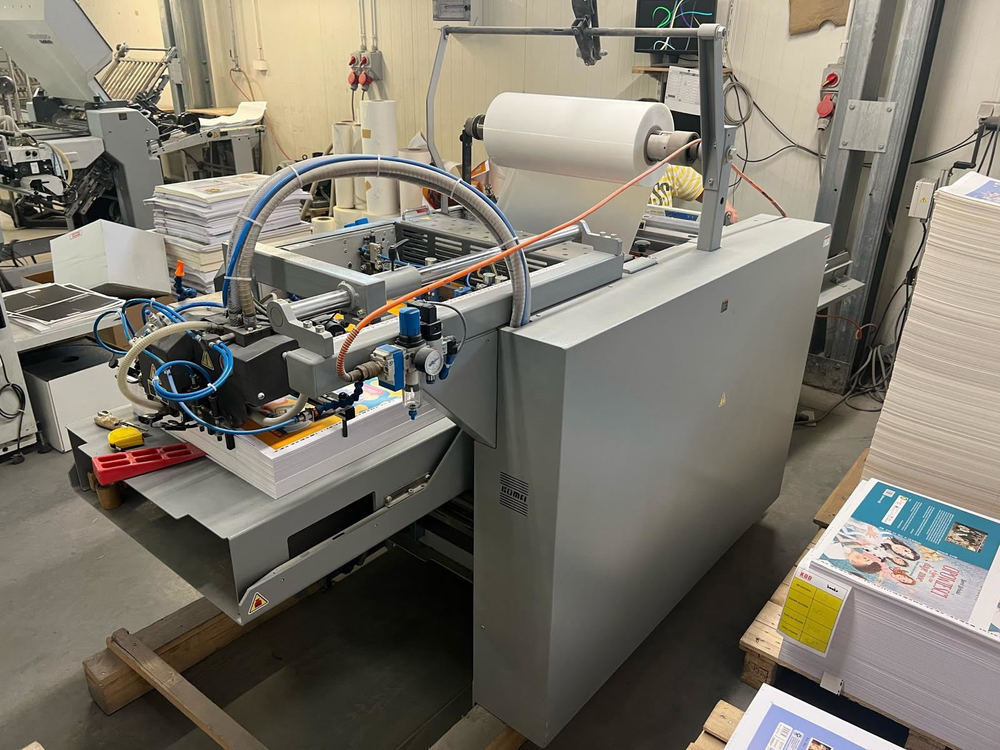

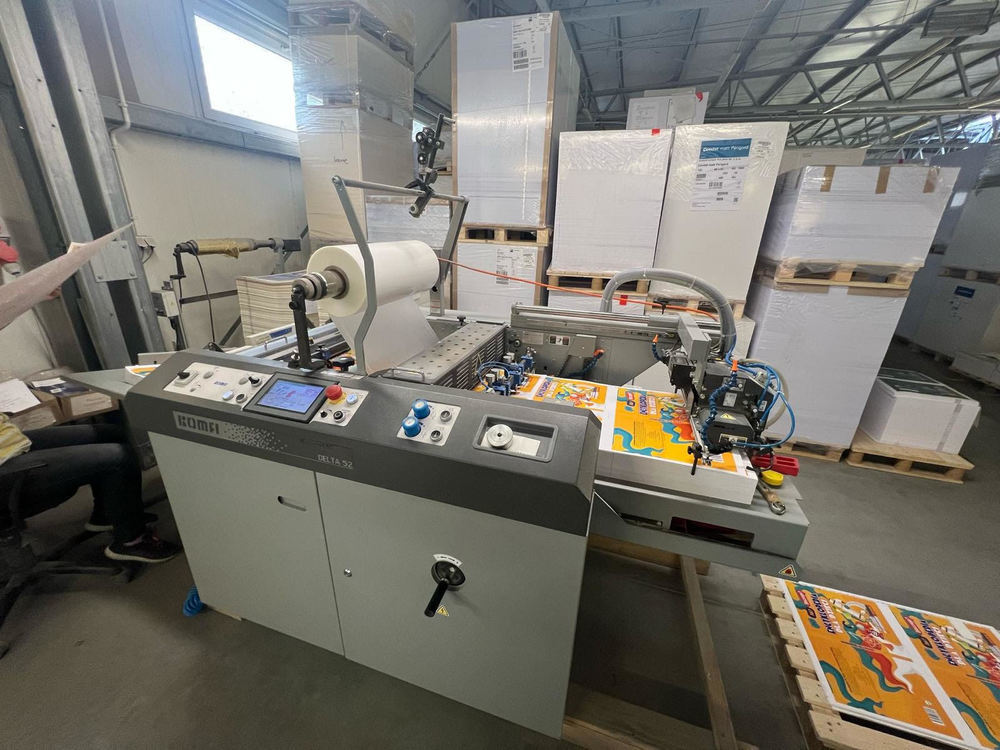

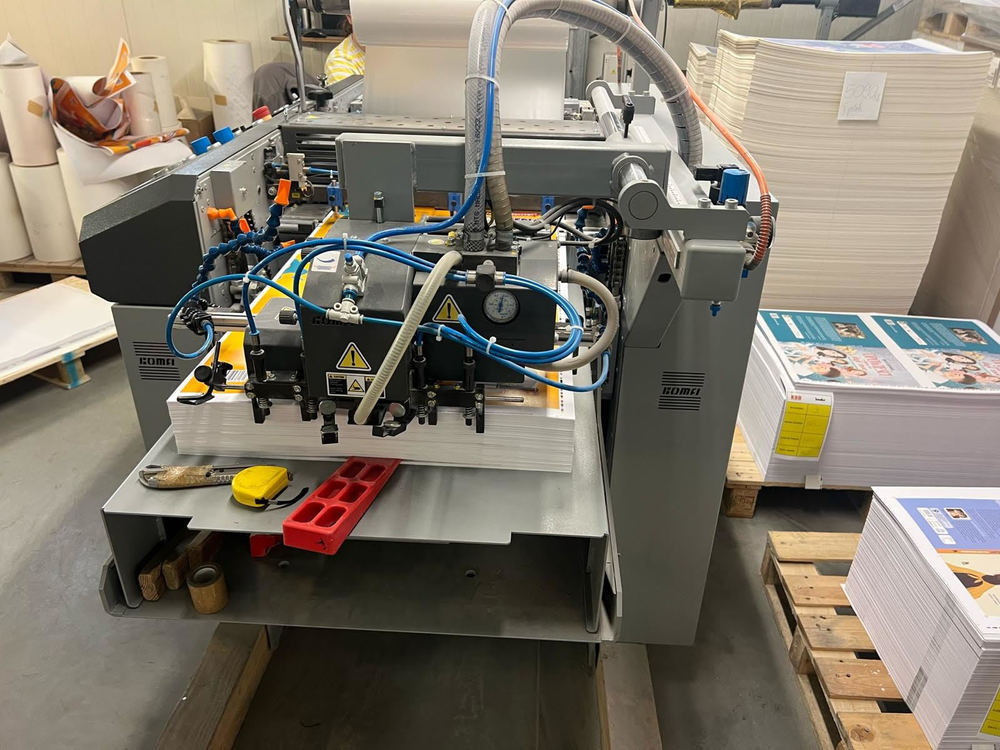

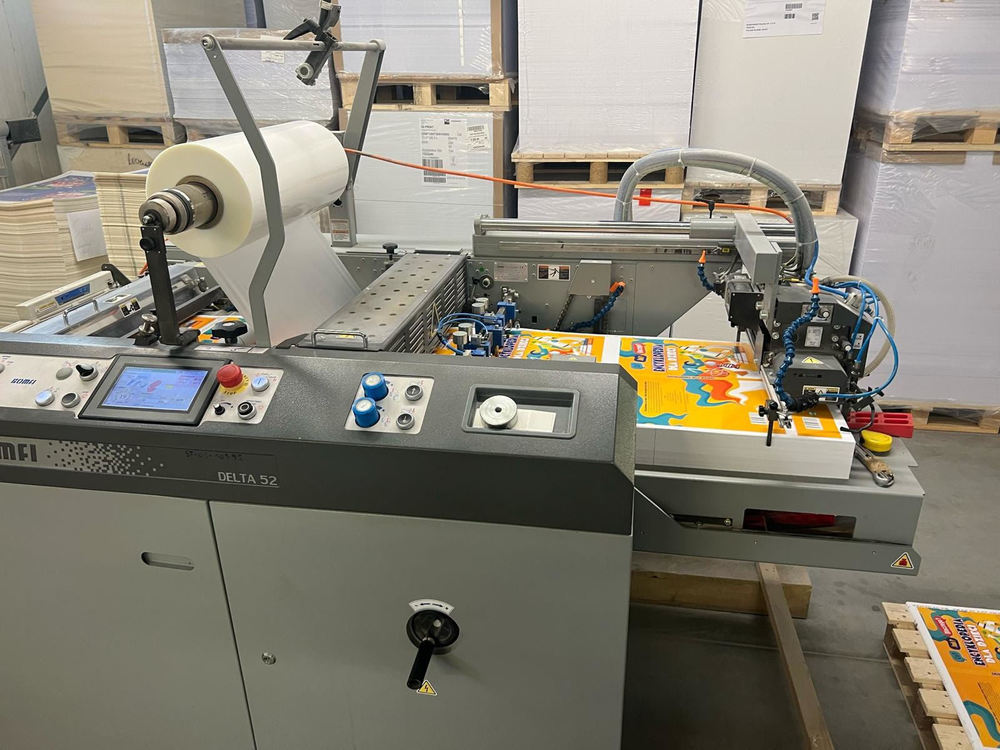

KOMFI DELTA 52 from 2022

Automatic feeder with fixed lifting table<>Single action Komfi feeding head<>⁠Automatic sheet overlap control<>⁠Mis-feeding detection<>⁠Laminating cylinder heated by 3-zone electro-resistance heater<>⁠Temperature drop detection<>⁠Air pressure decrease detector<>Airshaft for film unwinding<>Combined de-curling unit (bar and roller)<>Automatic sheet separation using built-in perforator<>Pneumatic snapping unit is electronically controlled<>Speed adjustable separating roller<>Sheet separation detector<>Fixed delivery desk<>Technical Parameters:<>Maximum speed of lamination: 35 m/min<>Maximum sheet dimensions: 54 × 76 cm<>Minimum sheet dimensions: 20 × 20 cm<>Paper weight: 115-600 g/m2<>Thickness of laminating film: 24-50 pm<>Kind of laminating film: OPP, PET, Nylon<>Time of laminating roll warm up (25÷100 °C): 3 min<>Sheet overlap accuracy (at constant laminating speed): 1 mm<>Machine dimensions including delivery desk (L * W * H): 268 × 123 × 144 cm<>Air supply: 6 bar<>Air consumption at stable run: 60 l/min
