Offer sheet
Nº 383380
Digital Finishing

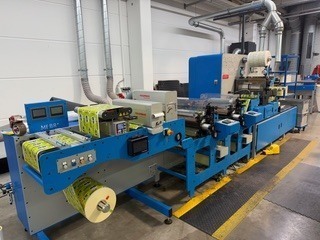

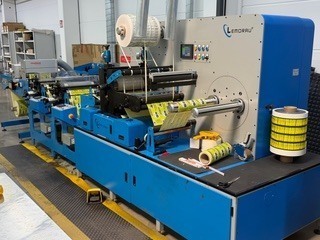

LEMORAU MEBR+ from 2019
Key data
Offer
383380
Year
2019
Manufacturer
LEMORAU
Model
MEBR+
Condition
Good
Condition
01Under power
02In production
03Complete and working
04Inspection possible
Description
Lemorau MEBR+ is a digital finishing machine built in a modular concept where it can be added modules
according to customer needs. MEBR+ runs in full rotary and semi-rotary mode. Semi-rotary for short
runs and full rotary for high speed longer runs. The registration tolerance is maintained during
acceleration, deceleration and production time due to the latest servo technol-ogy. Lemorau MEBR+
is equipped with servo-driven compensator system which provides superior web tension control when
the machine is running in semi-rotary mode.
Standard Features
// Maximum rotary speed 200 m/min (656 ft/min.) – Blank labels
// Maximum rotary speed 120 m/min (394 ft/min.) – Die cutting to register
// Maximum semi-rotary speed 40 m/min (131 ft/min.) dependent on plate size – Die cutting to register
// Web width 250, 330, 400 mm (10, 13, 16 in)
// Electronic Counter (Labels/ Meters/ Rolls counter/ Total meters and labels Counter)
// Adjustable splice table with pneumatic clamps
// Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
// Automatic web tension control system by servo motors – Constant and Taper tension
// 250 Job memory for easy and quick job set ups
// 6 sets of circular knives with lateral adjustment
// 2 interchangeable pneumatic rewinders of 25, 40 and 76 mm diameter (1, 1.5, 3 in)
// Paper and matrix break detection
// Labels in/ labels out rewinding
// Remote assistance through internet connection
// Automatic stop at master roll end with programmable end of roll function
// Semi- Automatic rewinding
// Foot pedal to jog the machine
// Multi language touch screen
// Die repeats 203,20 – 431,80 mm (8 – 17 in) – Rotary mode
// Die repeats 41,30- 371,00 mm (1,6 – 14,6 in) – Semi-Rotary mode
// Max rewinder diameter: 600 mm (23.7 in) for 1 shaft / 350 mm (13.8 in) for 2 shafts
// Max unwinder diameter 700 mm (27.5 in)
// CE conformity certification
Additional Equipment
/ 1 Anti-staticbar
/ 1 Clear on clear sensor
/ 1 Corana treatment
/ 1 Speed pack (80m/min semi-rotay)
/ 1 Turret rewinding
/ 2 Spot varnish flexo unit rotary registe
/ 1 Web cleaner
/ QRC (Quick remote connection)
/ 1 new Die repeats 41,30- 371,00 mm (1,6 – 14,6 in) – Semi-Rotary mode
/ 710 die sheets
according to customer needs. MEBR+ runs in full rotary and semi-rotary mode. Semi-rotary for short
runs and full rotary for high speed longer runs. The registration tolerance is maintained during
acceleration, deceleration and production time due to the latest servo technol-ogy. Lemorau MEBR+
is equipped with servo-driven compensator system which provides superior web tension control when
the machine is running in semi-rotary mode.
Standard Features
// Maximum rotary speed 200 m/min (656 ft/min.) – Blank labels
// Maximum rotary speed 120 m/min (394 ft/min.) – Die cutting to register
// Maximum semi-rotary speed 40 m/min (131 ft/min.) dependent on plate size – Die cutting to register
// Web width 250, 330, 400 mm (10, 13, 16 in)
// Electronic Counter (Labels/ Meters/ Rolls counter/ Total meters and labels Counter)
// Adjustable splice table with pneumatic clamps
// Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
// Automatic web tension control system by servo motors – Constant and Taper tension
// 250 Job memory for easy and quick job set ups
// 6 sets of circular knives with lateral adjustment
// 2 interchangeable pneumatic rewinders of 25, 40 and 76 mm diameter (1, 1.5, 3 in)
// Paper and matrix break detection
// Labels in/ labels out rewinding
// Remote assistance through internet connection
// Automatic stop at master roll end with programmable end of roll function
// Semi- Automatic rewinding
// Foot pedal to jog the machine
// Multi language touch screen
// Die repeats 203,20 – 431,80 mm (8 – 17 in) – Rotary mode
// Die repeats 41,30- 371,00 mm (1,6 – 14,6 in) – Semi-Rotary mode
// Max rewinder diameter: 600 mm (23.7 in) for 1 shaft / 350 mm (13.8 in) for 2 shafts
// Max unwinder diameter 700 mm (27.5 in)
// CE conformity certification
Additional Equipment
/ 1 Anti-staticbar
/ 1 Clear on clear sensor
/ 1 Corana treatment
/ 1 Speed pack (80m/min semi-rotay)
/ 1 Turret rewinding
/ 2 Spot varnish flexo unit rotary registe
/ 1 Web cleaner
/ QRC (Quick remote connection)
/ 1 new Die repeats 41,30- 371,00 mm (1,6 – 14,6 in) – Semi-Rotary mode
/ 710 die sheets
Price
Upon request
Incoterms · bank transfer or L/C
