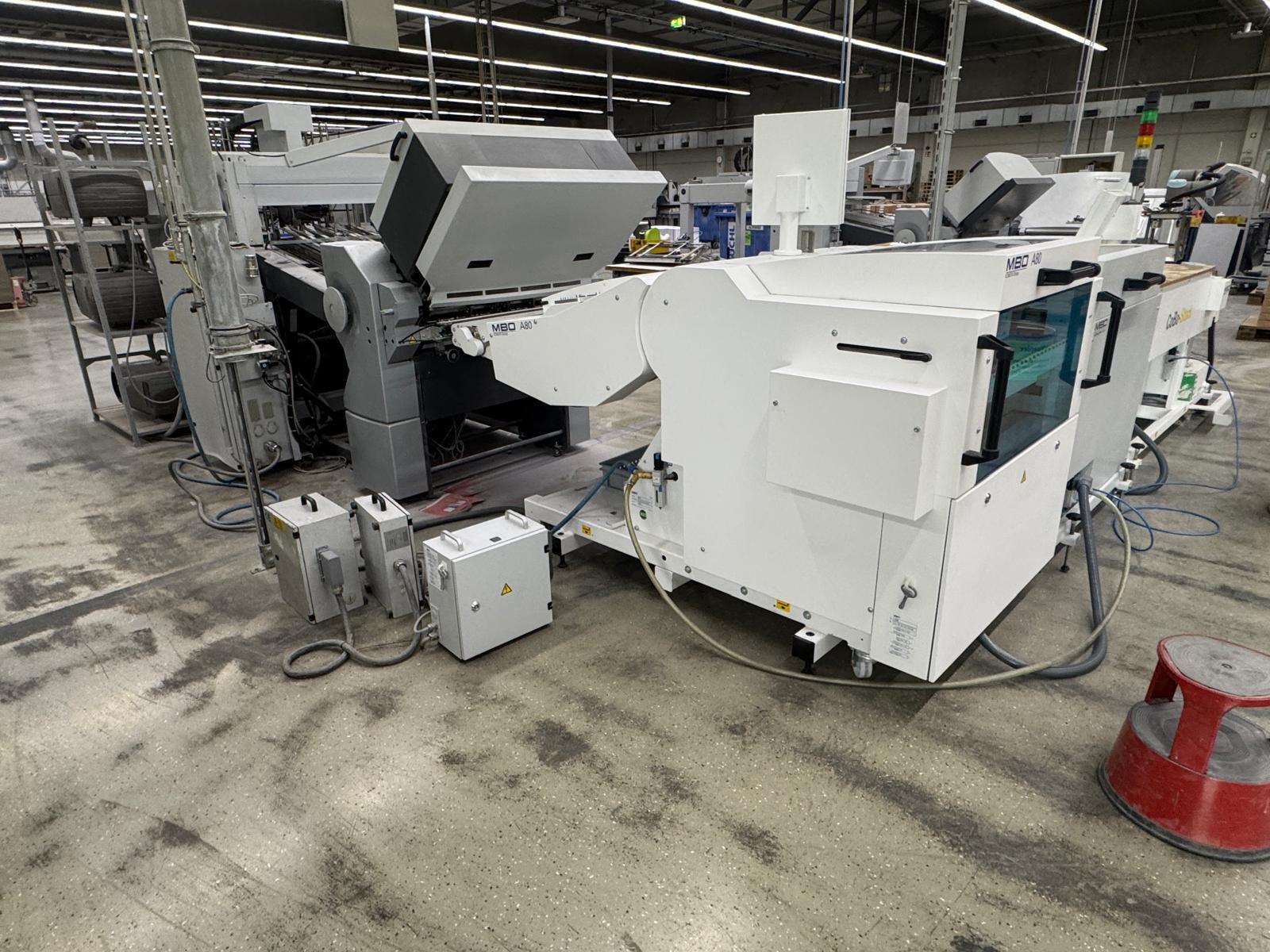

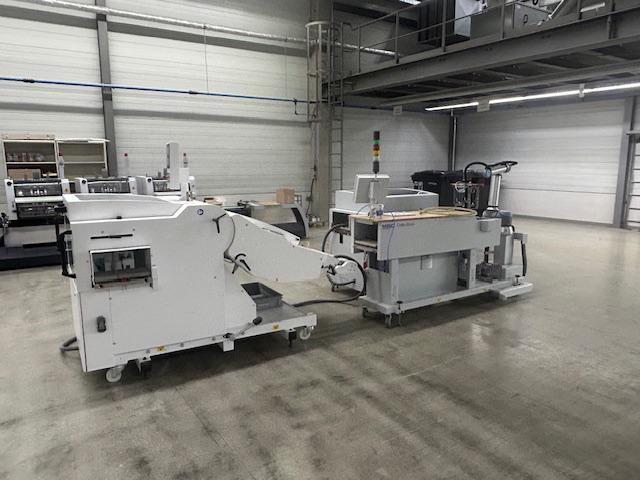

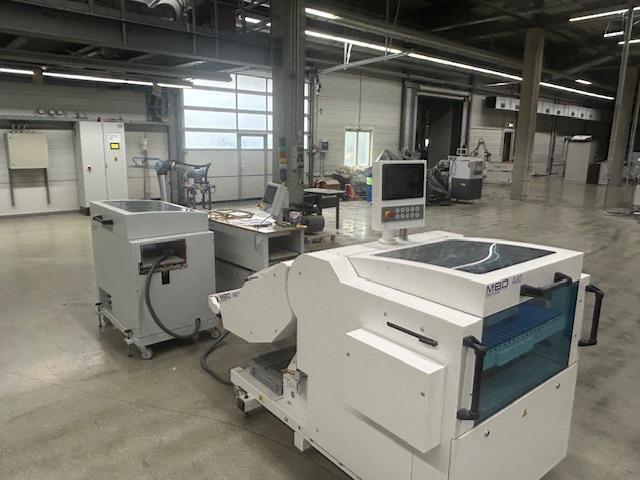

Mobile stacking unit for mark-free delivery MBO A80 (2024) + MBO Cobo-Stack (2024)<>M1 Advanced machine control with rotating touchscreen<>Counter<>Semi-automated setup<>Automatic data transfer from the folding machine<>Sheet length control and target tracking<>Automatic die control<>Automatic die adjustment in the direction of travel<>Pressing station, pneumatic opening, max. pressing force: 2 t<>Product stabilization device, freely adjustable<>Collection chute with vibrator, stack level compensation<>Ergonomic stack removal height<>Max. format: 760 mm x 330 mm<>Min. format: 80 mm x 95 mm<>Stack height: 3 mm - 160 mm<>Infeed height: 420-950 mm (infinitely adjustable)<>Max. stacking capacity: 1,000 stacks/trail<>Max. speed: 200 m/min<>Maximum output per sheet for DIN A4: 15,000 sheets/h<>Electrical connection: 16 A, 400/230 V, 3.5 kW<>Compressed air: 6 bar, 250 l/min, dried - to be provided by the customer<>Optimized for the CoBo stack<>Note: If one of the preceding units in the system is a unit with M1 Basic machine control, the functionality of the M1 Advanced<>Machine control of this folding unit is based on that of a folding unit with M1 Basic<>Restricted machine control<>Mobile output table<>Length: 1955 mm<>Pulling plate<>Storage compartment<>Output side left or right<>Electrical interface for CoBo-Stack use<>Coupling box steel TF or TD on MtsO Ml<>MBO Cobo-Stack from 2024<>CoBo Stack<>Gripper M (Medium):<>Product height: 210 mm - 365 mm<>Product width:155 mm - 235 mm<>Caution: Gripper is a wear part.<>Extended stacking height to 1,400 mm by adjusting the robot arm height by 500 mm.<>- Cobot (no Schulz cage required)<>- Two pallet positions possible; this allows one pallet to be prepared while the other is being loaded<>- Visual and audible signals to indicate different operating states<>- Standard left-hand output<>- RAS router included; remote maintenance access must be enabled by the customer.<>- Electrical preparation for use with MBO 480 output<>Stack height: 60 mm - 150 mm<>Maximum stack weight: 6 kg<>Maximum stacks per hour: 300<>Maximum pallet height: 900 mm
