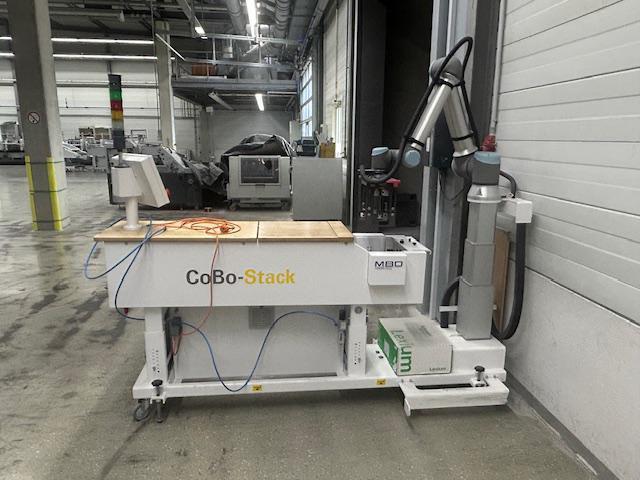

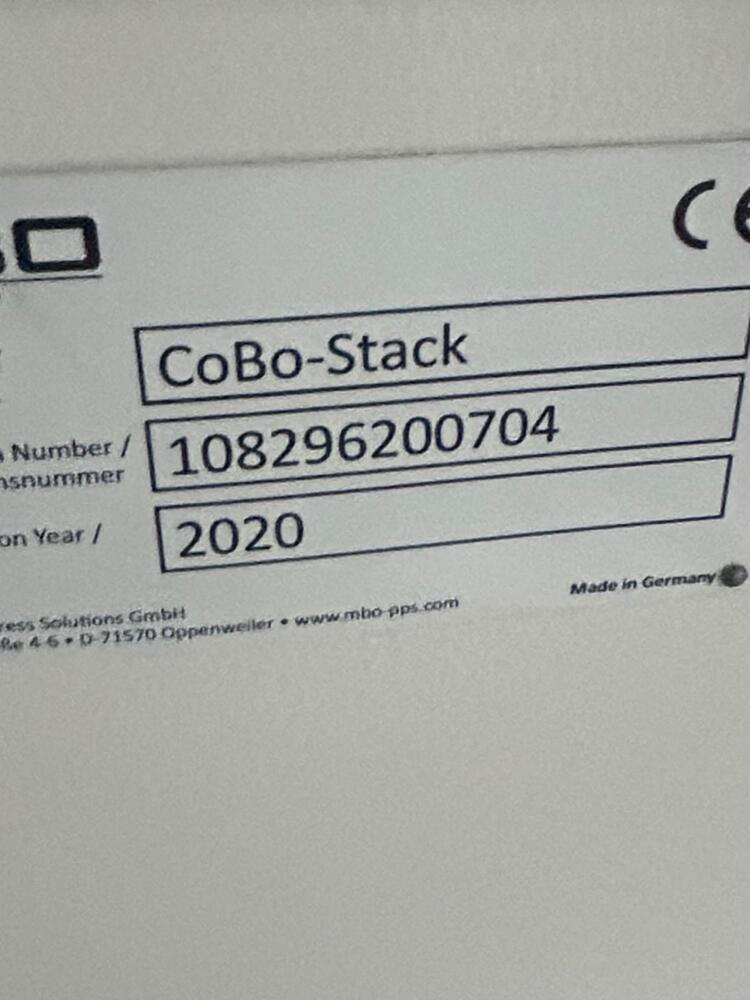

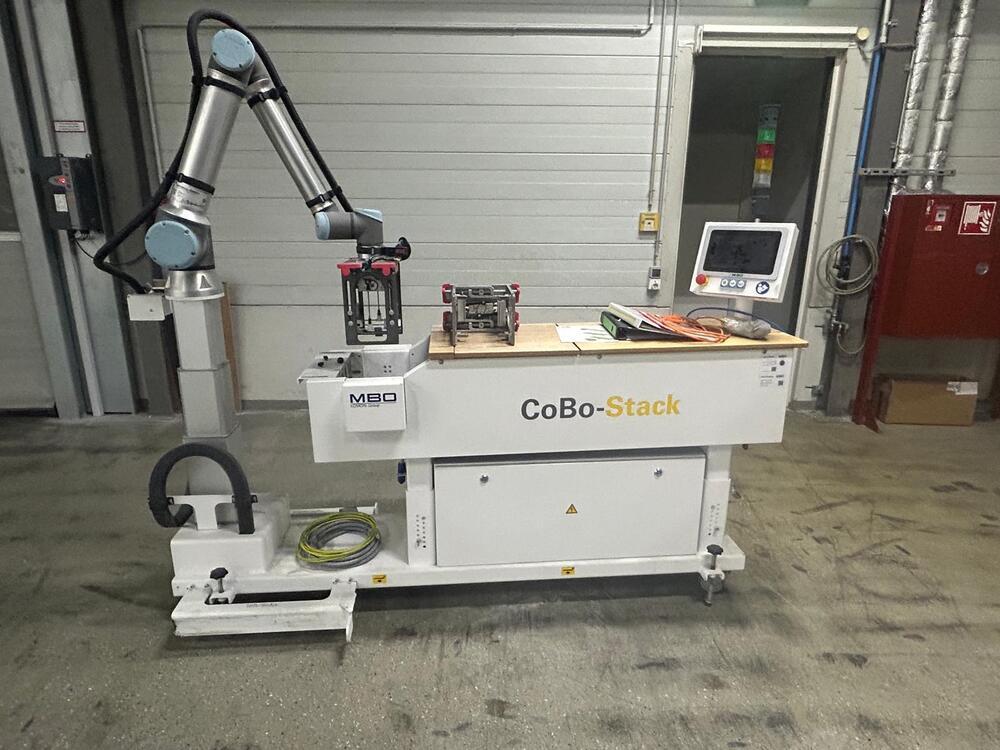

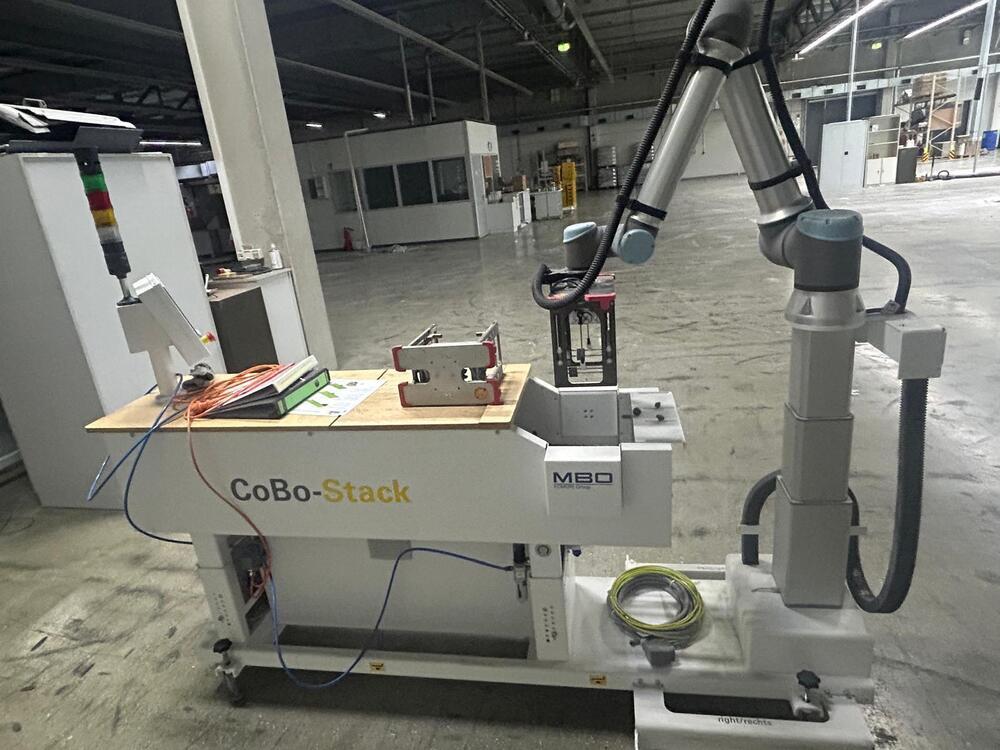

MBO COBO-STACK from 2020

CoBo Stack
- Cobot (no safety cage required)
- Two pallet positions possible; this allows one pallet to be prepared while the other is being loaded
- Visual and audible signals to indicate different operating states
- Standard left-hand output
- RAS router included; remote maintenance access can be enabled by the customer
- Electrically prepared for use with MBO A80 delivery
Infeed height: 803 mm - 923 mm
Stacking height: 60 mm - 150 mm
Maximum stack weight: 6 kg
Maximum stacks per hour: 300
Maximum pallet height: 900 mm
Gripper M (Medium):
Product height: 210 mm - 340 mm
Product width: 155 mm - 235 mm
Adjustable stacking height to 1,400 mm by adjusting the robot arm height
by 500 mm
Mechanical connection to MBO A500 I 4700, palamides alpha500l 700 and alphaSooptus /
700plus, A80
