Offer sheet
Nº 348115
Bookbinding Components

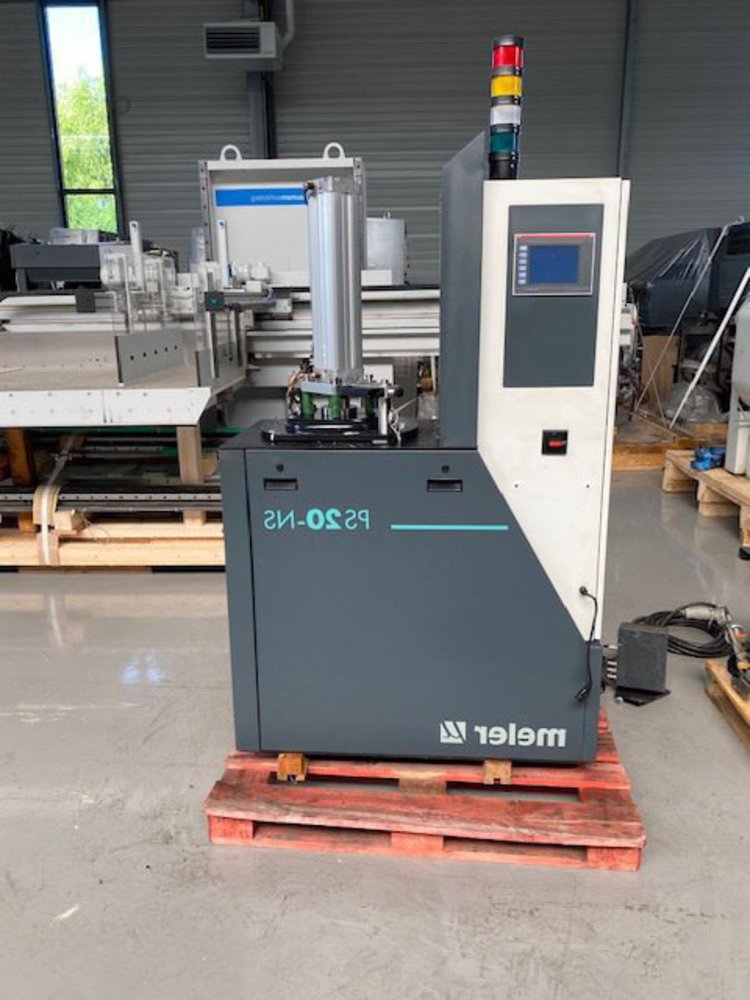

MELER PS 20-NS/4 from 2017
Key data
Offer
348115
Year
2017
Manufacturer
MELER
Model
PS 20-NS/4
Condition
Good
Availability
immediately
Condition
01Complete and working
Description

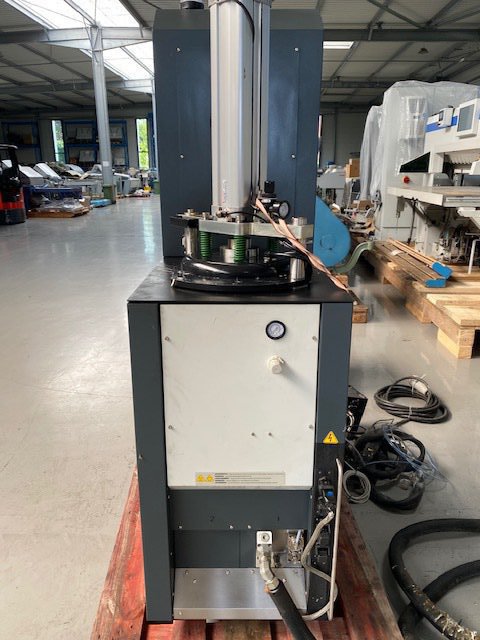

Non-Stop + Drum melter for 20 kg PUR adhesive blocks

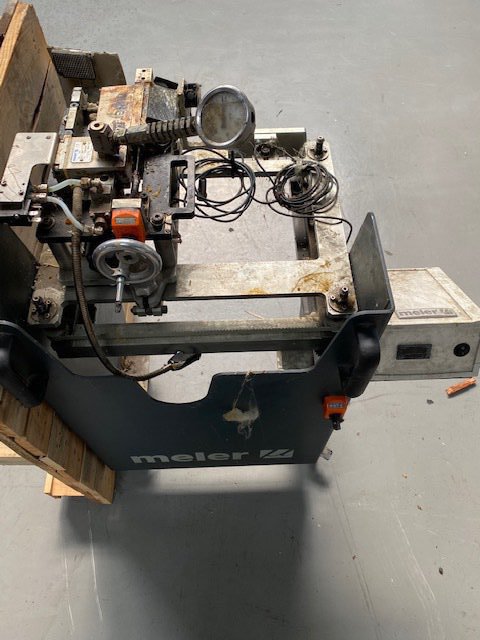

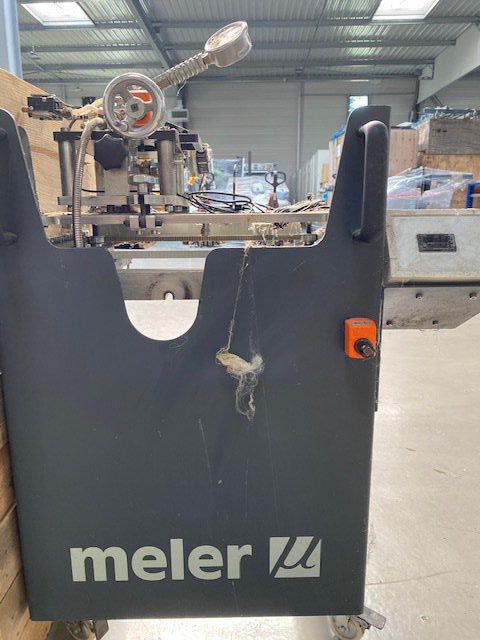

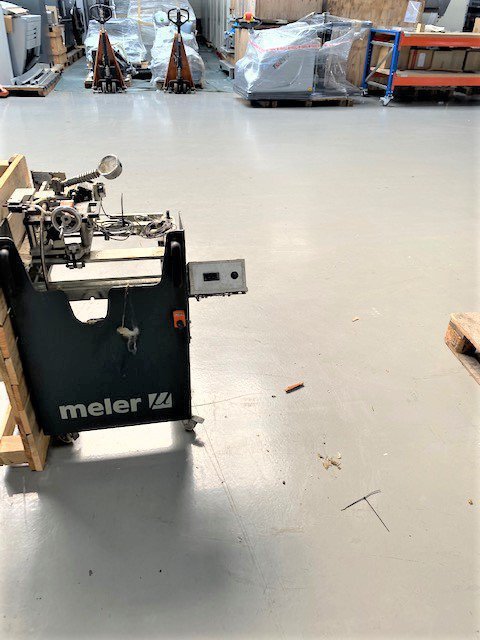

Trolley with PUR Melting device suitable for Mueller Martini Corona
Integration of melter in automated production lines for Kolbus or Mueller Martini perfect binding lines
Real-time data monitoring

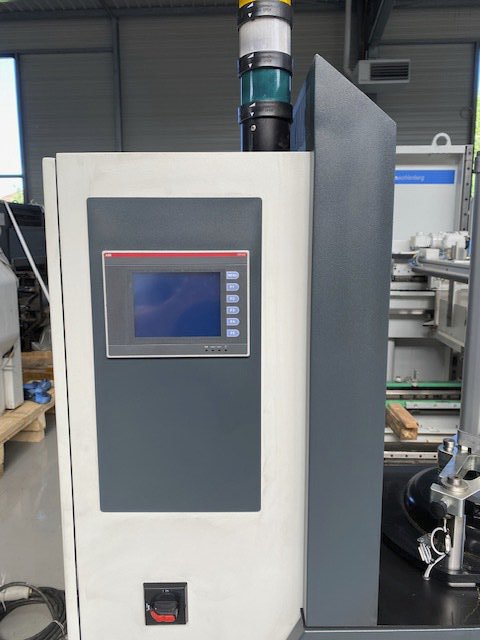

Remote control
Continuous block production of PUR, reactive polyolefin and non-reactive
MELT-ON-DEMAND feature: smart melting for adhesive care
NON-STOP system to avoid unwanted machine stops
Leak tight design of melter assembly and cover
Easy-clean opening ( > 120º)
Non-stick surface for easy cleaning
Simple and easy to handle cover assembly
Collapsible casing for performing clean-in-place
Up to 6 electrical channels
Wider range of gear pumps
Larger variety of extra options: Integration with RTFC system and external temperature control
Main tank volume Ø286 x 395 mm (20 kg blocks)
Melting reservoir tank volume 3.5L (used) / 6.5L (max.)
Pumping capacity (*) 1, 2.5, 4, 8 and 15 cc/rev single pump
2×0.93, 2×1.86, 2×3.71 and 2×4.8 cc/rev double pump
Melting rate (*) Up to 18 kg/h
Number of pumps Up to 2 single pumps or 2 double pumps
Number of hydraulic output 2 per pump
Number of electrical outputs 2, 4 or 6 outputs (Standard version)
Motor power 0.375 kW/ 0.55kW (with 15cc/rev pump)
Speed 10-80 rpm (range 0-100 rpm)
Temperature range From 0ºC to 200ºC
Temperature control RTD ±0,5ᵒC (Pt100, Ni120 or NTC)
Maximum power pressure 80 bar
By- pass valve Pneumatic or mechanical
Maximum power supply 1 single pump/ 2 outputs > 4.5kW/ per phase
2 single pumps/ 4 outputs > 6.4kW/ per phase

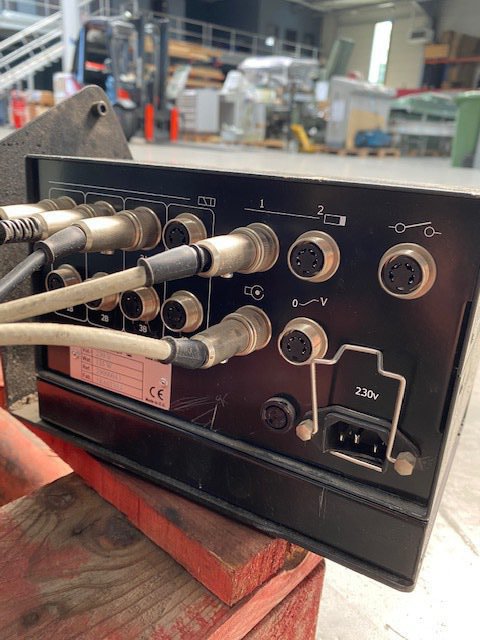

External functions Input Motor start/stop external signal, standby external control, activity control, on/off pumping signal,
Outputs Temperatures ok output, Finished block signal, Reservoir low level signal, Standby external control input, Motor start/stop external signal, Motor speed external control
Electrical requirements 3N – 400V 50/60 Hz + PE (please consult on other voltages)
Trolley with PUR Melting device suitable for Mueller Martini Corona
Integration of melter in automated production lines for Kolbus or Mueller Martini perfect binding lines
Real-time data monitoring
Remote control
Continuous block production of PUR, reactive polyolefin and non-reactive
MELT-ON-DEMAND feature: smart melting for adhesive care
NON-STOP system to avoid unwanted machine stops
Leak tight design of melter assembly and cover
Easy-clean opening ( > 120º)
Non-stick surface for easy cleaning
Simple and easy to handle cover assembly
Collapsible casing for performing clean-in-place
Up to 6 electrical channels
Wider range of gear pumps
Larger variety of extra options: Integration with RTFC system and external temperature control
Main tank volume Ø286 x 395 mm (20 kg blocks)
Melting reservoir tank volume 3.5L (used) / 6.5L (max.)
Pumping capacity (*) 1, 2.5, 4, 8 and 15 cc/rev single pump
2×0.93, 2×1.86, 2×3.71 and 2×4.8 cc/rev double pump
Melting rate (*) Up to 18 kg/h
Number of pumps Up to 2 single pumps or 2 double pumps
Number of hydraulic output 2 per pump
Number of electrical outputs 2, 4 or 6 outputs (Standard version)
Motor power 0.375 kW/ 0.55kW (with 15cc/rev pump)
Speed 10-80 rpm (range 0-100 rpm)
Temperature range From 0ºC to 200ºC
Temperature control RTD ±0,5ᵒC (Pt100, Ni120 or NTC)
Maximum power pressure 80 bar
By- pass valve Pneumatic or mechanical
Maximum power supply 1 single pump/ 2 outputs > 4.5kW/ per phase
2 single pumps/ 4 outputs > 6.4kW/ per phase
External functions Input Motor start/stop external signal, standby external control, activity control, on/off pumping signal,
Outputs Temperatures ok output, Finished block signal, Reservoir low level signal, Standby external control input, Motor start/stop external signal, Motor speed external control
Electrical requirements 3N – 400V 50/60 Hz + PE (please consult on other voltages)
Price
EUR 12.000 FCA
FCA · Incoterms · bank transfer or L/C
