Offer sheet
Nº 354582
Gatherer-collators

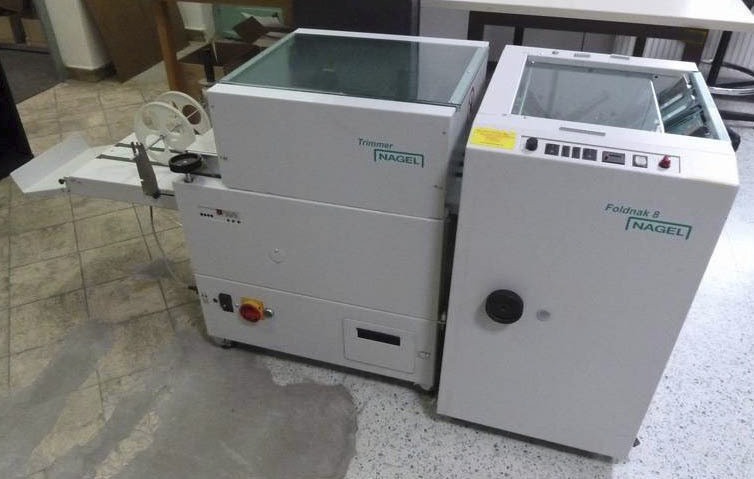

NAGEL FOLDNAK 8 from 2003
Key data
Offer
354582
Year
2003
Manufacturer
NAGEL
Model
Foldnak 8
Condition
Good
Availability
Immediately
Condition
01Complete and working
Description
Bookletmaking in one pass, automatic release, smooth butt device, magazine and missing staple control,
counter, movable staple turner, staple and ring staples in the same stapling head, format change in approx. 1 min!
On-Line corner stapling.
Booklet size up to 100 pages (80 g/m² paper)
Paper formats DIN A5, A4, A3, A3+, SRA3 (and any intermediate format)
Booklet formats DIN A4, A5, A6 (and any intermediate format)
Cover cardboard up to approx. 300 g/m²
Stapling heads 2(option: 4 maximum) with magazine control.
No adjustment for paper thickness required.
Stapling head positions in mm 30 x 50 x 80 x 50 x 30
Staple clincher (movable clincher)
Staple types Ring staples Ri 26/6
Staples 26/6, 26/8, 26/8S
Production capacity up to 2,000 booklets/hour
Shingle delivery electric, adjustable stroke
Block stapling on-line, up to 40 sheets
Connection 230 V, 50 Hz, 300 W
Weight 109 kg
Dimensions in mm H 870 x W 610 x D 1270 ( D 560 with folded up stream delivery)

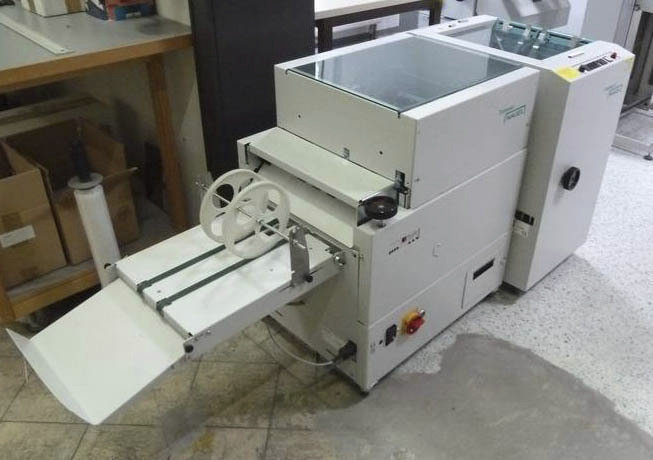

Front trimmer
The pressing station before trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure reliable paper transport even of "thick" booklets.
Adjustable belt tracking ensures that the booklet is always precisely positioned against the stop, even when the booklet is fed in at an angle, format changeover in 30 seconds.
Front trimmer
The pressing station before trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure reliable paper transport even of "thick" booklets.
Adjustable belt tracking ensures that the booklet is always precisely positioned against the stop, even when the booklet is fed in at an angle, format changeover in 30 seconds.
Booklet size up to 100 pages (80 g/m² paper)
Booklet formats A4, A5, A6 (and any intermediate format), min 10 cm
Cover everything the Foldnak makes
Production capacity up to 2,000 booklets/hour
Connection 230 V, 50 Hz, 600 W
Weight 160 kg
Dimensions in mm (H x W x D) H 870 x W 550 x D 1590 ( D960 with folded up delivery
counter, movable staple turner, staple and ring staples in the same stapling head, format change in approx. 1 min!
On-Line corner stapling.
Booklet size up to 100 pages (80 g/m² paper)
Paper formats DIN A5, A4, A3, A3+, SRA3 (and any intermediate format)
Booklet formats DIN A4, A5, A6 (and any intermediate format)
Cover cardboard up to approx. 300 g/m²
Stapling heads 2(option: 4 maximum) with magazine control.
No adjustment for paper thickness required.
Stapling head positions in mm 30 x 50 x 80 x 50 x 30
Staple clincher (movable clincher)
Staple types Ring staples Ri 26/6
Staples 26/6, 26/8, 26/8S
Production capacity up to 2,000 booklets/hour
Shingle delivery electric, adjustable stroke
Block stapling on-line, up to 40 sheets
Connection 230 V, 50 Hz, 300 W
Weight 109 kg
Dimensions in mm H 870 x W 610 x D 1270 ( D 560 with folded up stream delivery)
Front trimmer
The pressing station before trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure reliable paper transport even of "thick" booklets.
Adjustable belt tracking ensures that the booklet is always precisely positioned against the stop, even when the booklet is fed in at an angle, format changeover in 30 seconds.
Front trimmer
The pressing station before trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure reliable paper transport even of "thick" booklets.
Adjustable belt tracking ensures that the booklet is always precisely positioned against the stop, even when the booklet is fed in at an angle, format changeover in 30 seconds.
Booklet size up to 100 pages (80 g/m² paper)
Booklet formats A4, A5, A6 (and any intermediate format), min 10 cm
Cover everything the Foldnak makes
Production capacity up to 2,000 booklets/hour
Connection 230 V, 50 Hz, 600 W
Weight 160 kg
Dimensions in mm (H x W x D) H 870 x W 550 x D 1590 ( D960 with folded up delivery
Price
Upon request
EXW · Incoterms · bank transfer or L/C
