Offer sheet
Nº 362822

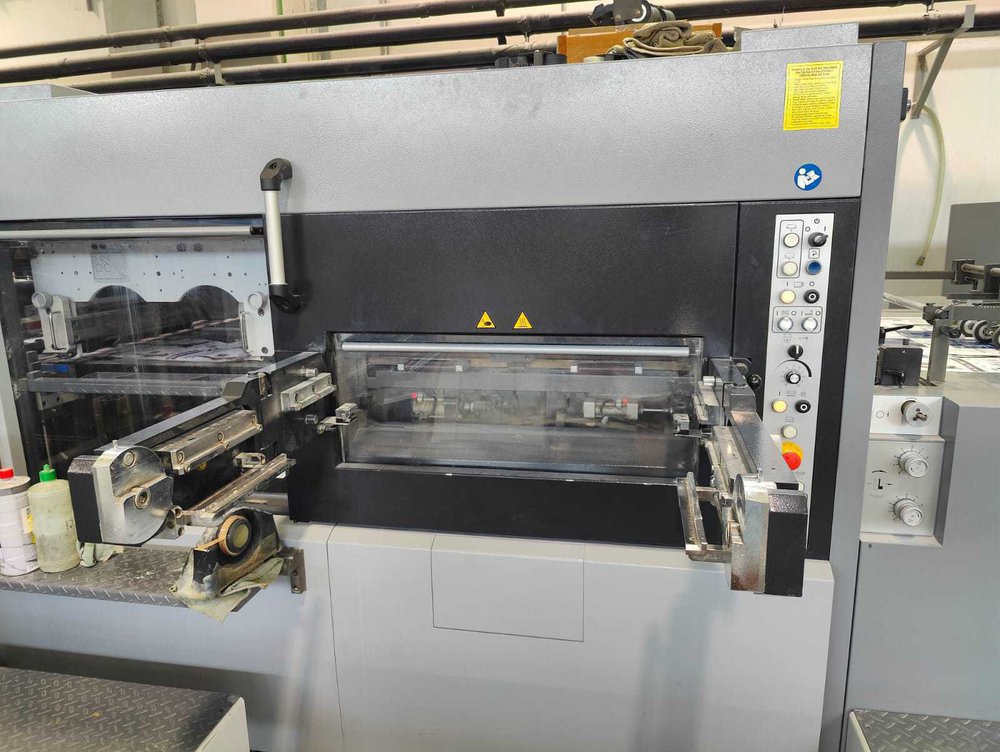

Die-cutter (flatbed)
SBL 1050 EA from 2019
Key data
Offer
362822
Year
2019
Manufacturer
SBL
Model
1050 EA
Condition
Very good
Availability
10/2022
Condition
01Under power
02In production
03Complete and working
04Inspection possible
Description
Model SBL-1050EF
Total running hours approx. 15.000
Total die-cutting sheets approx 25 mio

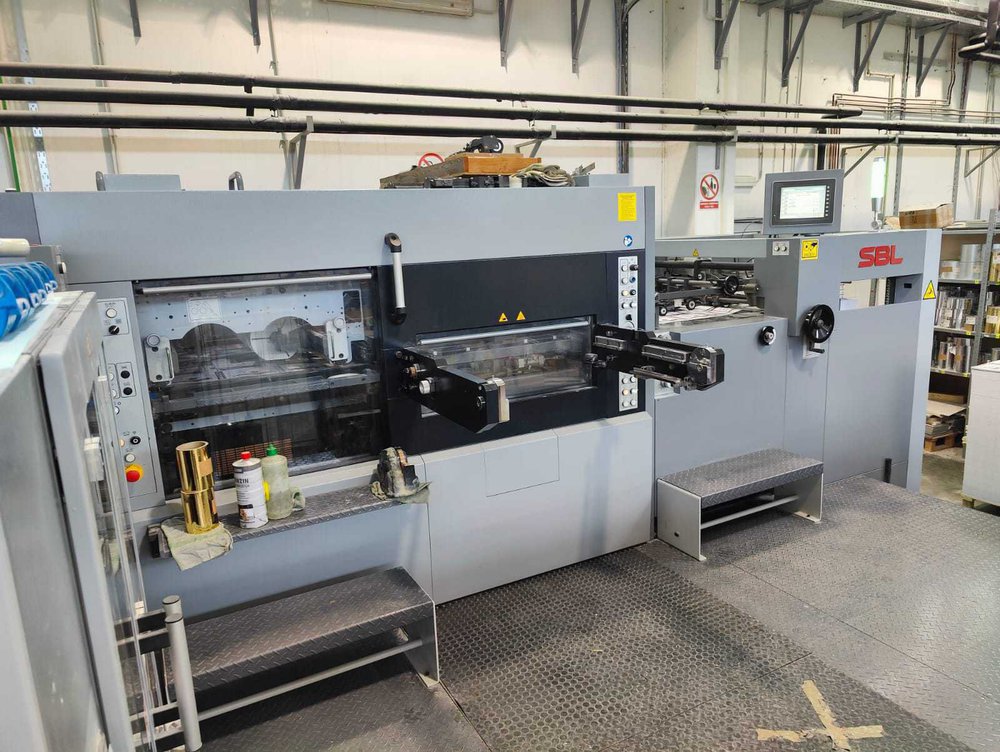

Automatic Platen Foil Stamping and Die Cutting
(No stripping device)
TOUCH SCREEN MONITOR SYSTEM
REGISTER DEVICE
DIE-CUTTING SECTION
HONEYCOMB HEATING SYSTEM
AUTOMATIC IMPRESSION ON/OFF SYSTEM
FOIL CONTROL SYSTEM
HEATER ZONE CONTROL CENTER

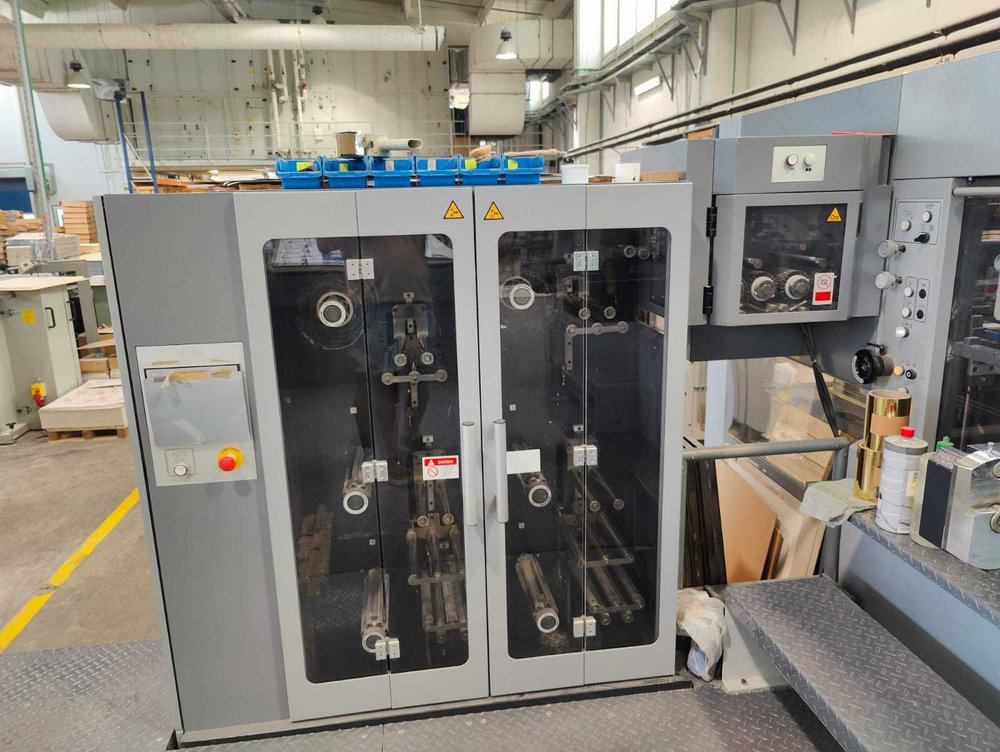

FOIL REWINDER
Max. paper size: 1050×750 mm
Min. paper size: 400×370 mm
Max. die-cutting paper size: 1040×730 mm
Min. gripper margin 9.5 mm
Die-cutting force: 300 Tons
Inner size of die chase: 1144×760 mm
Cutting plate size: 1080×736 mm
Range of material thickness: 0.1 ~ 2 mm (80~1400 gsm)
Corrugated paper ≦4mm
Height of cutting rules: 23.6 mm
Max. punching speed: 7500 s/h
Register tolerance ±0.075 mm
Main power 20KVA

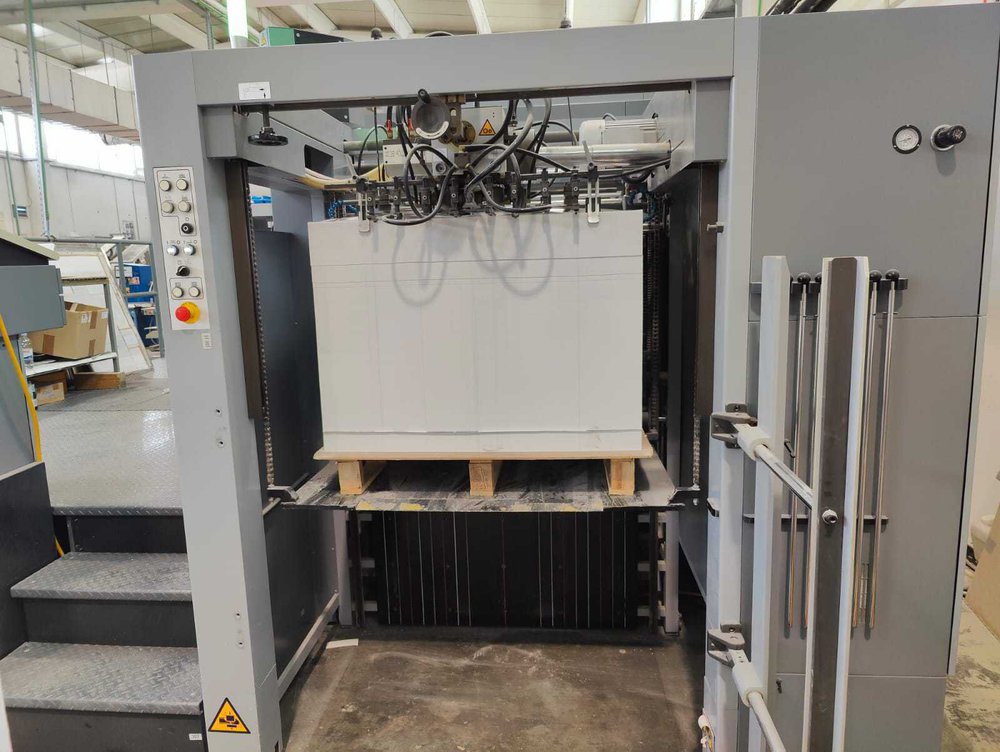

Feeder pile height with pallet: 1200 mm
Feeder pile height with pallet (without non-stop): 1400 mm

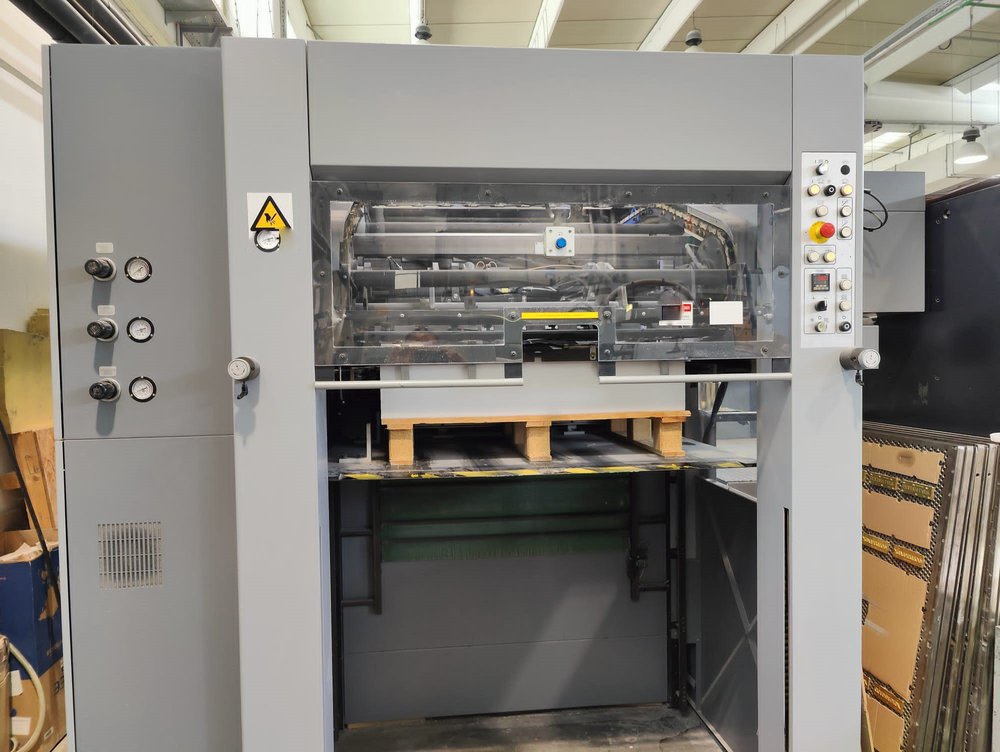

Delivery pile height 1040 mm
Small sheet device (option): 350x300 mm
Longitudinal puller shafts: 3
Transeversal puller shafts –
Longitudinal maximum foil diameter φ 240 mm
Transverse maximum foil diameter –
Longitudinal rewind shafts (option) 6 (up to 8)
Transverse rewind shafts –
Max. longitudinal rewind diameter: φ 400 mm
Max. transverse rewind diameter –
Max. stamp speed: 7.000 s/h
20x Heating zones
Hot foil stamping power: 35KVA
Outer size of machine(mm) 5573 × 2356 × 2606 (LxWxH)
Machine weight (approx.) 19.5 Tons
Total running hours approx. 15.000
Total die-cutting sheets approx 25 mio
Automatic Platen Foil Stamping and Die Cutting
(No stripping device)
TOUCH SCREEN MONITOR SYSTEM
REGISTER DEVICE
DIE-CUTTING SECTION
HONEYCOMB HEATING SYSTEM
AUTOMATIC IMPRESSION ON/OFF SYSTEM
FOIL CONTROL SYSTEM
HEATER ZONE CONTROL CENTER
FOIL REWINDER
Max. paper size: 1050×750 mm
Min. paper size: 400×370 mm
Max. die-cutting paper size: 1040×730 mm
Min. gripper margin 9.5 mm
Die-cutting force: 300 Tons
Inner size of die chase: 1144×760 mm
Cutting plate size: 1080×736 mm
Range of material thickness: 0.1 ~ 2 mm (80~1400 gsm)
Corrugated paper ≦4mm
Height of cutting rules: 23.6 mm
Max. punching speed: 7500 s/h
Register tolerance ±0.075 mm
Main power 20KVA
Feeder pile height with pallet: 1200 mm
Feeder pile height with pallet (without non-stop): 1400 mm
Delivery pile height 1040 mm
Small sheet device (option): 350x300 mm
Longitudinal puller shafts: 3
Transeversal puller shafts –
Longitudinal maximum foil diameter φ 240 mm
Transverse maximum foil diameter –
Longitudinal rewind shafts (option) 6 (up to 8)
Transverse rewind shafts –
Max. longitudinal rewind diameter: φ 400 mm
Max. transverse rewind diameter –
Max. stamp speed: 7.000 s/h
20x Heating zones
Hot foil stamping power: 35KVA
Outer size of machine(mm) 5573 × 2356 × 2606 (LxWxH)
Machine weight (approx.) 19.5 Tons
Price
Upon request
FCA · Incoterms · bank transfer or L/C
Enquiries
WhatsApp +49 172 371 8407
https://www.roepa.com/offers/sbl-1050-ea-from-2019-362822
Inspection under power welcome — dismantling, transport and commissioning arranged.
