Offer sheet

Nº 383654

Coating + laminating

VINFOIL INFIGO SF110 from 2015

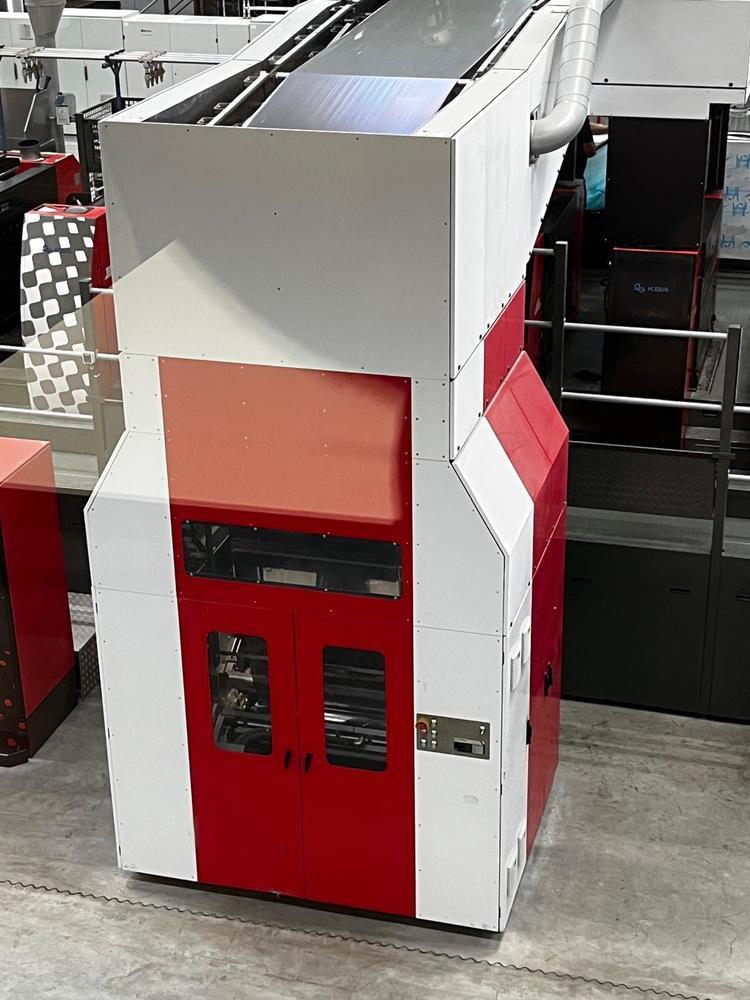

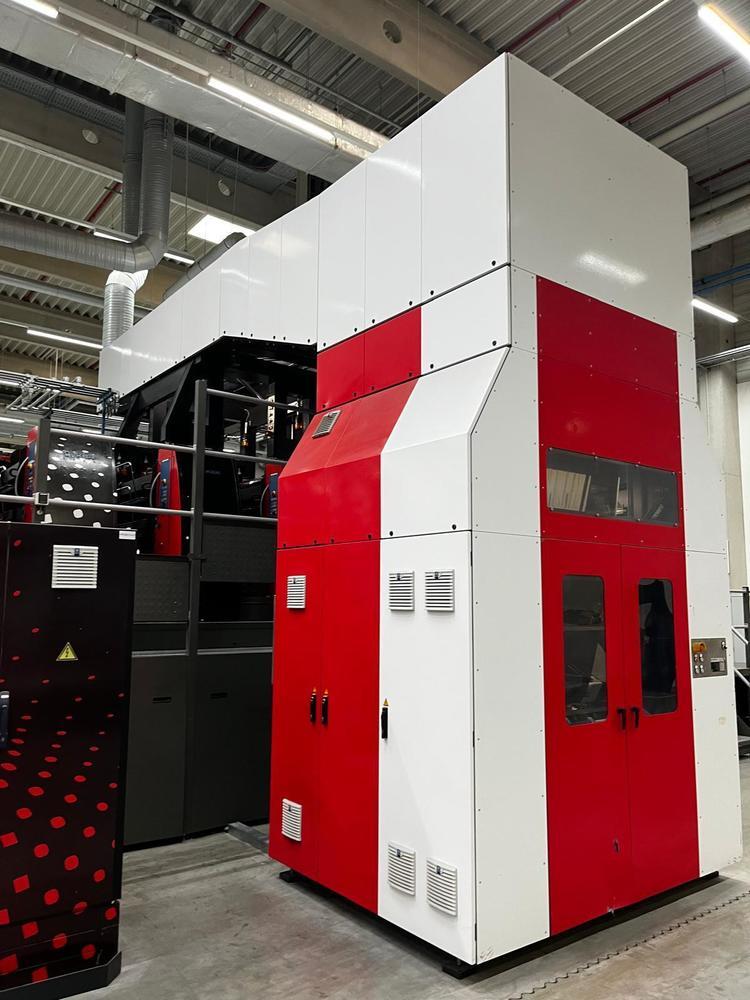

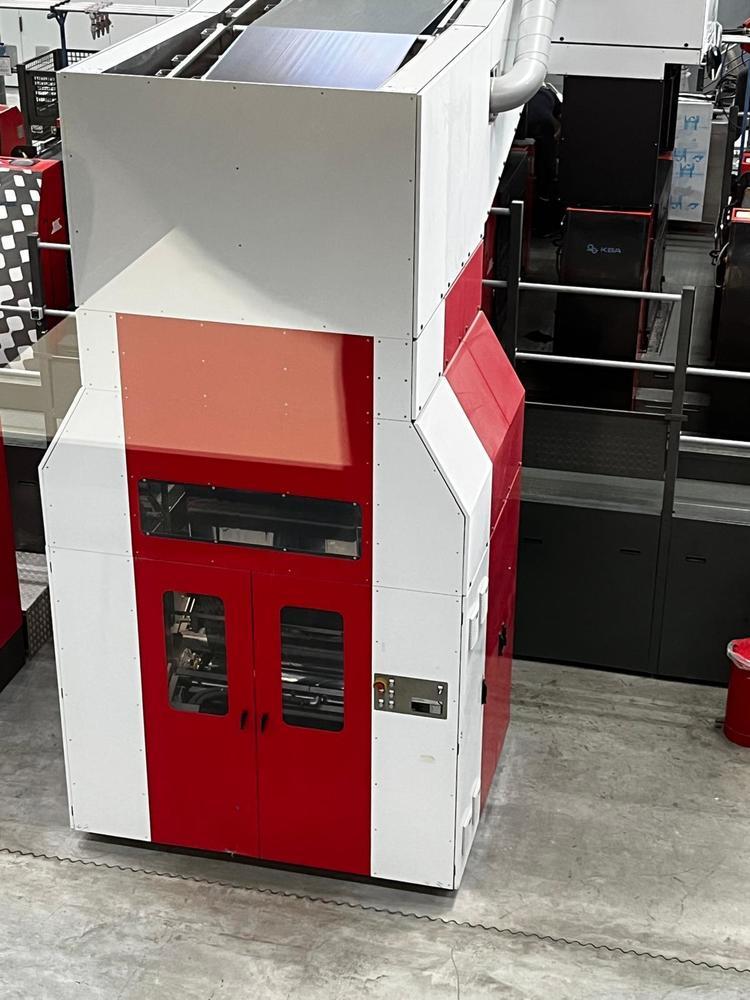

Offer 383654, a VINFOIL INFIGO SF110 from 2015

Key data

Offer 383654
Year 2015

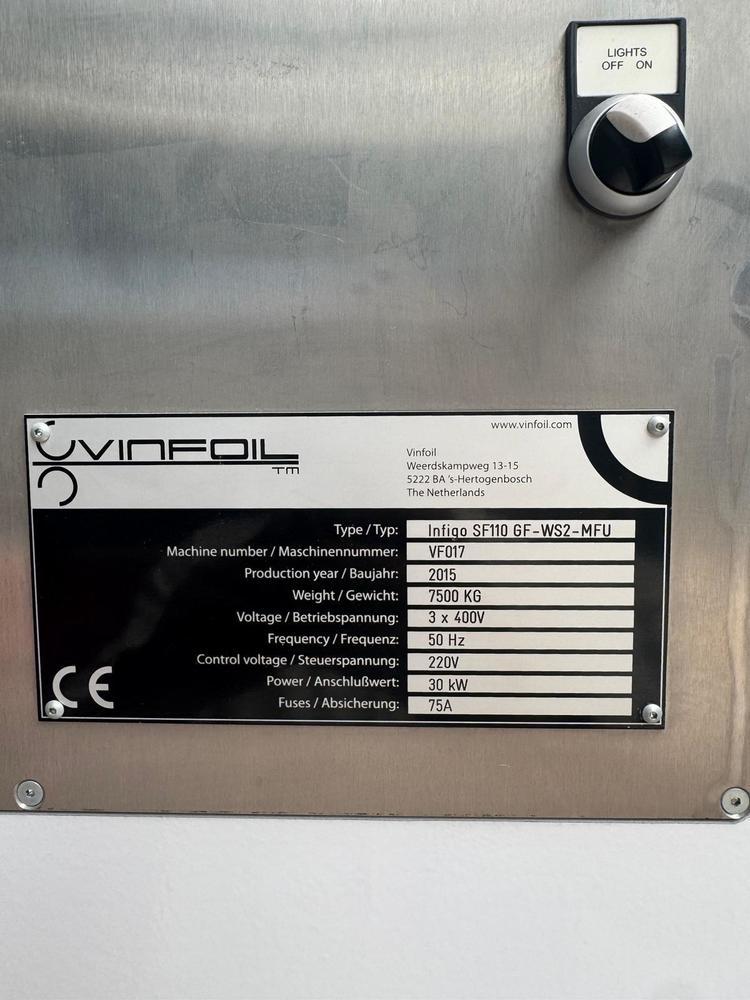

Manufacturer VINFOIL
Model Infigo SF110
Serial no. VF017
Condition Good
Availability Immediately

Condition

01Complete and working

Description

Model Infigo SF110 GF-WS2-MFU

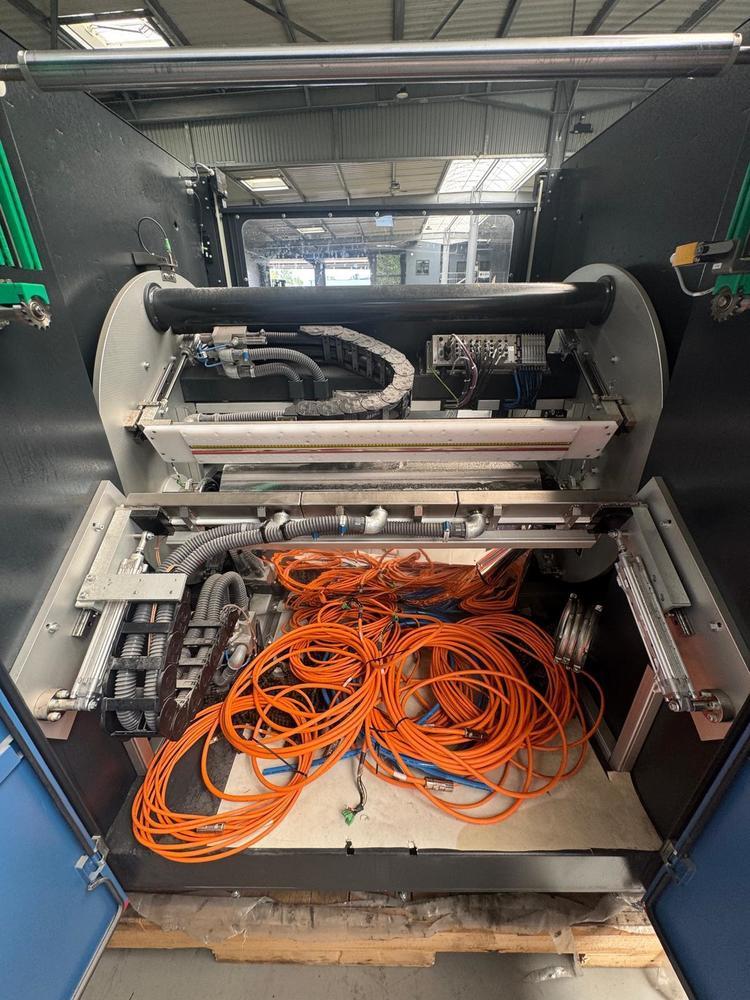

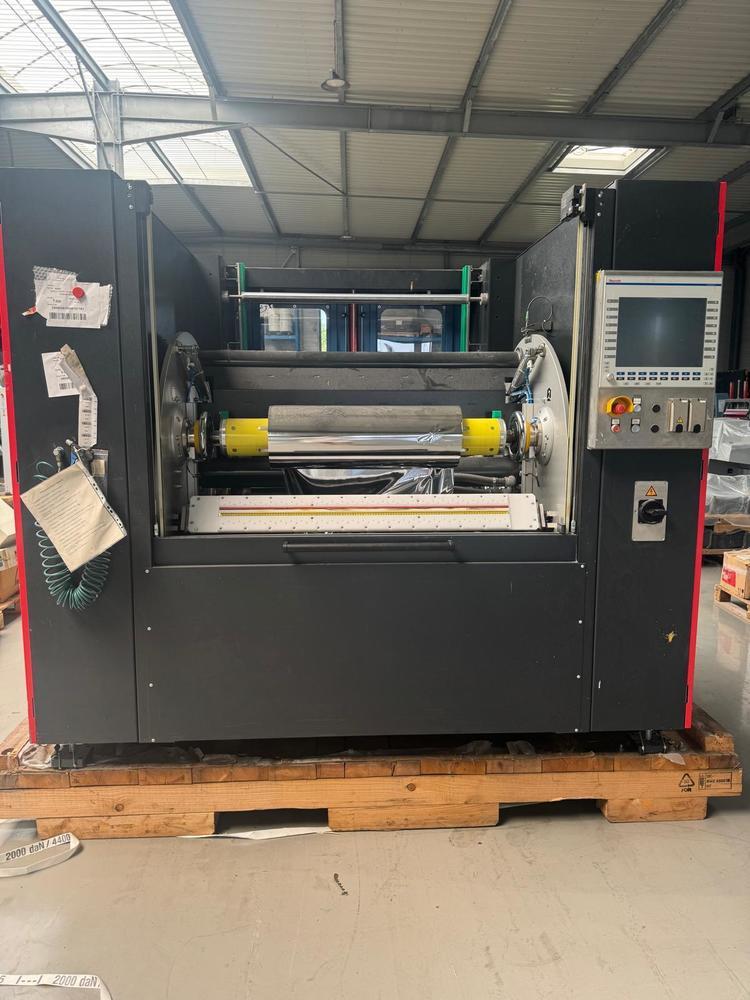

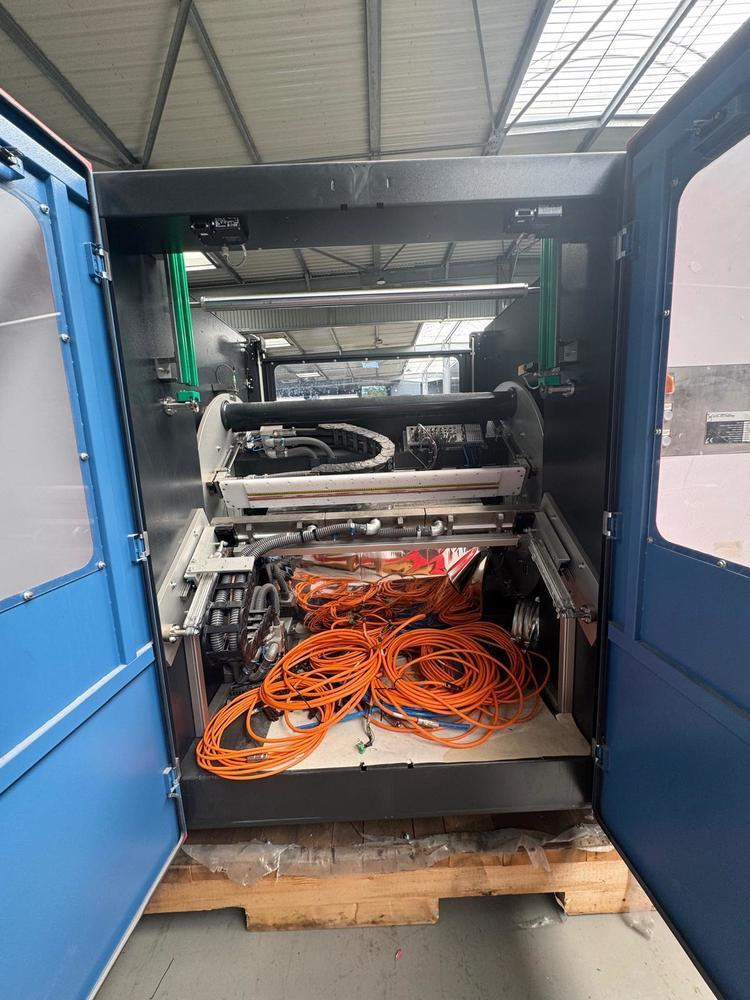

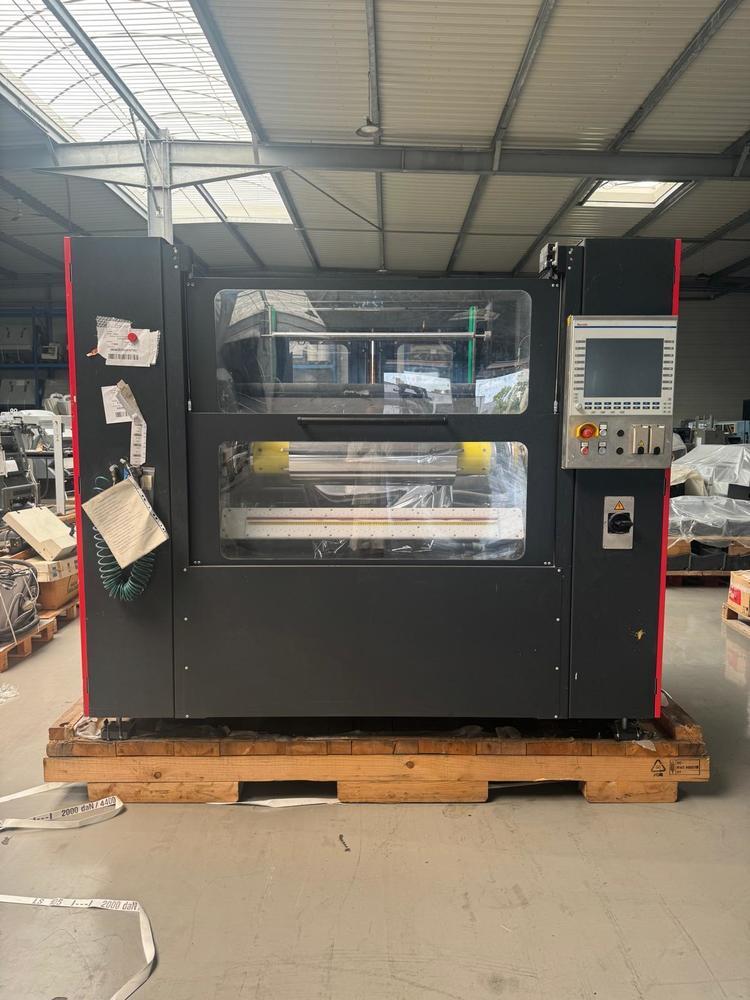

Foil Loading Station (FLS) STANDARD
 In this unit, the operator can prepare, during production, the next job.
 Changing the reels takes place at ground level, which ensures a very easy and safe
operation
 Special dancer roller for levelling the unbalance of the turning foil reel during the
production with high speed and for a perfect web tension
 Electrical roll manipulator for easy loading and unloading the foil reels
 Vacuum bar to prepare the new foil reel for the automatic glue cycles
 During the automatic glue cycles the paper infeed of the press will be interrupted for
maximum 1 minute.
Cross Section (CS) STANDARD
 In the cross section the angle bars and the Web Splitting knives are integrated
 The angle bars can be moved laterally to position the sliced webs at any location
on the printed sheet.
 Motorized foil infeed system from Foil Loading Station to the Cross Section
Direct Foil Drive (DFD) STANDARD
 With the DFD (Direct Foil Drive) rolls the foil web speed is controlled by servo
motors – these motors are controlled by an encoder integrated into the printing
press to ensure a very precise synchronization of the foil web with the speed of the
printing press
 Electronically adjustable web tension
Web Splitting (WS) STANDARD WITH 1 KNIFE
 With this technology foil consumption can be reduced by 65%
 The foil web can be split up to a maximum of 5 webs. The width of each web is
adjustable. The total width of the foil core is the total of all sliced webs.
1 knife is delivered standard. Option up to 4 knives
 Automatic foil changeover still available
Multiple Foil Use (MFU®) STANDARD
 MFU® is redirecting the cold foil web back into the printing nip after transferring
parts of the metallic layer for the first time. With this technology a foil web can be
used up to 3 times to generate optimal utilization of the cold foil reel.
 The use of MFU® can reduce the cold-foil consumption up to 85 %
 2 MFU® decks with horizontally movable guiding rods for lateral adjustment of the
foil webs position
 MFU® Decks can be moved in vertical direction for circumferential adjustment of
the foil web position
 Automatic foil changeover still available
Foil Waste Cutter (FWC) STANDARD
 After the printing process, the used cold foil is exhausted to a pipe system and
shred to small pieces
 The shred foil is exhausted from the process through a pipe system to the material
separator
 No rewound cold-foil cores to dispose
VIFOP® – Vinfoil Intelligent Foil Optimizing Program - STANDARD
With this on-line software, foil consumption is calculated by just uploading the pdf with the
layer of the cold foil.
Very useful for management and prepress.
With this data the Vinfoil Infigo® SF110 is automatically set
Specifications Vinfoil Infigo® SF110GF
Power supply / air supply
 Power voltage 400 V / 50 Hz
 Power requirement 40kVA
 Fuse protection at 400 V 3 x 63A
 Air supply 8 bar
 Air flow rate (including MFU®) 1.440 ltr/min
 For each extra WS system +360 ltr/min
Compressed air quality according to ISO 8573/1
 Filtration on solid parts class 4
 Filtration on oil class 4
 Dry air class 4
General specifications
 Total length (foil loading side) 2500 mm
 Total width 1850 mm
 Total height 4000-4600 mm
(depending on type machine and elevation height)
 Total net weight 7000 kg
Advice for ceiling height
The minimum space above the printing units of the press required for the installation of the
Vinfoil Infigo® SF110GF must not underrun 2500 mm.
Specifications cold foil reels
 Maximum foil roll diameter 450 mm
 Foil core diameter 6“
 Maximum foil width in loading station 1100 mm
 Minimum foil width in loading station 300 mm
 Minimum foil width after the cutting device (optional) 100 mm
Specification reel cores
 Basic material Laminated paper core
 Core winding geometry Spiral
 Min. core thickness 13 mm
 Moisture content according to DIN 11093--3 at 130°C 8%
 Radial pressure resistance Up to 340 N/cm
Speeds
 Max. speed 18.000 sheets/hour
(depending on press specs and settings,
paper/carton, foil, adhesive and blankets)
 Maximal Quick Start speed of the printing machine
 at Web Splitting 3.000 sh/hr
 at MFU® 3.000 sh/hr
 at full web 5.000 sh/hr

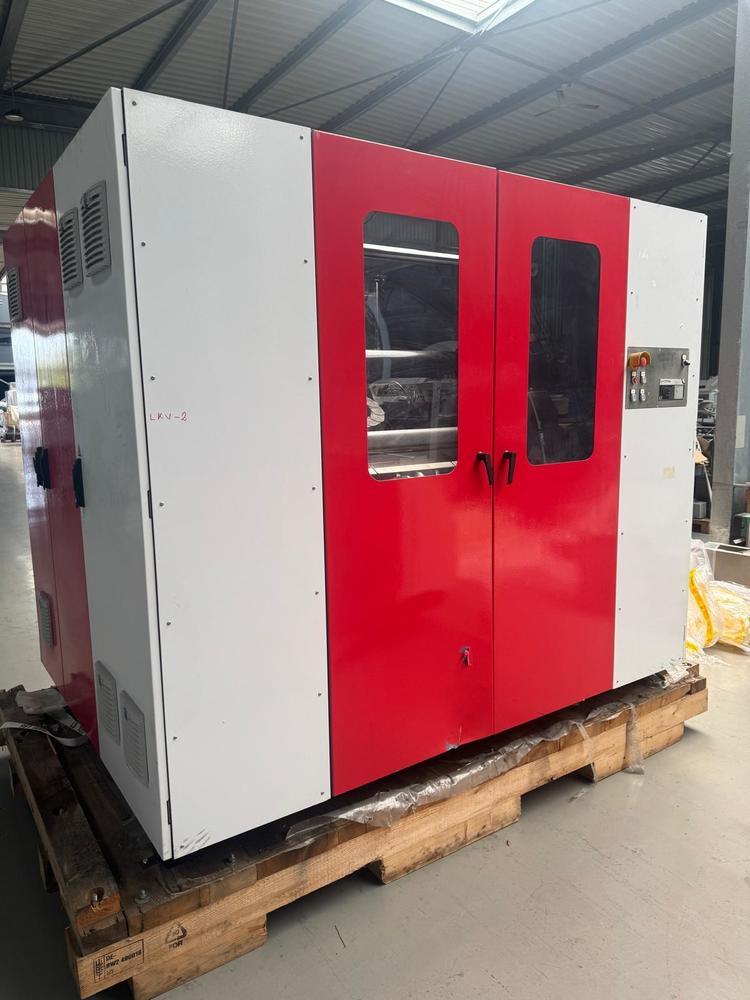

Specifications air filter system
 Filter system (L x W x H) 1085x1160x3232 mm
 Power voltage 400 V / 50 Hz
 Total power supply 7,5 kW
 Air supply 8 bar
 Air consumption 3,5 l/min
 Maximum tube length between Vinfoil and the filter system 25 m
 Total net weight filter system 1500 kg

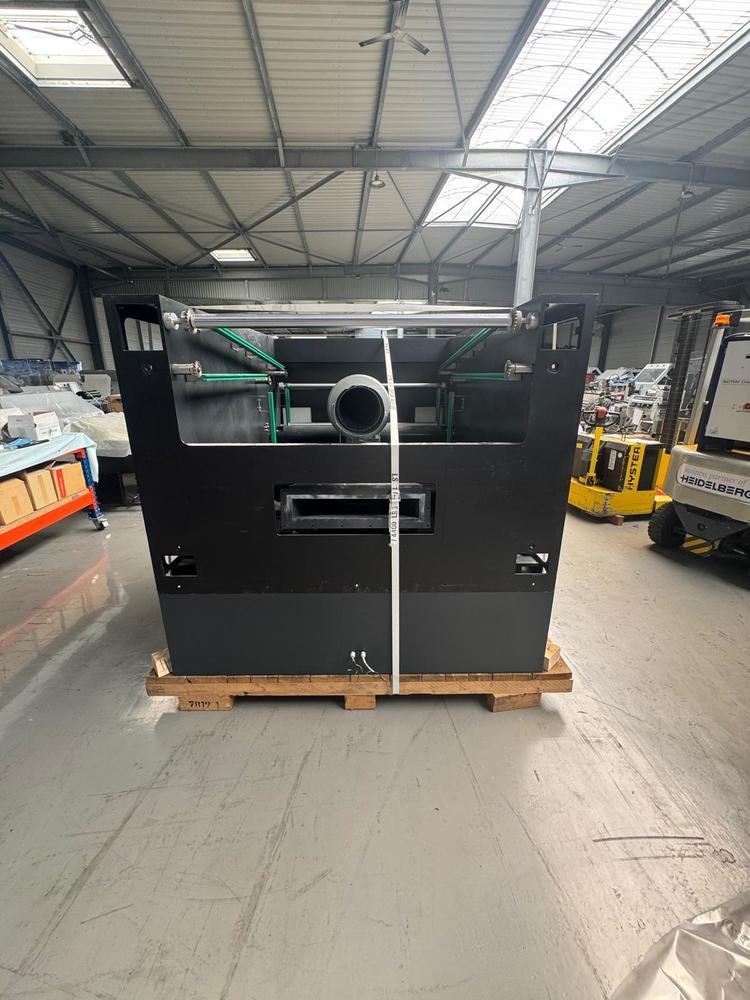

Material Separator with frame
 Material separator with frame (L x W x H) 2350x1200x3955 mm
 Power voltage 400 V / 50 Hz
 Total power supply 1,5 kW
 Weight 1000 kg

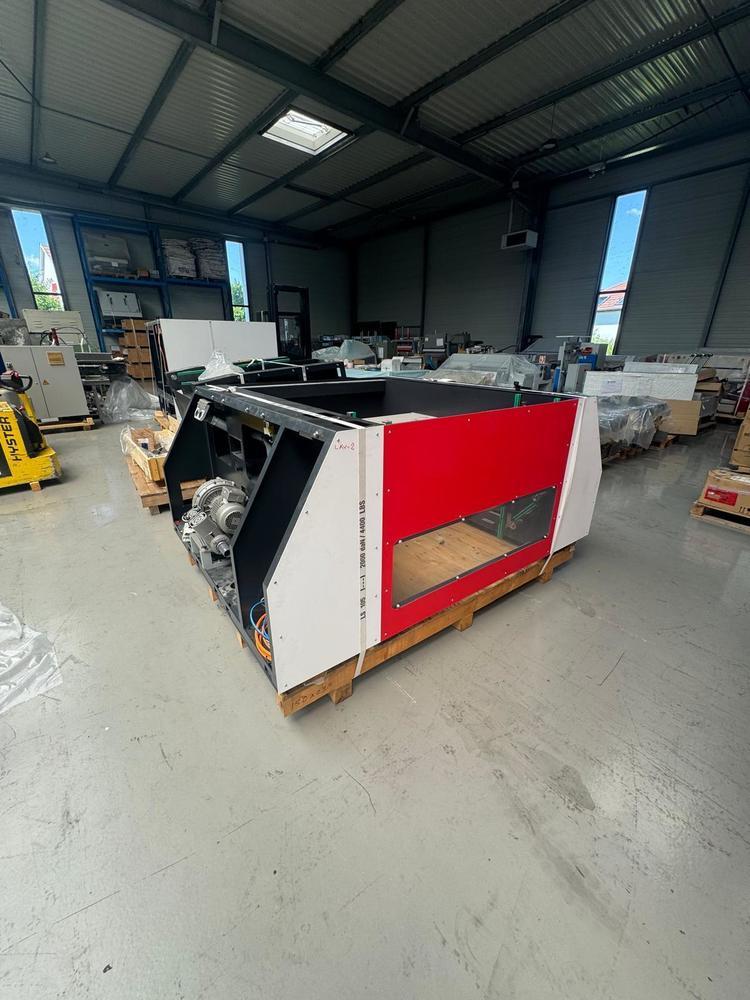

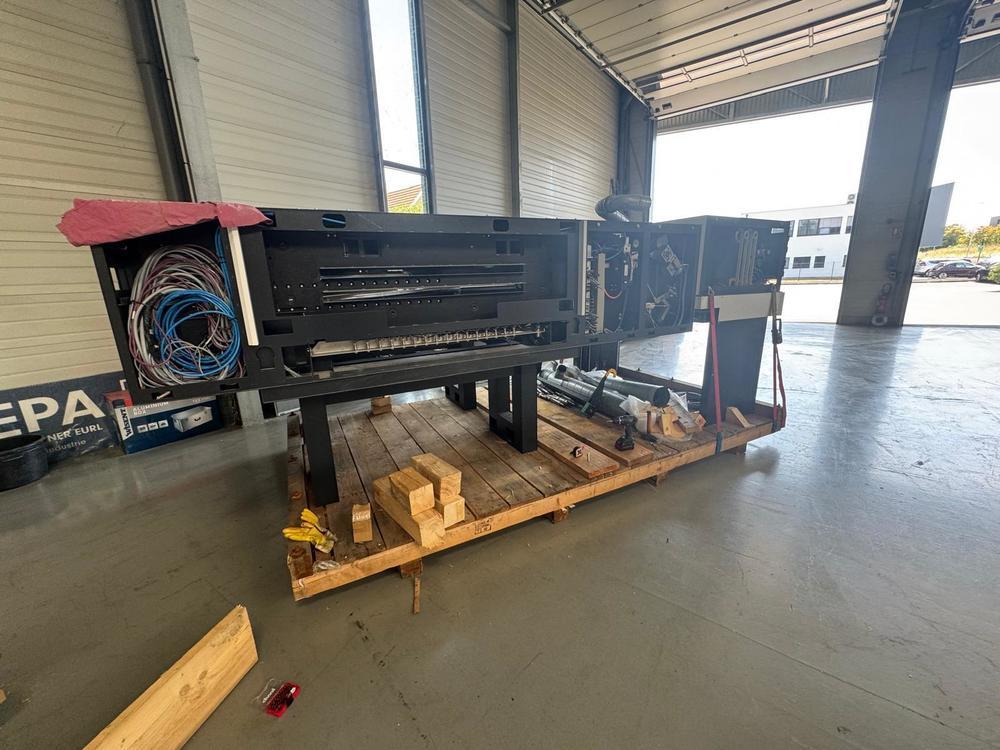

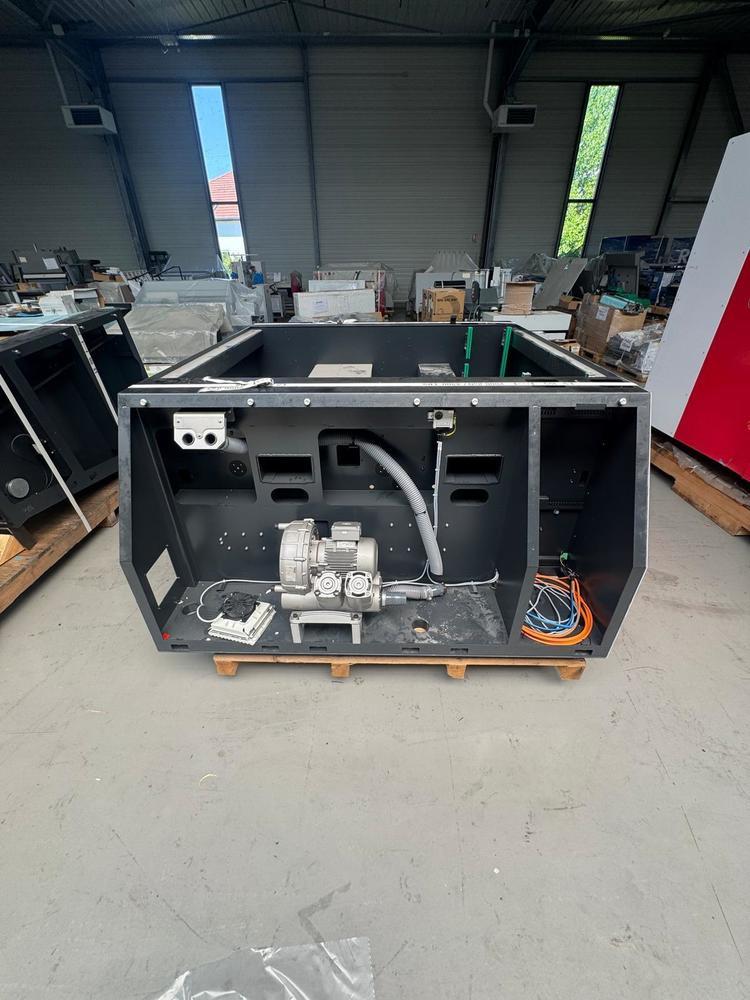

Dismantled
In stock

Price

EUR 98.500 FCA

FCA · Incoterms · bank transfer or L/C
