Offer 380753
WILL E.C.H. SLK 480 from 2005
Sheeters
Offer Details
| Offer Number: | 380753 |
|---|---|
| Brand: | WILL E.C.H. |
| Model: | SLK 480 |
| Manufacturer | WILL E.C.H. |
| Condition: | Good |
| Year: | 2005 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |

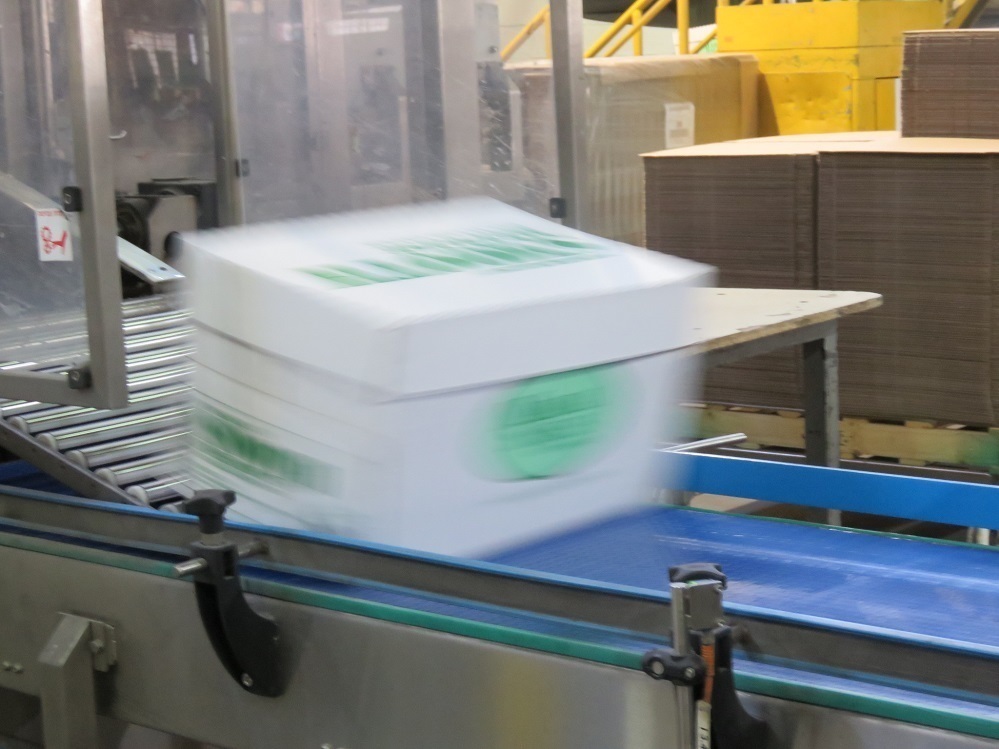

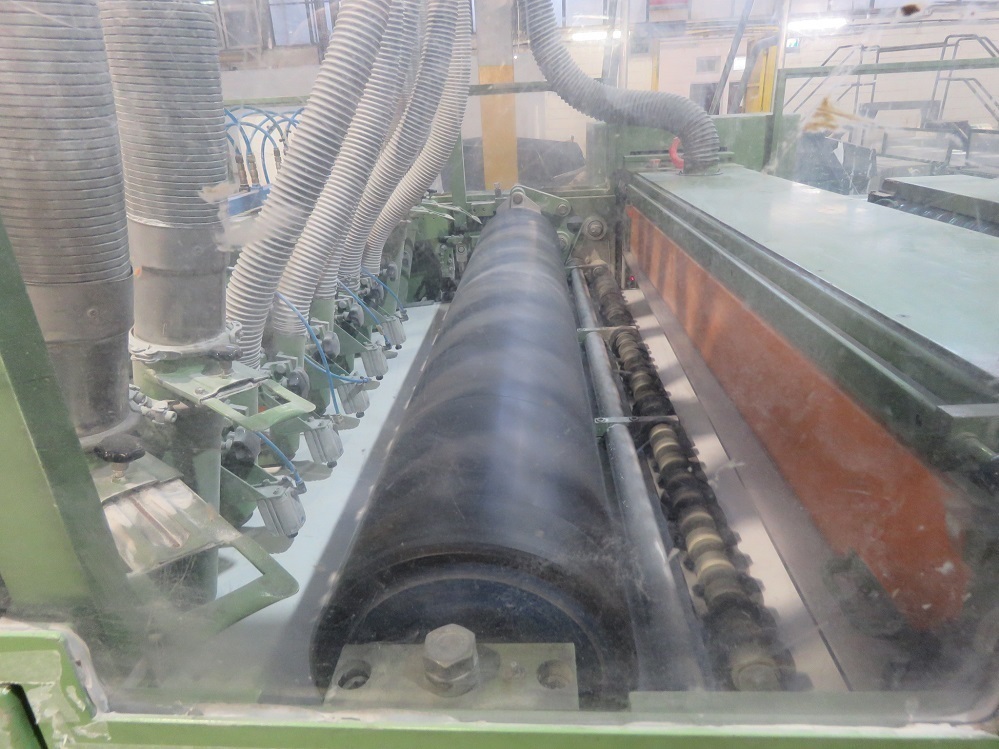

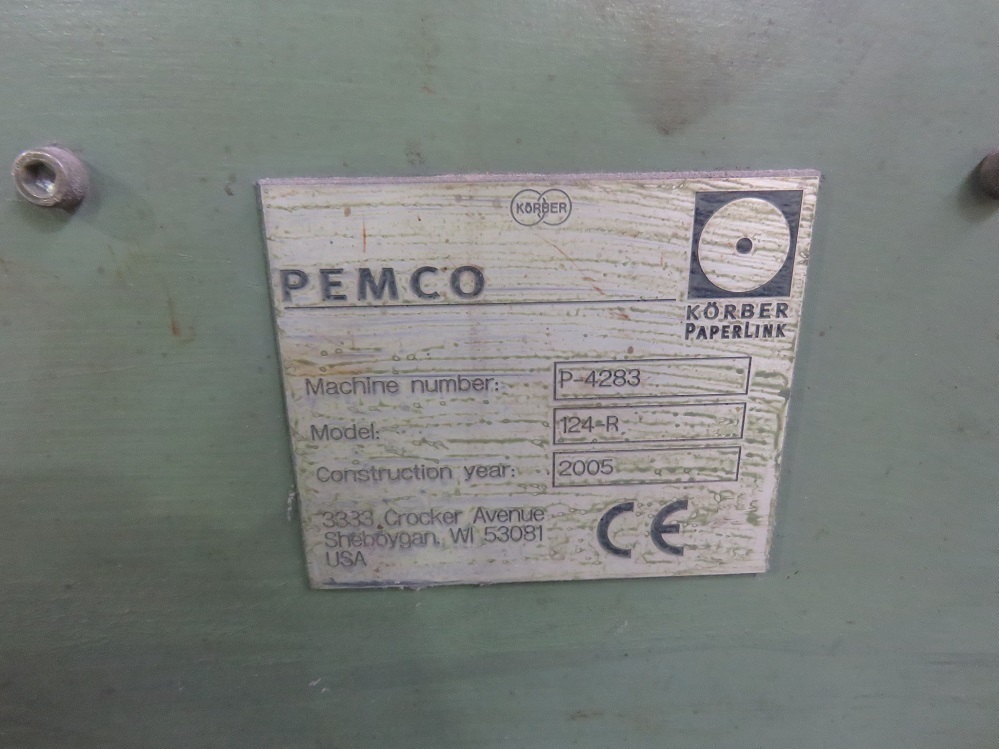

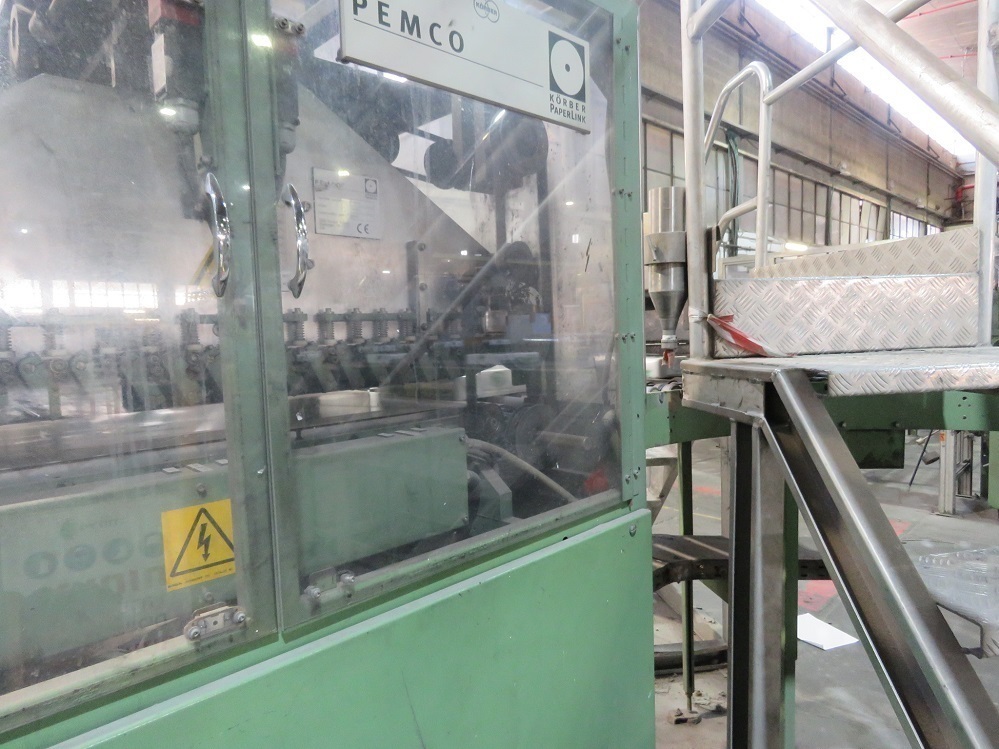

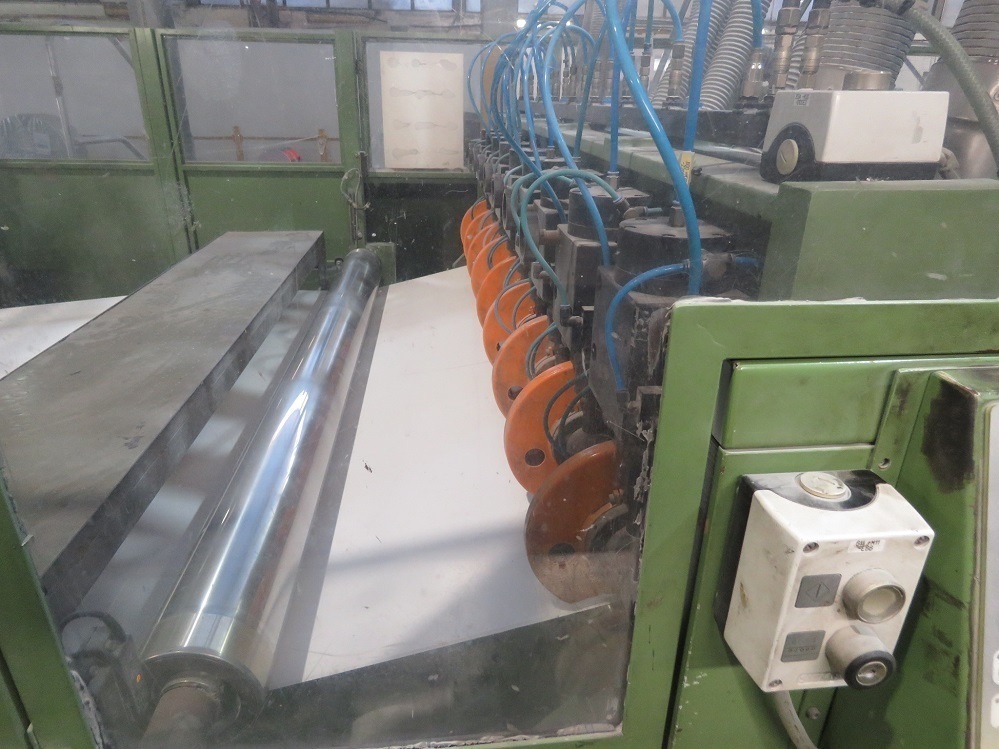

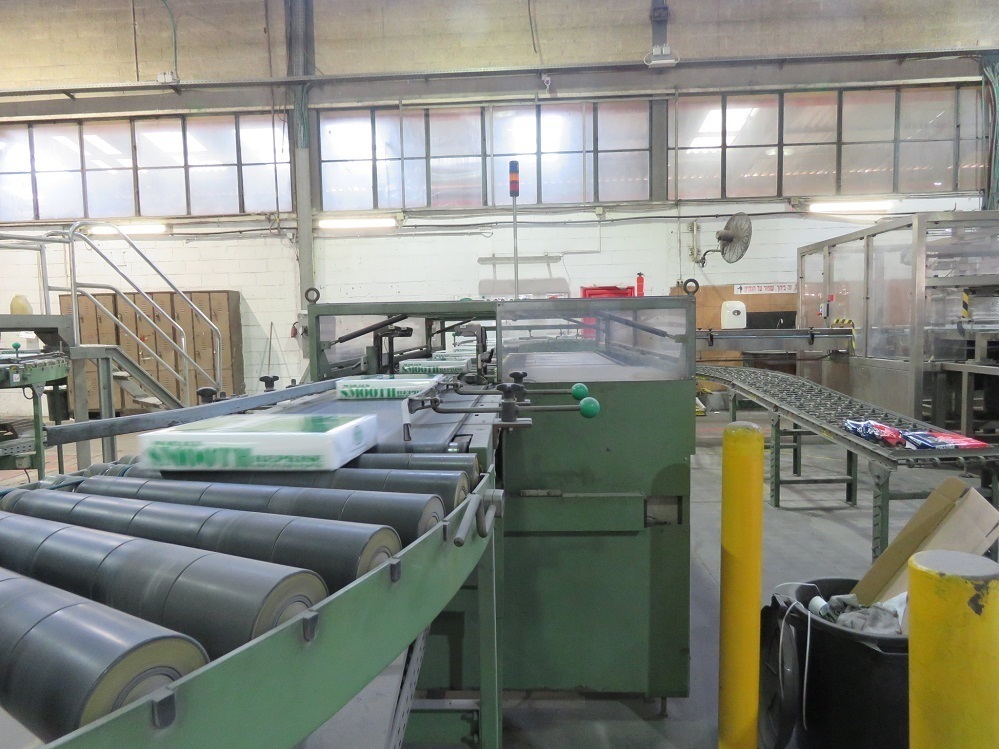

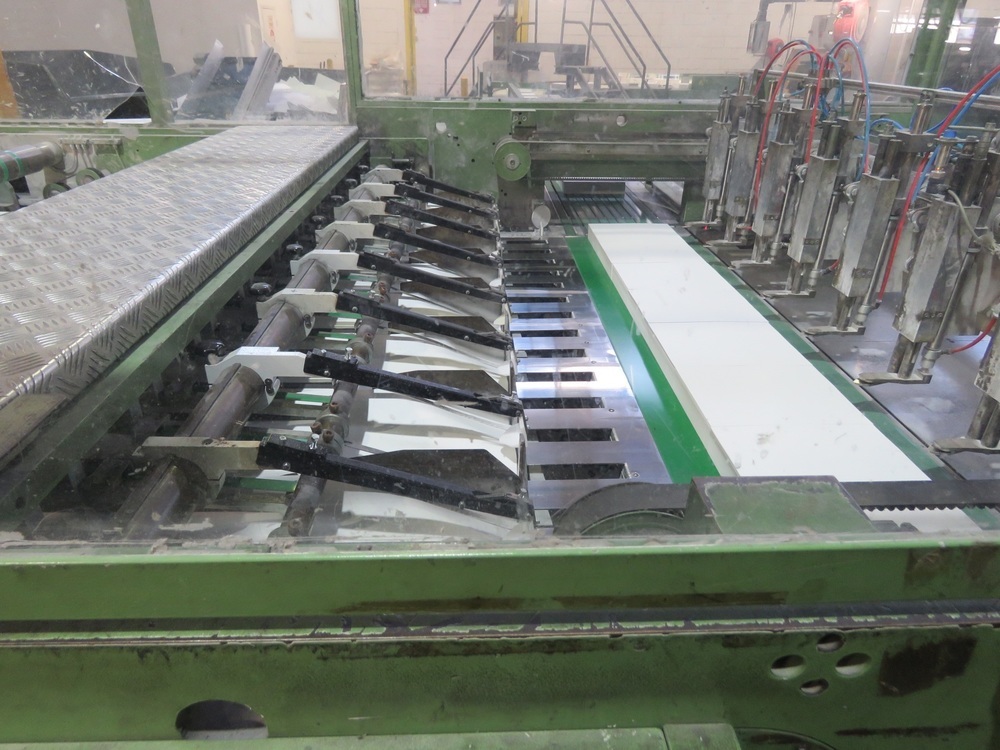

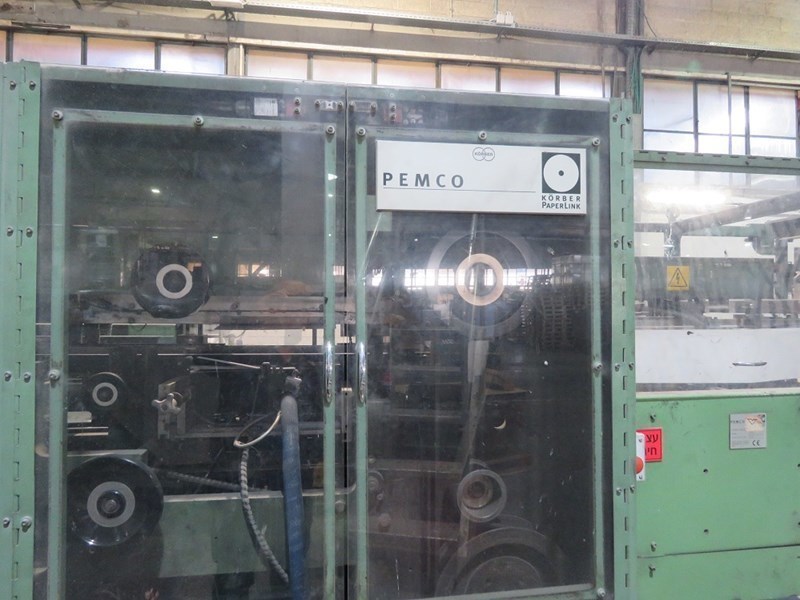

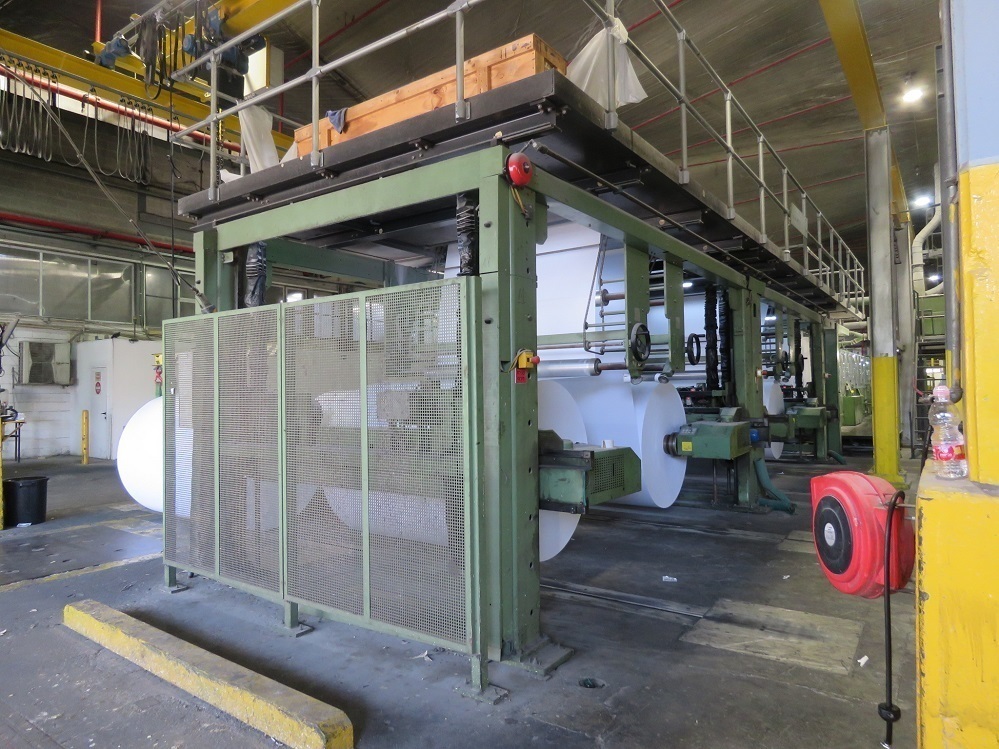

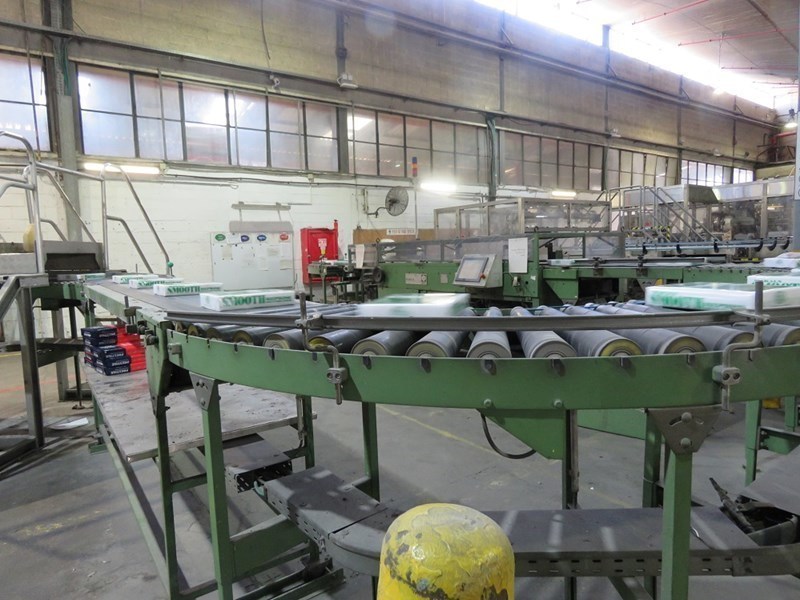

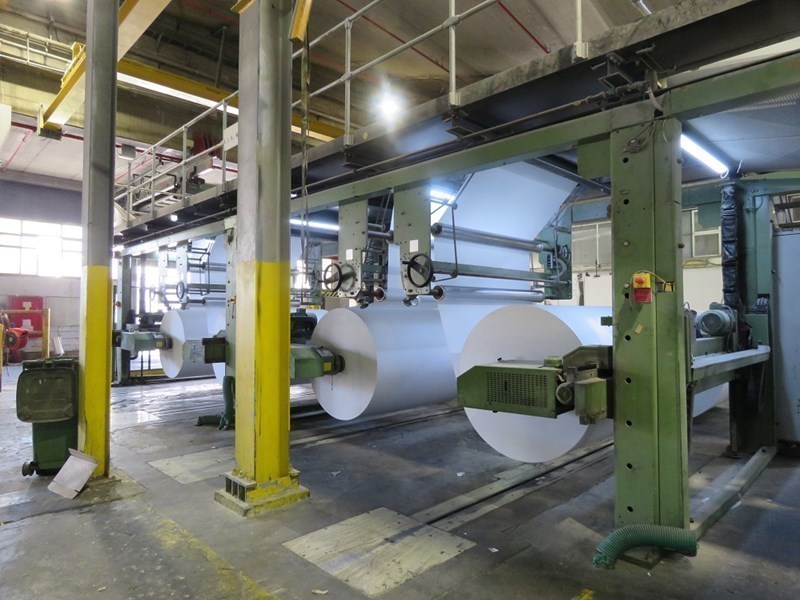

| Description: | 1.1. Paper qualities ( cut & wrapped) – copy / offset paper weight 70-90 g/m².<>1.2. Size 8.5” X 11” long grain<>17” X 11” short grain<>A4 (210 X 297 mm ) long grain<>1.3. Height of ream 48 – 63 mm.<>1.4. Wrapping material<>- inside / outside PE – Laminated Bleach Kraft paper 90 g/m².<>- inside PE - Laminated Bleach Kraft paper 110 g/m².<>- Clear Wrap with PP film.<>- outside Polyester - Laminated Bleach Kraft paper 90 g/m².<>2. Will Cut-Size Sheeter- 8 pockets. Type 480 SLK 175.8-L.<>2.1. Number of unwinds – 4 pc.<>2.2. Chuck diameter – 6".<>2.3. Roll diameter – 1500 mm.<>2.4. Working width – 1750 mm.<>2.5. Production speed – 370 m/min.<>2.6. Max package discharge:<>-84 reams / min (8.5” X 11”– 500 sheets / ream )<>-42 reams / min (17” X 11”– 500 sheets / ream )<>-84 reams / min ( A4 – 500 sheets / ream )<>3. Ream wrapper Pemco Model 34 HSL. 2005.<>4. Ream inspection/rejection system Pemco Model 124.<>5. Ream stacker/accumulator. Lead engineering (local). <>6. Case packer/lidder. Lead engineering (local). <>6.1. Formation single and double stacks<>- 10 reams / case – 8.5” X 11”<>- 5 reams / case – 17” X 11”<>- 5 reams / case – A4<>6.2. Carton design<>- E.Flut white top.<>- Carton with lid board and side flap at the narrow side<>in case of 5 reams and 10 reams in one carton.<>7. Hot-melt group type NORDSON.<>8. Case strapping machines.<>9. Connection Conveyors. Pemco + Local.<>10. Palletizer. |
Technical details
| Max. web width | 1750 mm |
|---|---|
| Max. reel dia. | 1500 mm |
| Mech. speed | 370 m/min |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request

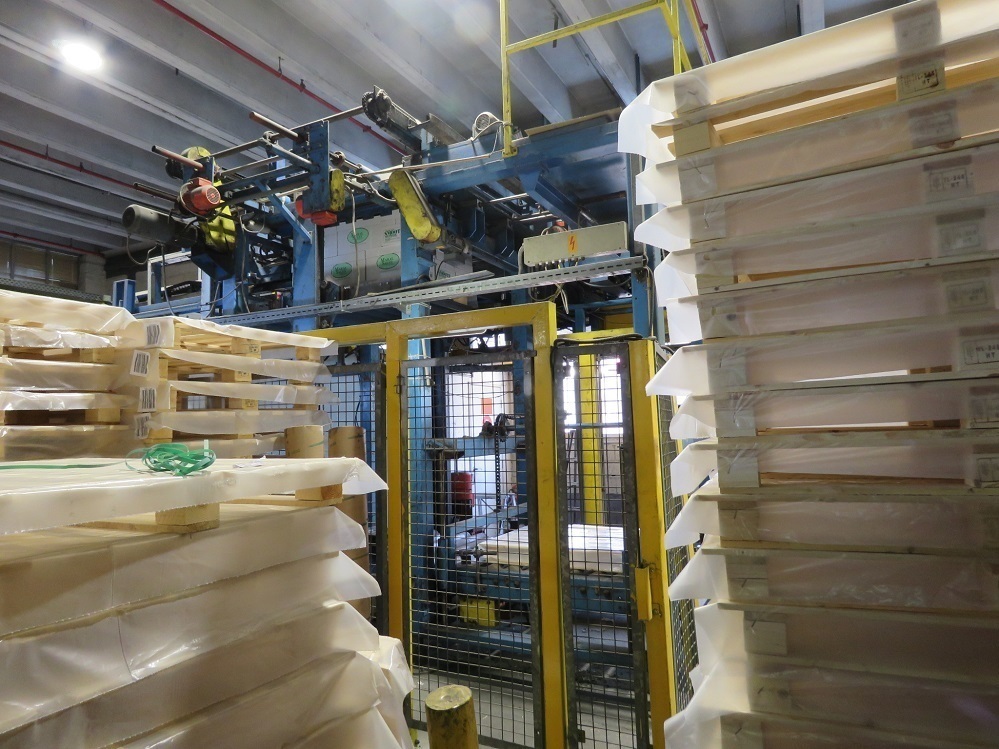

Images
