Offer Number |
379992 |
Manufacturer |
KBA-RAPIDA |
Model |

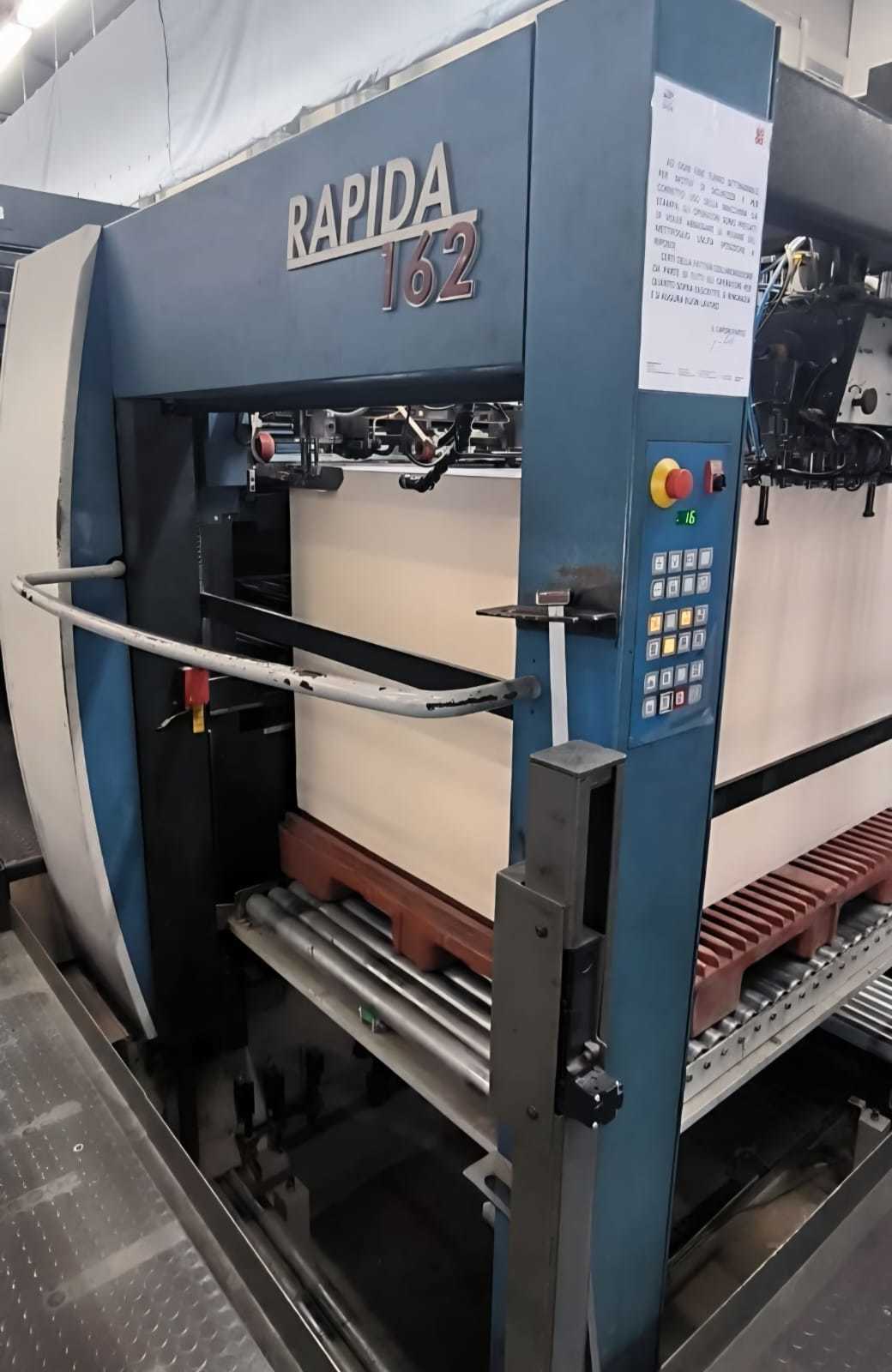

Rapida 162-7+L |
Year |
2007 |
Availability |
May 2026 |
Counter |
258 mio |
In Production |
Yes |
Upon Request
Description

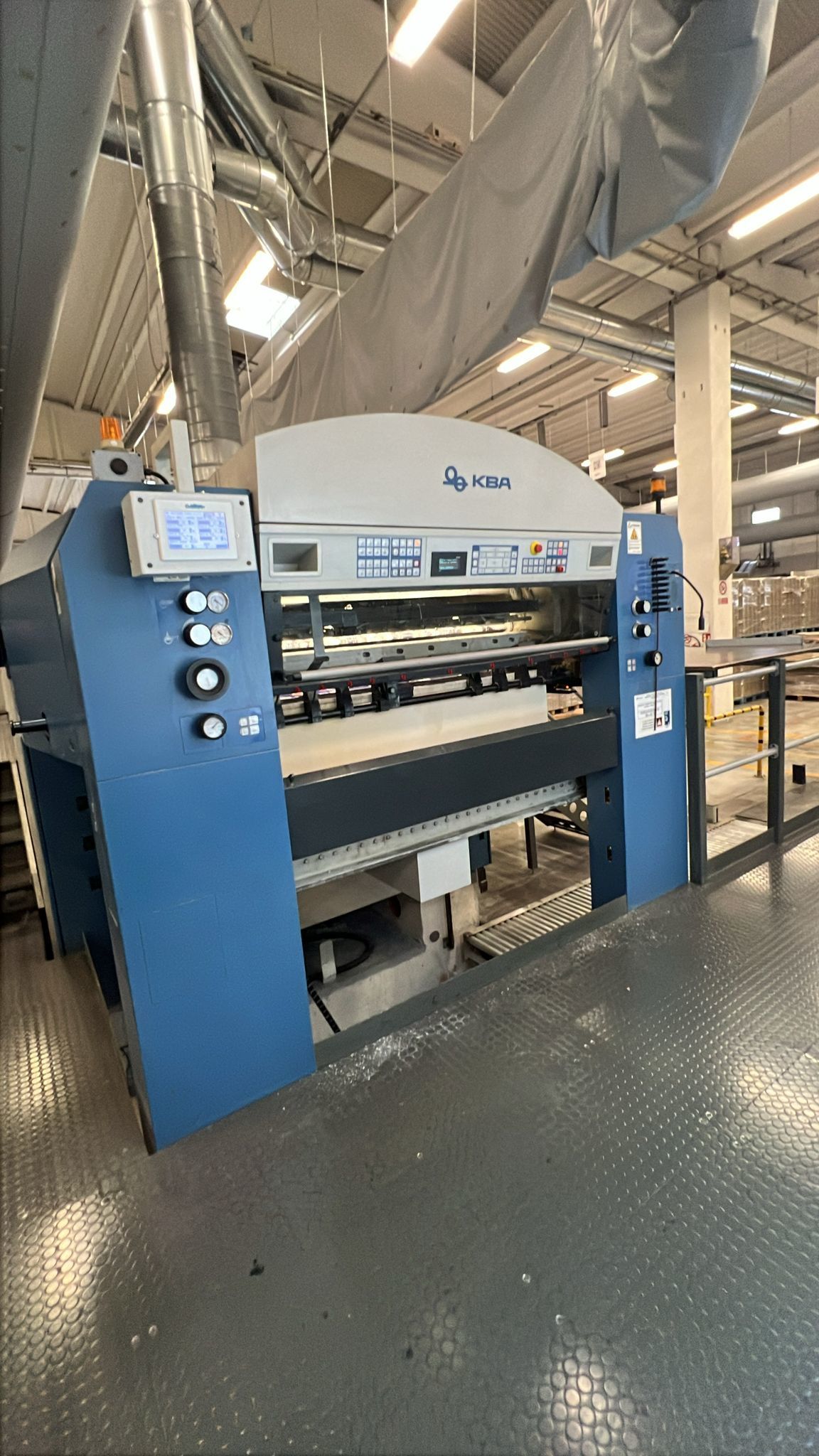

Densitronic-S spectrophotometer<>ACR Video register control<>ALV3 - Tripple extended delivery 3900 mm<>Press raise 420 mm <> Hybride package<>Washtronic package for UV interdecks <>Sheet size: Maximum: 11200 x 1620 mm<>Field of application: 60 gr/m2 – 1.6 mm<>Mechanical speed: 13.000 s/h<>KBA Nonstop Automatic feeder with Knipser logistic system <>Kersten high performance antistatic feeder<>Dust exhaust<>Intercom<>Inking rollers for conventional inks<>Inking unit temperature control<>Technostrans Beta C High tech combi cooling device<>Ink blowers for special colours <>Washing devices for changing ink types<>Hickey Picker<>Harris&Bruno coating unit with chambered ductor blade and Anilox roller with UV varnish equipment<>Tresu varnish supply- and cleaning system for water based or UV varnish<>Nonstop delivery with rollo<>ACS Cleaning system<>Grafix UV/ IR/ Hot air dryer<>2x Grafix UV Interdeck possible to install in 4 position<>Special dryer on the delivery mod. G55K-(LH3-H3)-(LH3-H3)-H6-<>(H6)+3UVF160-CR-W<>Cip-Link online<>VARIDAMP alcohol dampening<>Colortronic (Register, Dampening and Ink Remote System Control)<>CX package for cardboard up to 1.6mm<>FAPC automatic plate change Antistatic (Kersten)<>Ink temperature control water cooled<>TECHNOTRANS combi refrigeration and ink temp control<>WEKO AP 260 sprayer<>Rietschle Air Cabinet<>2 Anilox rollers (60 and 80) 2 sets of grinding rollers, one of which is non-rubberised
Technical Details
- Max. paper size: 1120x1620 mm
- Smallest size: 600x920 mm
- Image area: 1110x1620 mm
- Plate size: 1245x1630 mm
- Speed: 13.000 sh/h
- Power consumption: 195 kw
- Length: 18350 mm
- Width: 4710 mm
- Height: 2950 mm
- Weight approx.: 131.000 kg
- Colors: 7 + L
- HS Code: 84431300 - HS Codes Classification of Other offset printing machinery
Offer Details
- Brand: KBA-RAPIDA
- Model: Rapida 162-7+L
- Condition: Good
- Year: 2007
- Country: Europe
- Incoterm: EX Works
- Cylinders Condition: damage_free
- Under Power: Yes
- Still in production: Yes
- Test possible: Yes
- Complete and in working condition: Yes
- Available: May 2026
