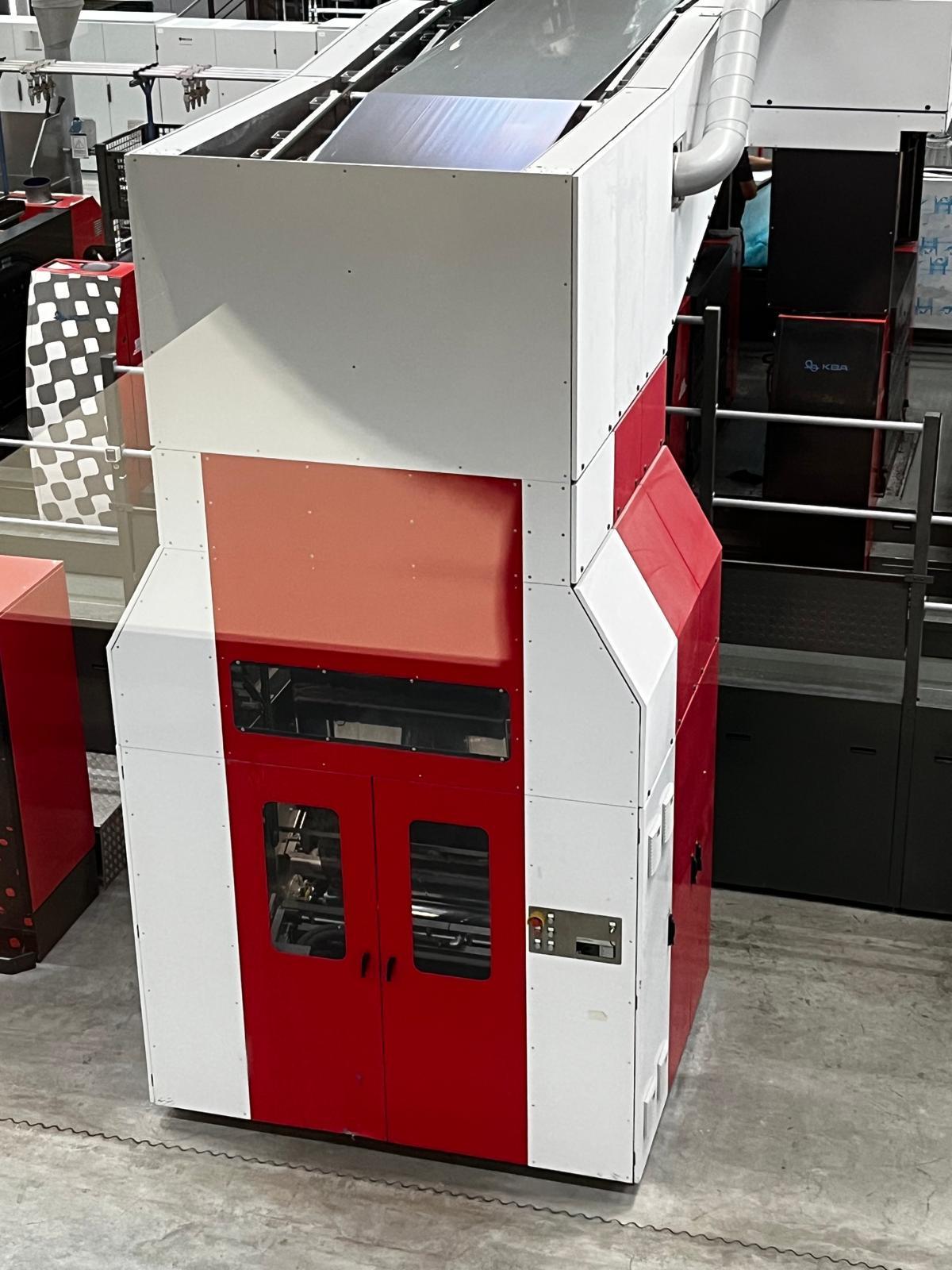

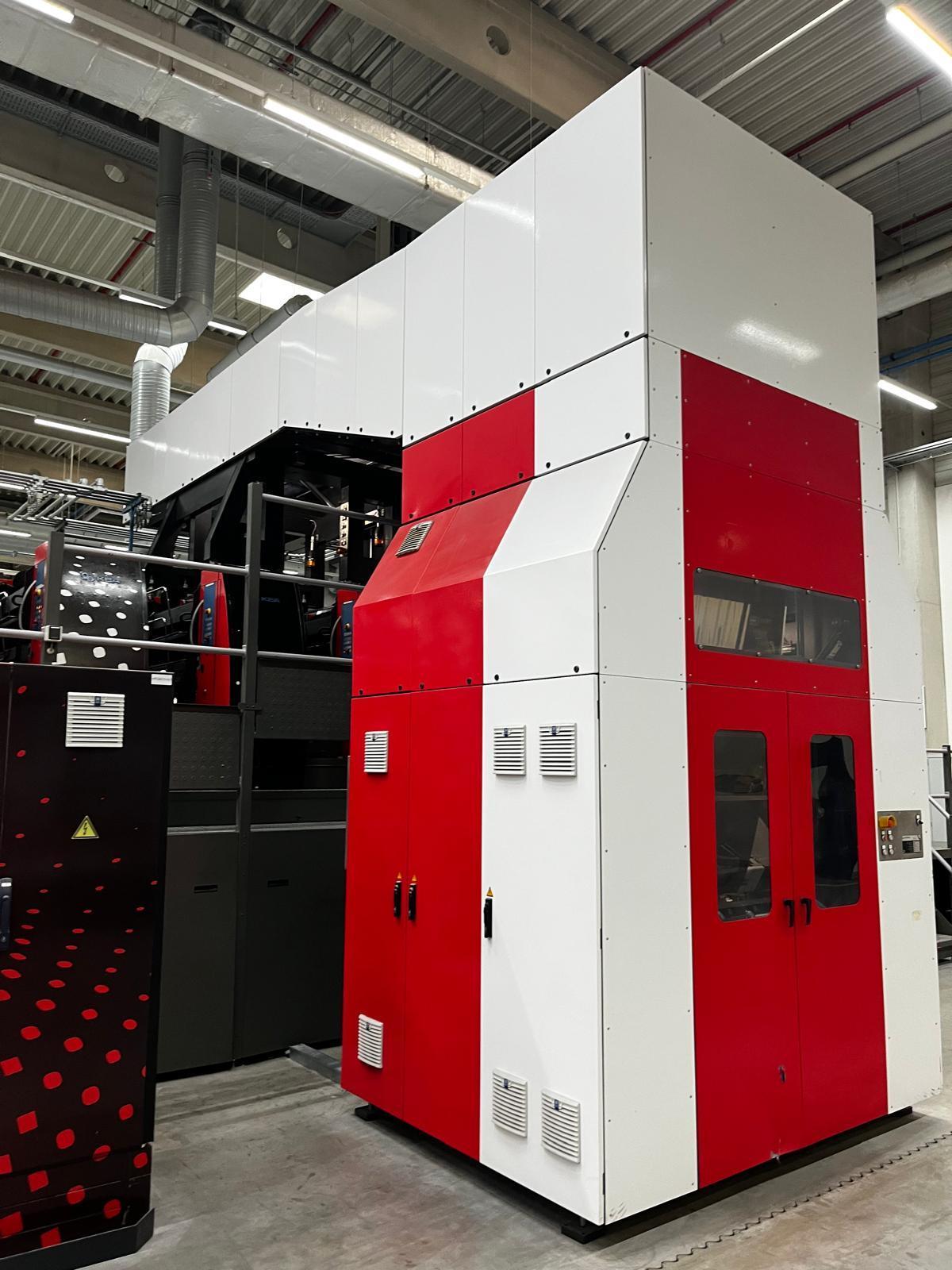

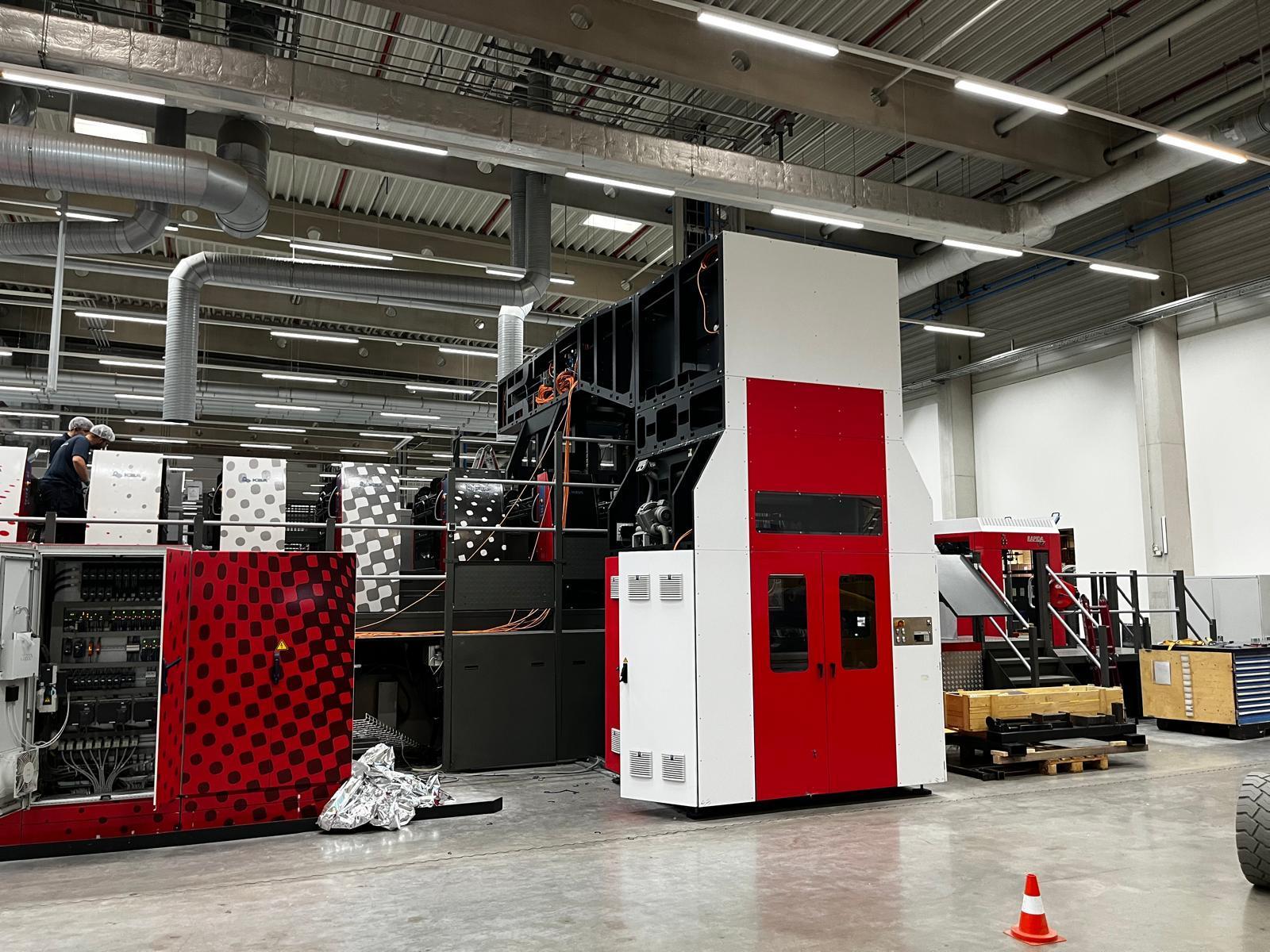

Offer 383654, a VINFOIL INFIGO SF110 from 2015

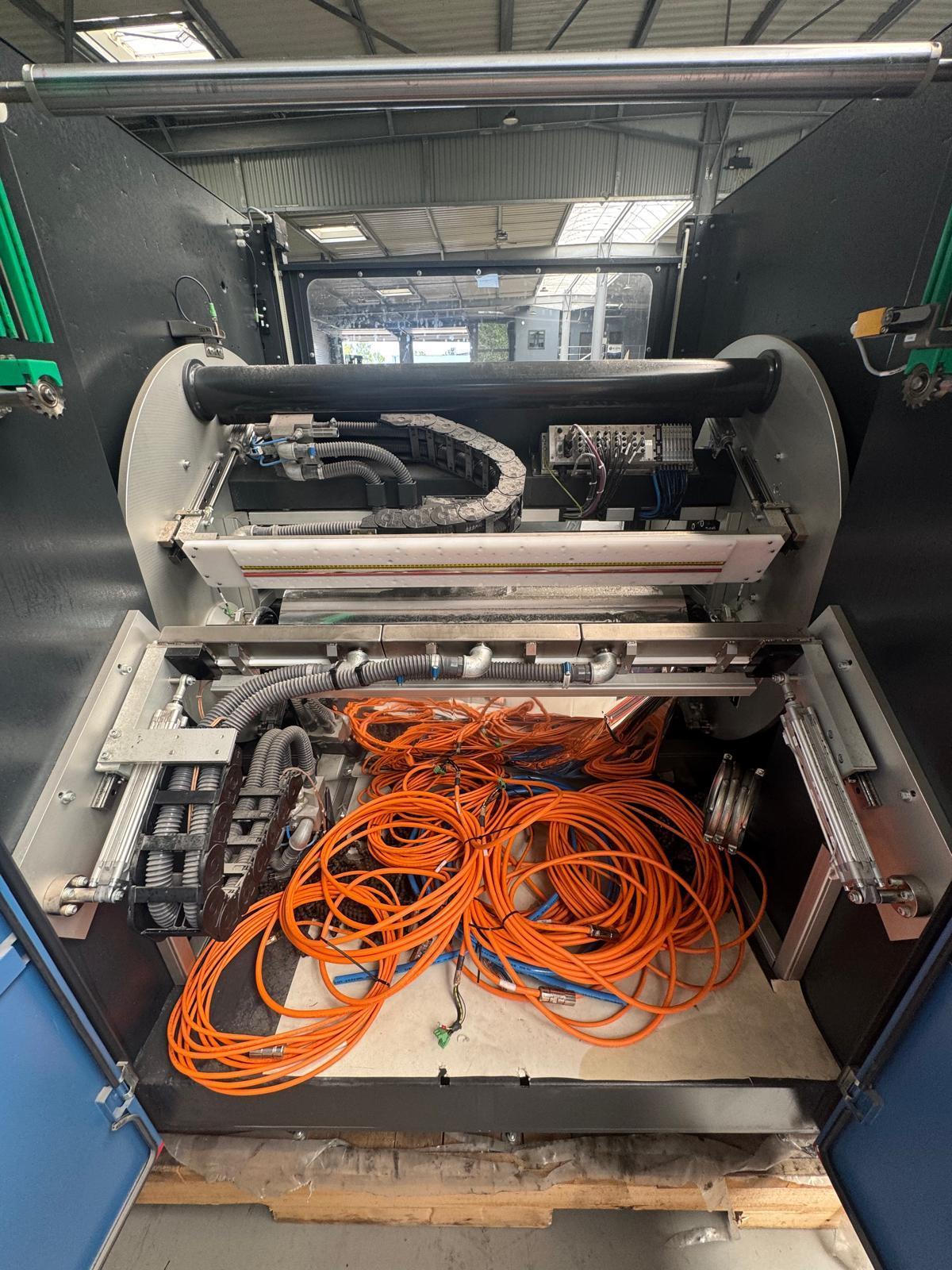

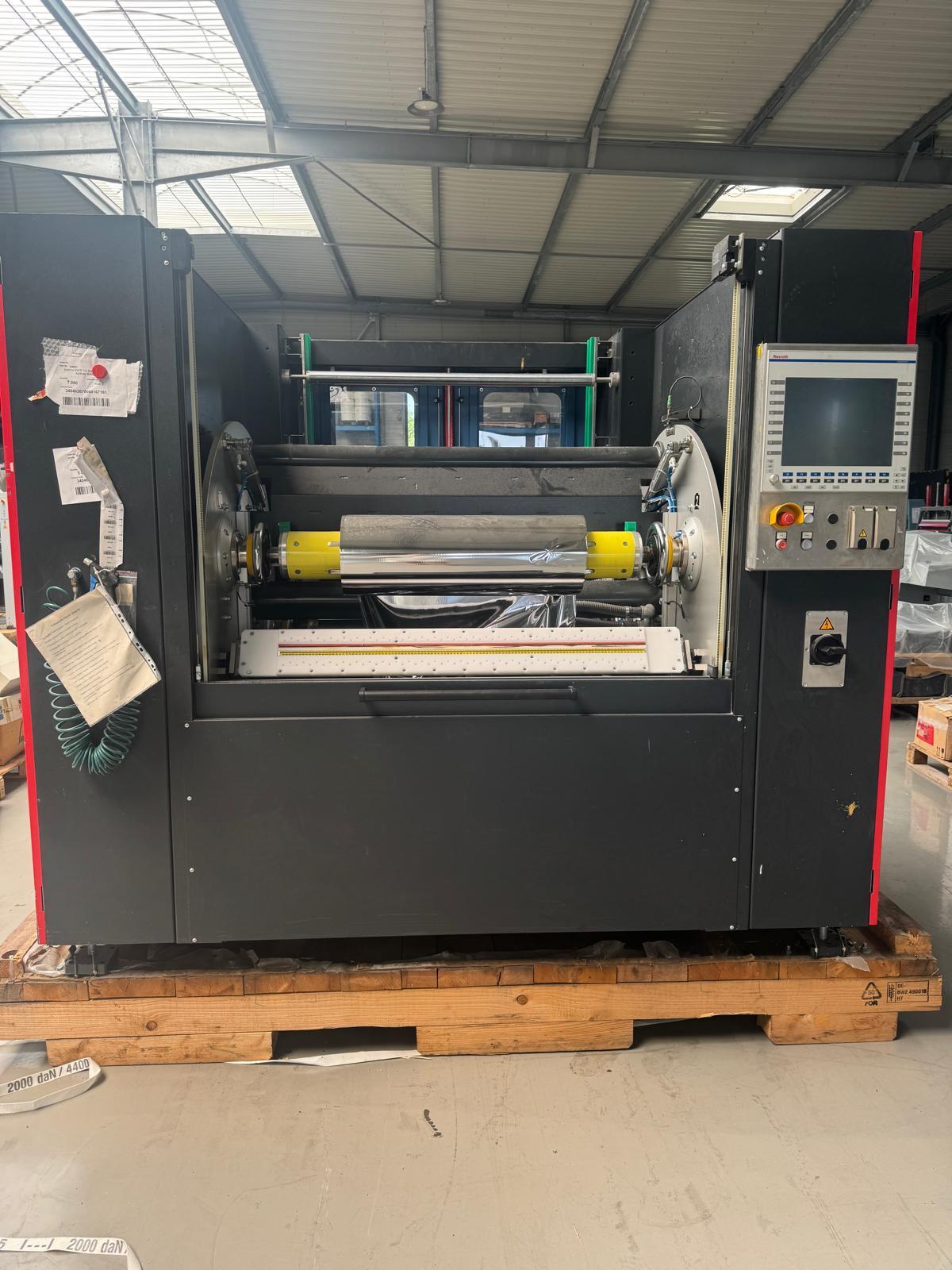

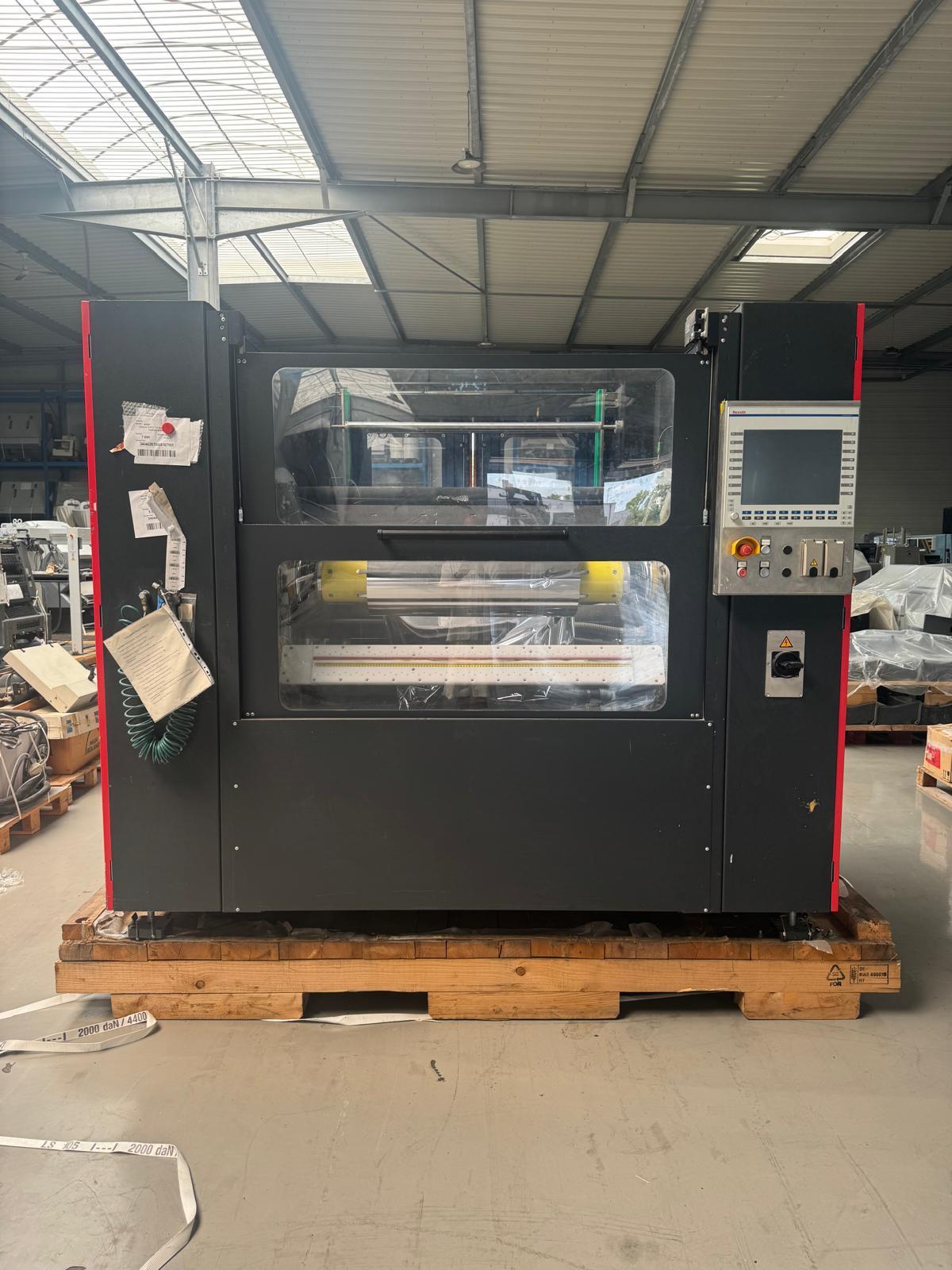

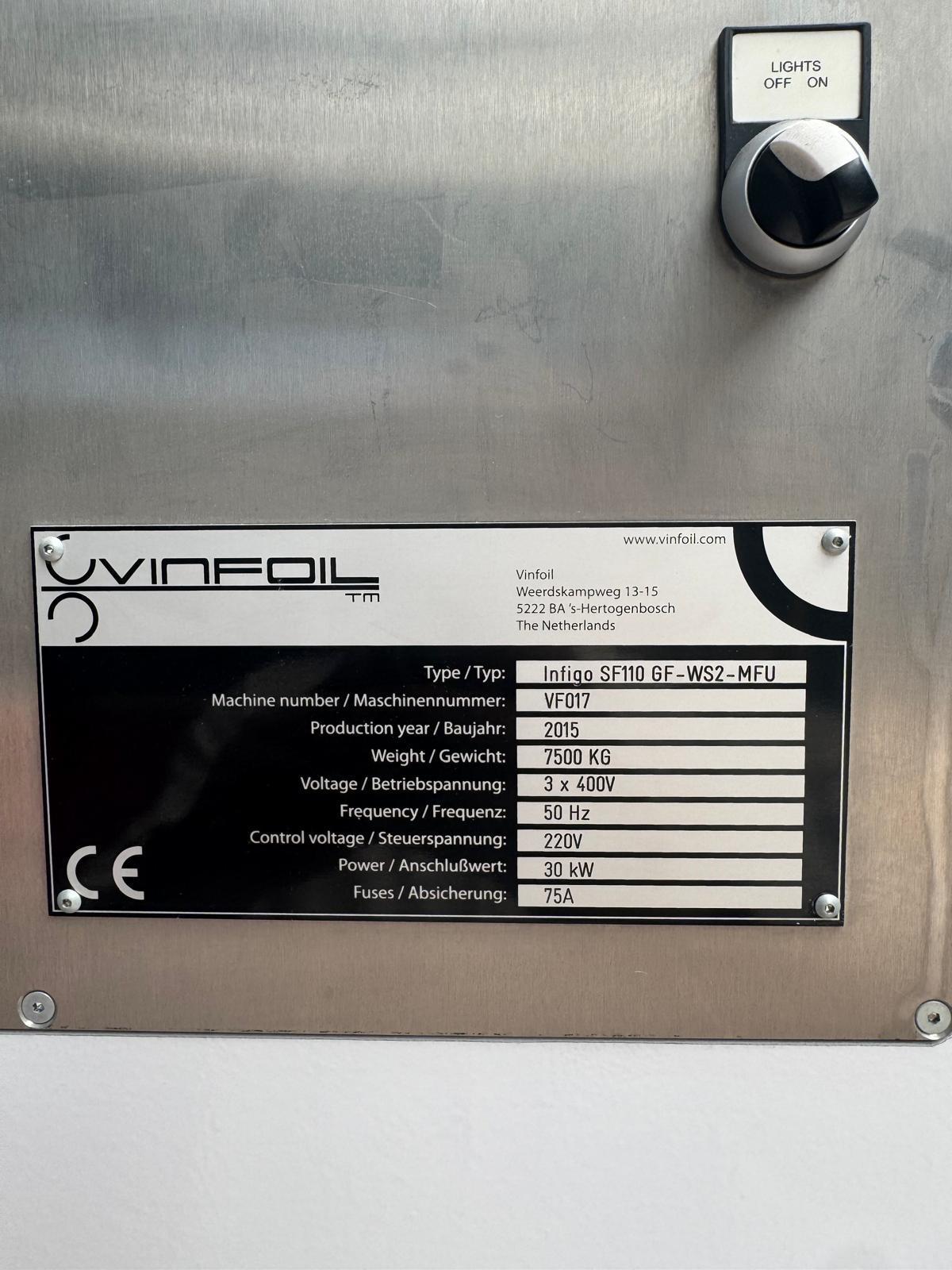

Model Infigo SF110 GF-WS2-MFU<>Foil Loading Station (FLS) STANDARD<> In this unit, the operator can prepare, during production, the next job.<> Changing the reels takes place at ground level, which ensures a very easy and safe<>operation<> Special dancer roller for levelling the unbalance of the turning foil reel during the<>production with high speed and for a perfect web tension<> Electrical roll manipulator for easy loading and unloading the foil reels<> Vacuum bar to prepare the new foil reel for the automatic glue cycles<> During the automatic glue cycles the paper infeed of the press will be interrupted for<>maximum 1 minute.<>Cross Section (CS) STANDARD<> In the cross section the angle bars and the Web Splitting knives are integrated<> The angle bars can be moved laterally to position the sliced webs at any location<>on the printed sheet.<> Motorized foil infeed system from Foil Loading Station to the Cross Section<>Direct Foil Drive (DFD) STANDARD<> With the DFD (Direct Foil Drive) rolls the foil web speed is controlled by servo<>motors – these motors are controlled by an encoder integrated into the printing<>press to ensure a very precise synchronization of the foil web with the speed of the<>printing press<> Electronically adjustable web tension<>Web Splitting (WS) STANDARD WITH 1 KNIFE<> With this technology foil consumption can be reduced by 65%<> The foil web can be split up to a maximum of 5 webs. The width of each web is<>adjustable. The total width of the foil core is the total of all sliced webs.<>1 knife is delivered standard. Option up to 4 knives<> Automatic foil changeover still available<>Multiple Foil Use (MFU®) STANDARD<> MFU® is redirecting the cold foil web back into the printing nip after transferring<>parts of the metallic layer for the first time. With this technology a foil web can be<>used up to 3 times to generate optimal utilization of the cold foil reel.<> The use of MFU® can reduce the cold-foil consumption up to 85 %<> 2 MFU® decks with horizontally movable guiding rods for lateral adjustment of the<>foil webs position<> MFU® Decks can be moved in vertical direction for circumferential adjustment of<>the foil web position<> Automatic foil changeover still available<>Foil Waste Cutter (FWC) STANDARD<> After the printing process, the used cold foil is exhausted to a pipe system and<>shred to small pieces<> The shred foil is exhausted from the process through a pipe system to the material<>separator<> No rewound cold-foil cores to dispose<>VIFOP® – Vinfoil Intelligent Foil Optimizing Program - STANDARD<>With this on-line software, foil consumption is calculated by just uploading the pdf with the<>layer of the cold foil.<>Very useful for management and prepress.<>With this data the Vinfoil Infigo® SF110 is automatically set<>Specifications Vinfoil Infigo® SF110GF<>Power supply / air supply<> Power voltage 400 V / 50 Hz<> Power requirement 40kVA<> Fuse protection at 400 V 3 x 63A<> Air supply 8 bar<> Air flow rate (including MFU®) 1.440 ltr/min<> For each extra WS system +360 ltr/min<>Compressed air quality according to ISO 8573/1<> Filtration on solid parts class 4<> Filtration on oil class 4<> Dry air class 4<>General specifications<> Total length (foil loading side) 2500 mm<> Total width 1850 mm<> Total height 4000-4600 mm<>(depending on type machine and elevation height)<> Total net weight 7000 kg<>Advice for ceiling height<>The minimum space above the printing units of the press required for the installation of the<>Vinfoil Infigo® SF110GF must not underrun 2500 mm.<>Specifications cold foil reels<> Maximum foil roll diameter 450 mm<> Foil core diameter 6“<> Maximum foil width in loading station 1100 mm<> Minimum foil width in loading station 300 mm<> Minimum foil width after the cutting device (optional) 100 mm<>Specification reel cores<> Basic material Laminated paper core<> Core winding geometry Spiral<> Min. core thickness 13 mm<> Moisture content according to DIN 11093--3 at 130°C 8%<> Radial pressure resistance Up to 340 N/cm<>Speeds<> Max. speed 18.000 sheets/hour<>(depending on press specs and settings,<>paper/carton, foil, adhesive and blankets)<> Maximal Quick Start speed of the printing machine<> at Web Splitting 3.000 sh/hr<> at MFU® 3.000 sh/hr<> at full web 5.000 sh/hr<>Specifications air filter system<> Filter system (L x W x H) 1085x1160x3232 mm<> Power voltage 400 V / 50 Hz<> Total power supply 7,5 kW<> Air supply 8 bar<> Air consumption 3,5 l/min<> Maximum tube length between Vinfoil and the filter system 25 m<> Total net weight filter system 1500 kg<>Material Separator with frame<> Material separator with frame (L x W x H) 2350x1200x3955 mm<> Power voltage 400 V / 50 Hz<> Total power supply 1,5 kW<> Weight 1000 kg<>Dismantled<>In stock
